Miller Classic Series User Manual

OM-252052 Page 5
SECTION 3 − OPERATING INSTRUCTIONS

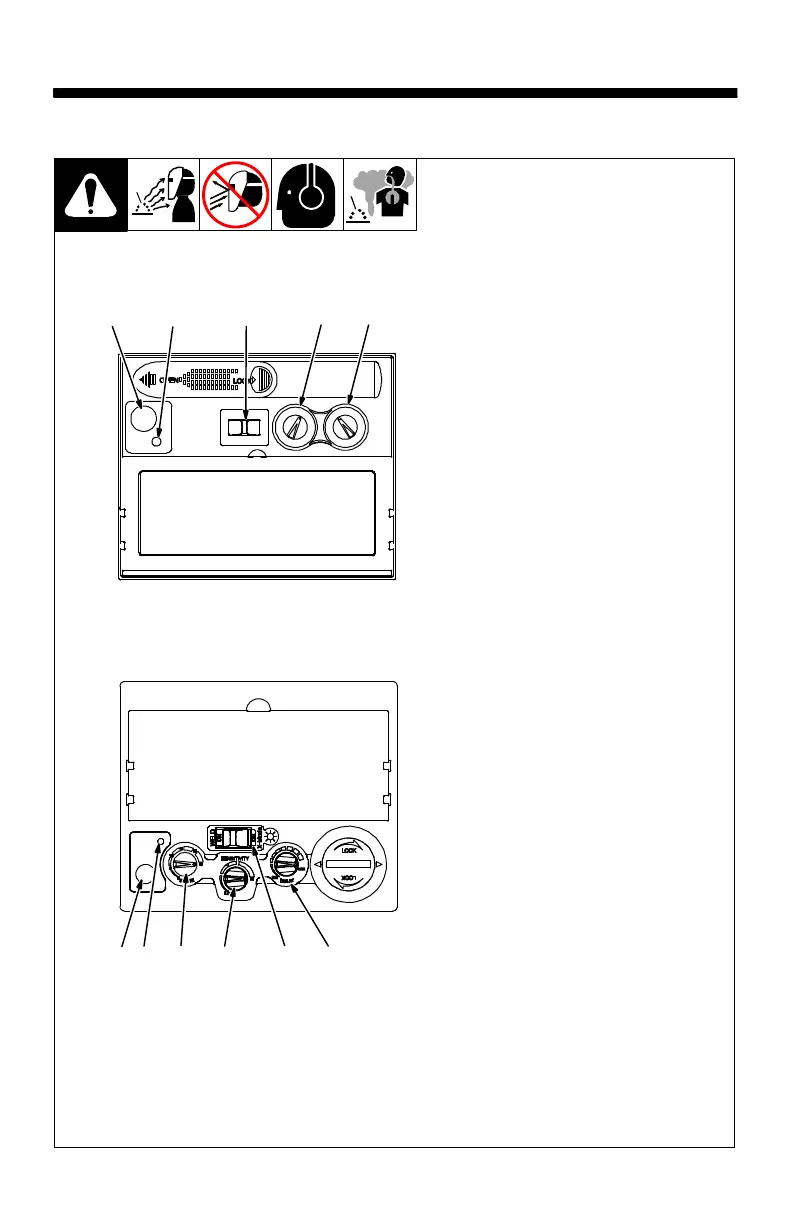

3-1. Helmet Controls
 Four different lens assemblies are
shown. Refer to the illustration that
matches the lens on your helmet.
Variable Shade Helmet
1 Reset Button
(See Section 3-2)
2 Low Battery Indicator
(See Section 3-2)
3 Lens Delay Control (See Section
3-4)
4 Variable Shade Control
(No. 8 − 12) (See Section 3-5)
5 Sensitivity Control
(See Section 3-6)
1 23 45
Variable Shade
Lens Assembly
VSi Lens Assembly
67 8 9 10 11
VSi Helmet
6 Reset Button
(See Section 3-2)
7 Low Battery Indicator
(See Section 3-2)
8 Variable Shade Control
(No. 8 − 13) (See Section 3-5)
9 Sensitivity Control
(See Section 3-6)
10 Mode Control (See Section
3-3)
11 Lens Delay Control (See
Section 3-4)

Miller Classic Series Specifications

General

Arc Sensors	2
Product Line	Classic Series
Manufacturer	Miller Electric
Category	Welding Accessories
Type	Auto-darkening
