Miller M-10 User Manual

OM-1035 Page 3

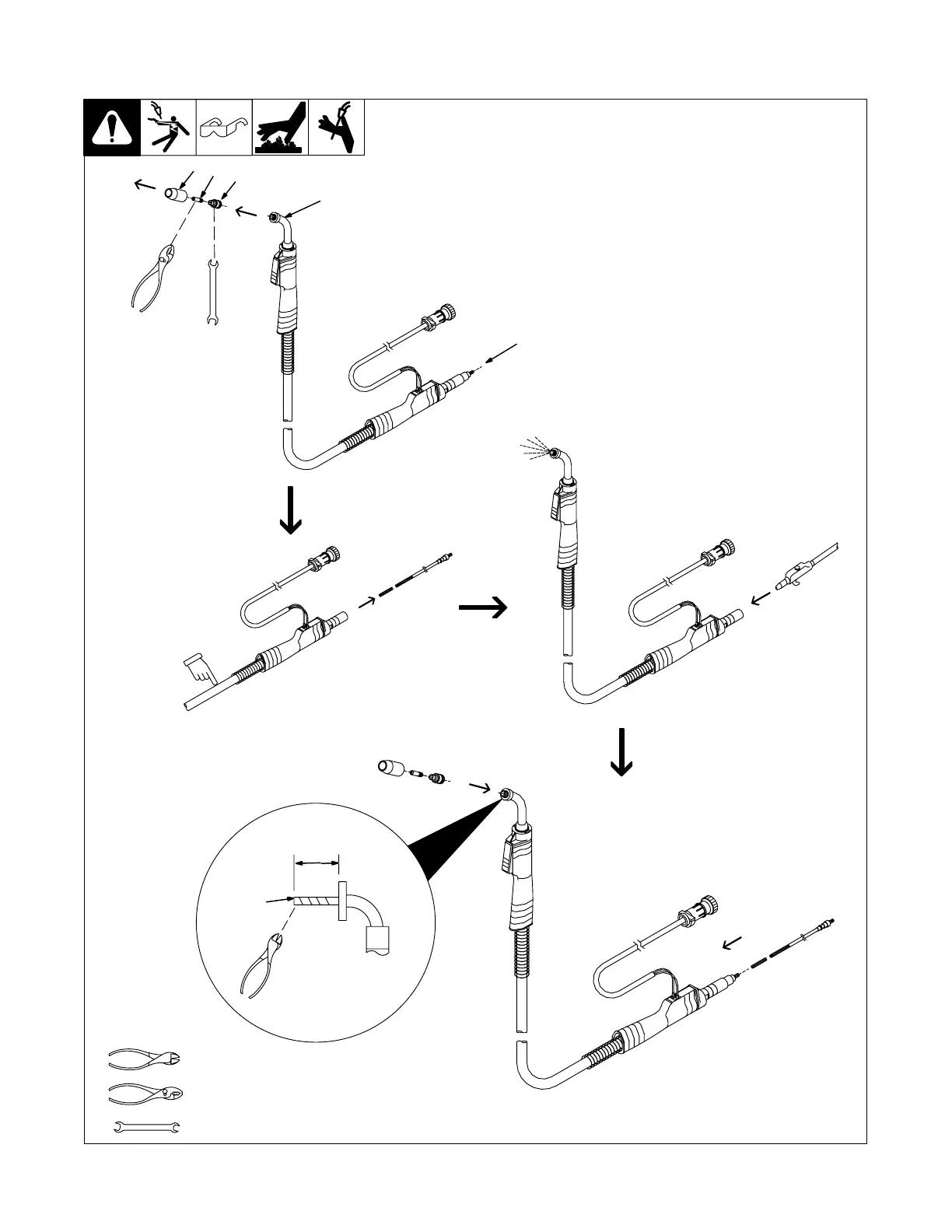

5. Removing Nozzle, Contact Tip, And Adapter, Changing Liner, And Cleaning Gun
Casing
Ref. ST-800 797-C
Y Turn off welding power
source/wire feeder.
1 Nozzle
2 Contact Tip
3 Adapter
. Wire size stamped on tip –
check and match wire size.
Head
Tube
Tools Needed:
3/8 in (7/16 in for M-25 and M-25M)
Lay gun cable out
straight before installing
new liner.
Remove nozzle,
contact tip, and
adapter.
Unscrew and
remove liner.
Blow out
gun casing.
Cut off wire and disconnect
gun from feeder.
3/8 in
3/4 in
(20 mm)
Liner
Stickout
Install
Liner
. Thread wire according to
welding power source/wire
feeder manual.
Reassemble gun in
reverse order from
taking it apart.
1
2
3
