OM-355 Page 13
2-10. Electrical Service Guide
All values calculated at 40% duty cycle.
NOTE
Input Voltage 230
Input Amperes at Rated Output 67
Max Recommended Standard Fuse Or Circuit Breaker Rating In Amperes
100
Min Input Conductor Size In AWG/Kcmil
8
Max Recommended Input Conductor Length In Feet (Meters)
166 (51)
Min Grounding Conductor Size In AWG/Kcmil
8
Reference: 1996 National Electrical Code (NEC) S-0092-J

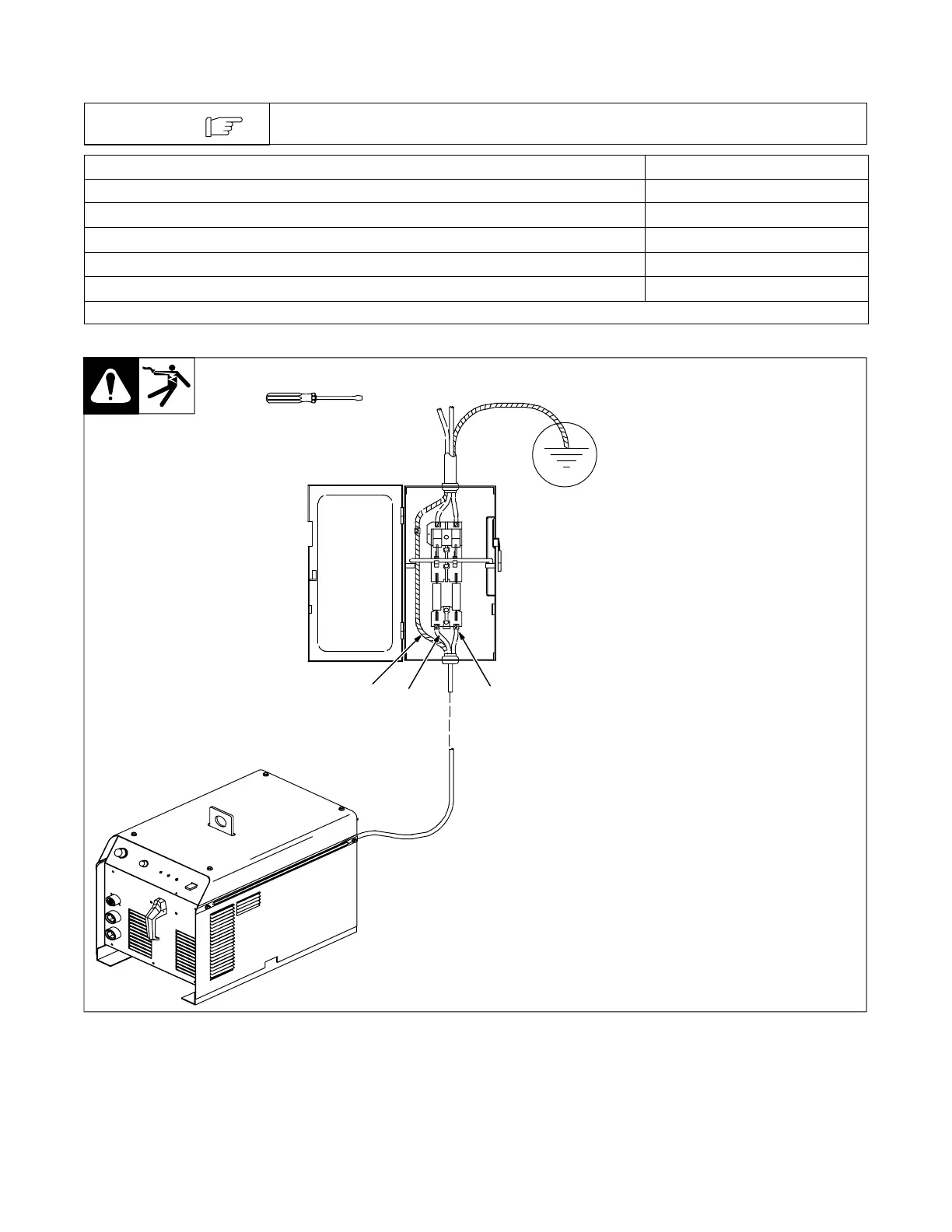

2-11. Connecting Input Power
ST-802 238
Tools Needed:
Y Have only qualified persons
make this installation.
Y Special installation may be
required where gasoline or
volatile liquids are present –
see NEC Article 511 or CEC
Section 20.
Units come equipped with input
power cord for installation into line
disconnect device. Select type and
size overcurrent protection using
Section 2-10.
GND/PE
Connect first.
GND/PE
L1 L2
To Next Page
