3-8. Typical Lens Adjustment Procedure
Lens assembly displays prior
settings when turned On. Re-
tained settings are not shown
in example.
In the Grind mode the lens is a
fixed shade No. 3. No lens ad-
justments are possible.

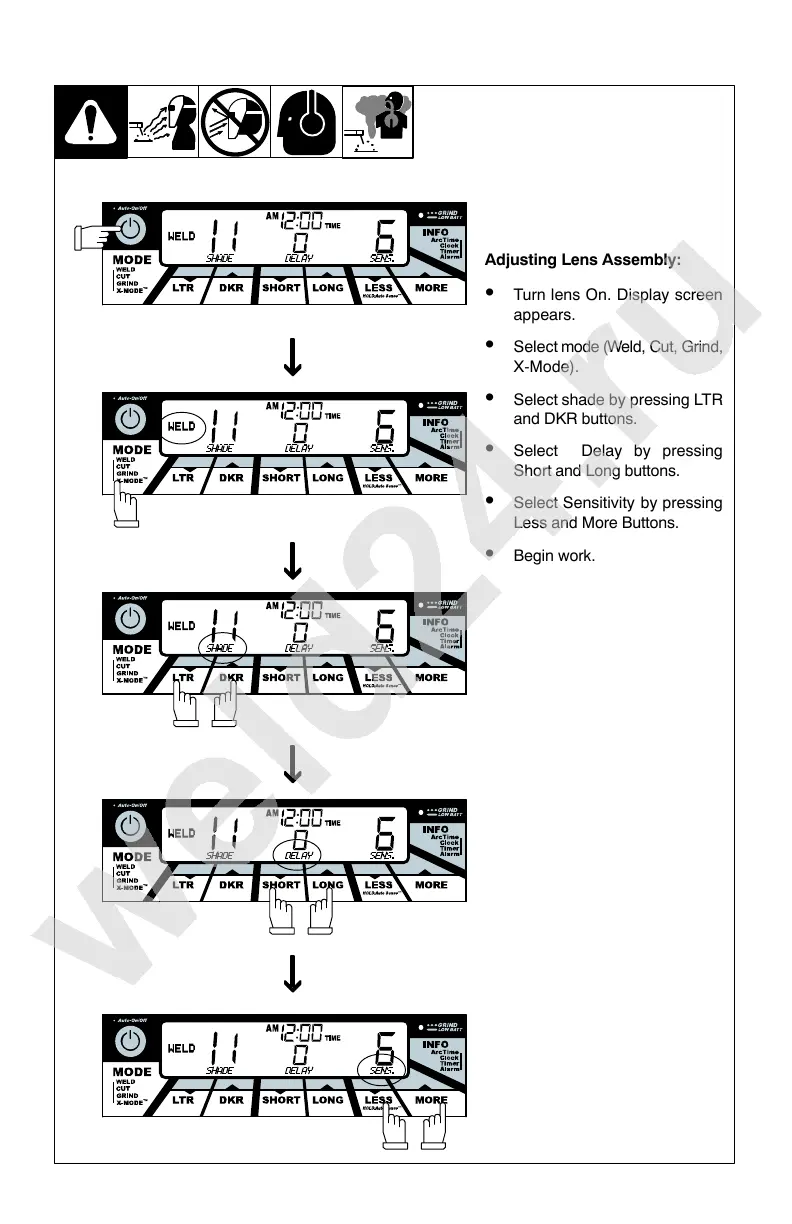

Adjusting Lens Assembly:
Turn lens On. Display screen
appears.
Select mode (Weld, Cut, Grind,
X-Mode).
Select shade by pressing LTR
and DKR buttons.
Select Delay by pressing
Short and Long buttons.
Select Sensitivity by pressing
Less and More Buttons.
Begin work.
