OM-236297 Page 14

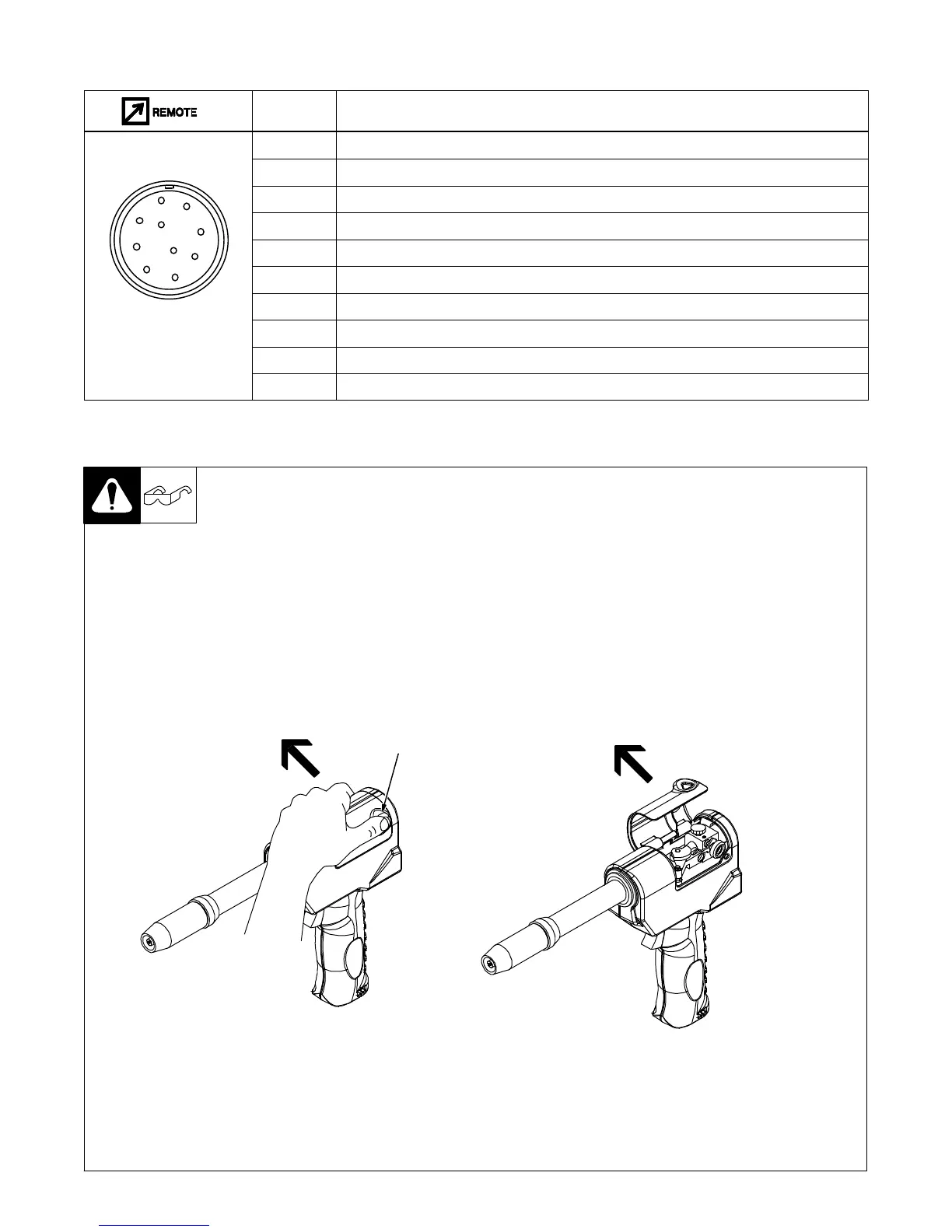

5-8. 10-Pin Plug Information
10
Pin* Pin Information
E
F
D
J
G
C
I
H
B
A
A Electrode sense lead
B Motor Common
G Trigger
C Motor 0 to +24 volts DC with respect to pin B
D Trigger
E Wire speed Ref. +9 volts DC
H Wire speed com
F Wire speed 0 to +9 volts DC with respect to pin H
J Gun sensing resistor with respect to pin H
I Not used
5-9. Removing Top Cover Of Pistol Grip Gun
1 Top Cover Triangular Boss
Push up on triangular boss to open
door. Door hinges on handle.
To open door fully, push up on door
until it clicks into position.
. If door is pushed too far it will
separate from handle. If this
happens the door can be rein-
stalled.
Push door back into original posi-
tion to close.
802 528-C
