HOW TO USE THE KEYPAD AND THE LCD

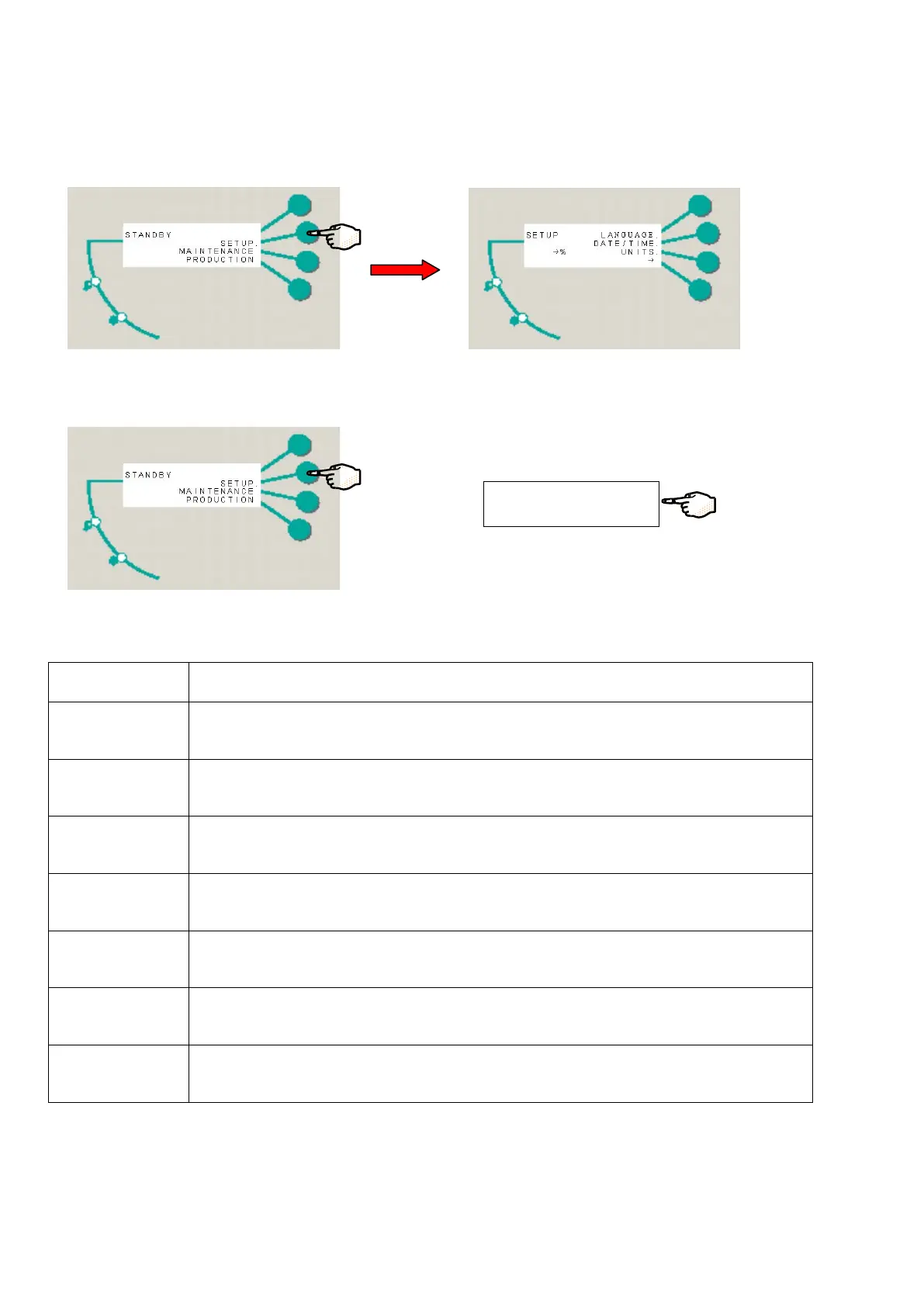

The Keypad and LCD are shown below. Press the Keypad Button lining up with the desired action. For example, if you wanted to
go from STANDBY Mode to SETUP Mode, you would press the Keypad as shown below.
In this manual, pressing a Keypad Button would be shown like this.
There are several symbols that are displayed on the Keypad. These symbols are explained below.
SYMBOL WHAT IT MEANS
PRESS AND RELEASE SYMBOL. Pressing the Keypad Button next to this symbol brings you
immediately to the next LCD Screen.
PRESS AND HOLD SYMBOL. Pressing the Keypad Button next to this symbol for 2-3 seconds brings
you to the next LCD Screen.
Pressing the Keypad Button next to this symbol brings you to the next LCD Screen within the same
software branch.
Pressing the Keypad Button next to this symbol exits the currently viewed software branch. It
brings you back to the Root Menu.
Pressing the Keypad Button next to this symbol toggles between various parameters being
displayed.
+
Pressing the Keypad Button next to this symbol increases the value of the currently displayed
parameter.
-
Pressing the Keypad Button next to this symbol decreases the value of the currently displayed
parameter.
