Q-POD Unit
Assembling
Follow the steps below to assemble the Q-POD Unit.

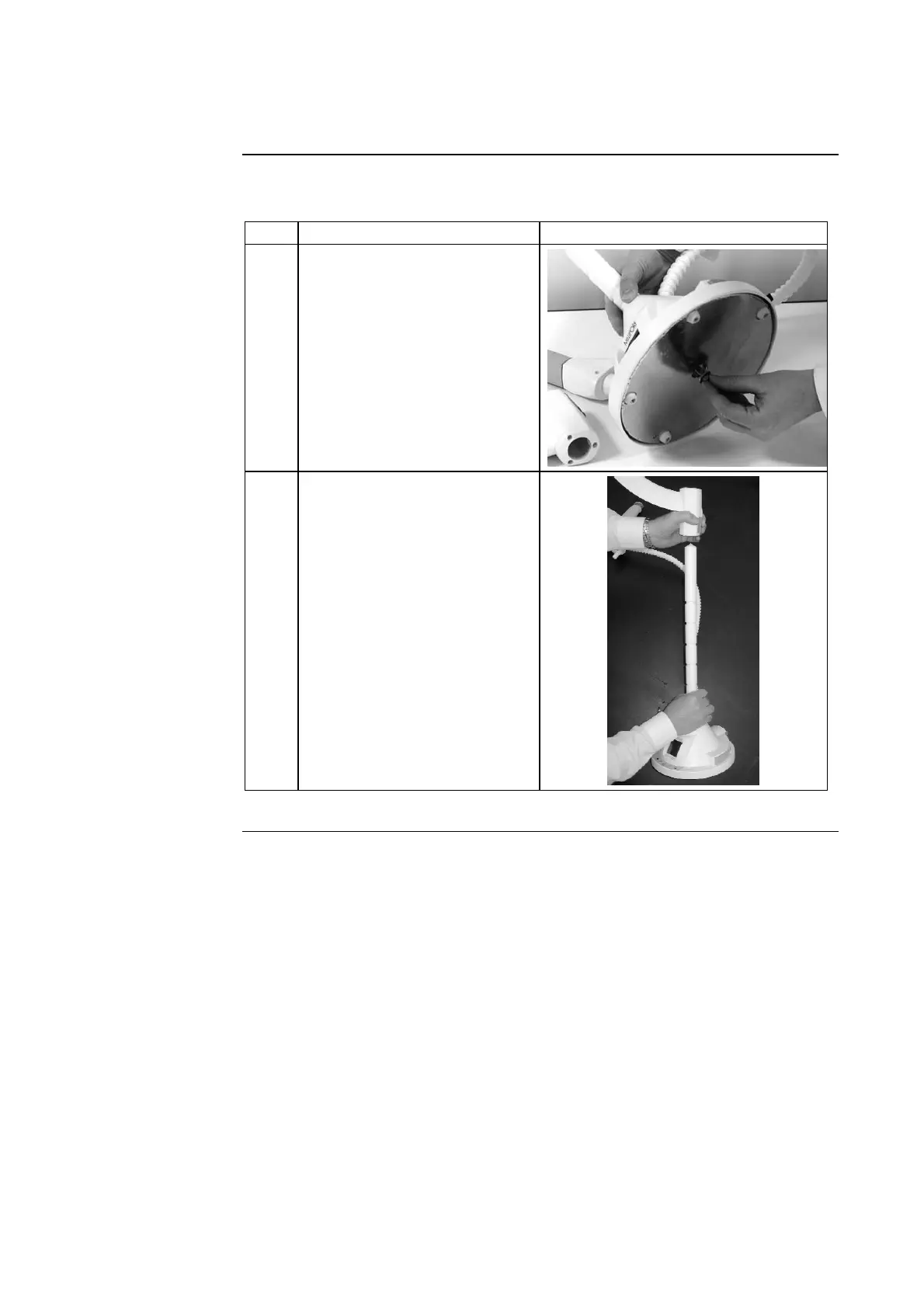

Step Action Result
1
• Open the Q-POD Unit box.
• Locate the Q-POD Base
and the Q-POD Mast.
• Screw them together.
2
• Locate the Q-POD Arm.
• Press on the locking handle
and slide the Q-POD Arm
onto the Q-POD Mast.
• Note that the height can be
adjusted up or down.
Continued on next page
