PELLERIN MILNOR CORPORATIONPELLERIN MILNOR CORPORATION
BMP070030/2016533A

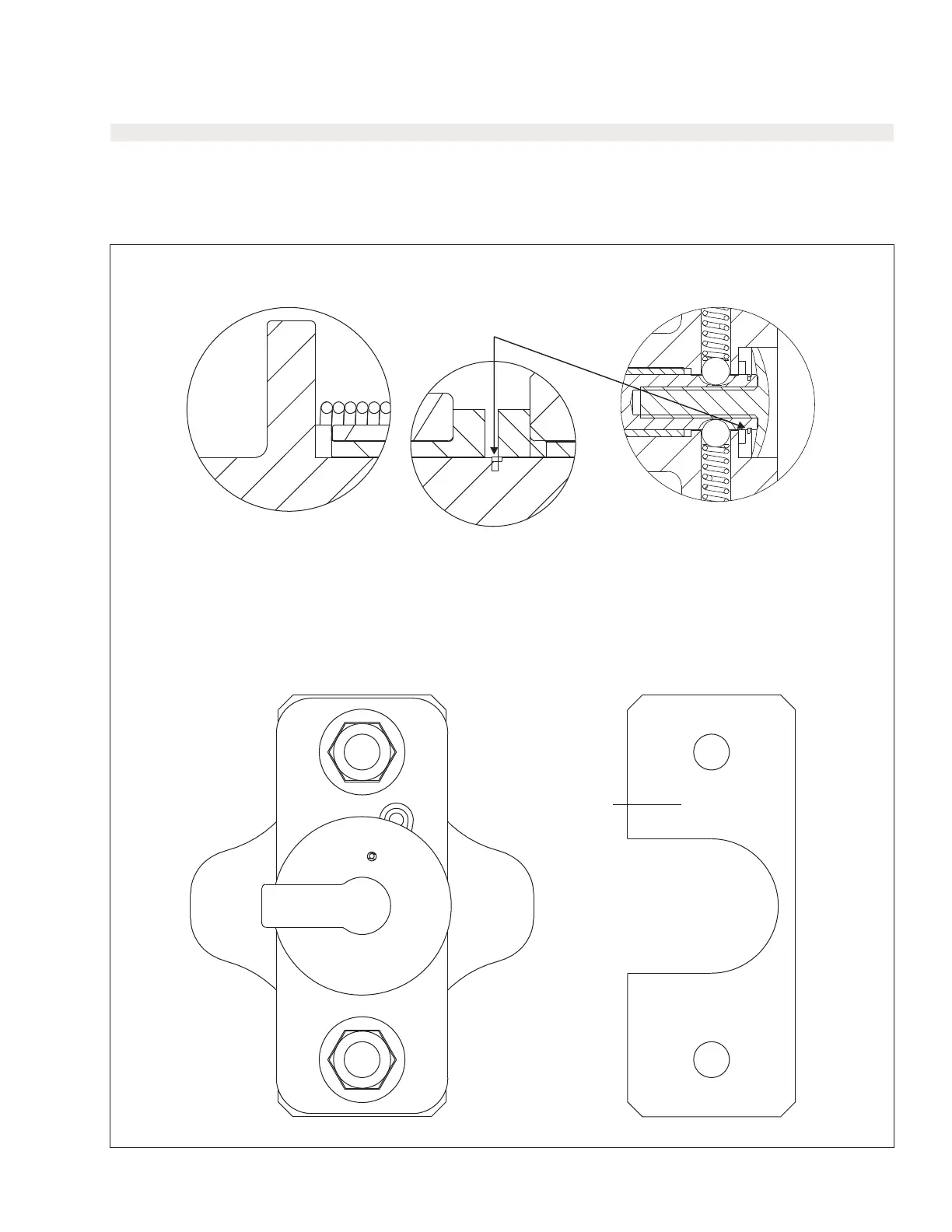

Door Handle and Lock Actuator
DETAIL A DETAIL B
DETAIL C
Add shims to make the latch looser. Remove shims to make the latch tighter. To
add shims, you will not have to remove the handle assembly. When you remove
or add the shims, always start with the thinnest shim.
Do not open the ring more than
necessary to get it on the shaft.
3 (.023)
3A (.015)
MCR12E5, MCR16E5, MCR18E4, MCR27E5 MCT12E5, MCT16E5, MCT18E4, MCT27E5
MWR12E/X/J5, MWR16E/X/J5, MWR18E/X4, MWR18J6, MWR27E/X/J5
MWT12E/X/J5, MWT16E/X/J5, MWT18E/X4, MWT18J6, MWT27E/X/J5
78
