Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the
"Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the
partslist to the illustration.

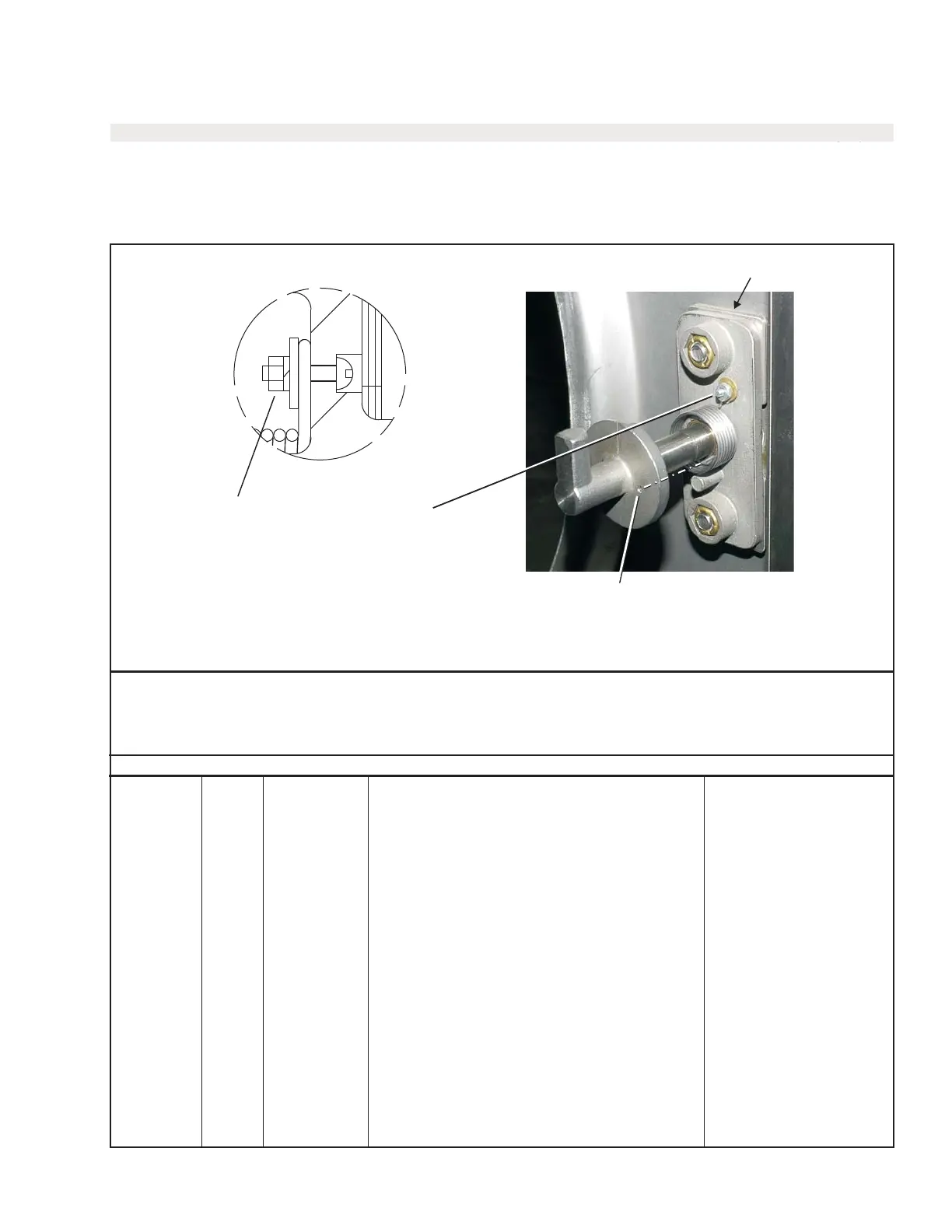

Parts List—Door Handle and Lock Actuator
----------------------------------------------------------------------------COMPONENTS-------------------------------------------------------------
all 1 98CMCR0925 ASSY=DR HNDL MECH
all 2 20C007 THDLOCKSEAL LCT#22221 CMPD10CC
all 3 02 04192 SHIM=DOOR MOUNT PLATE, 3022H
all 3A 02 04192A .015 SHIM=DOOR MNT PL,3022H7
DETAIL D
Insert the machine screw. Hook
the eye of the torsion spring onto
the screw. Add the flatwasher,
lockwasher, and nut. Tighten the
nut to hold the eye.
Put the free end of the spring into
this hole.
SHIMS 3,3A
BMP070030/2016533A
Door Handle and Lock Actuator
Page (3 / 3)
MCR12E5, MCR16E5, MCR18E4, MCR27E5 MCT12E5, MCT16E5, MCT18E4, MCT27E5
MWT12E/X/J5, MWT16E/X/J5, MWT18E/X4, MWT18J6, MWT27E/X/J5
MWR12E/X/J5, MWR16E/X/J5, MWR18E/X4, MWR18J6, MWR27E/X/J5
