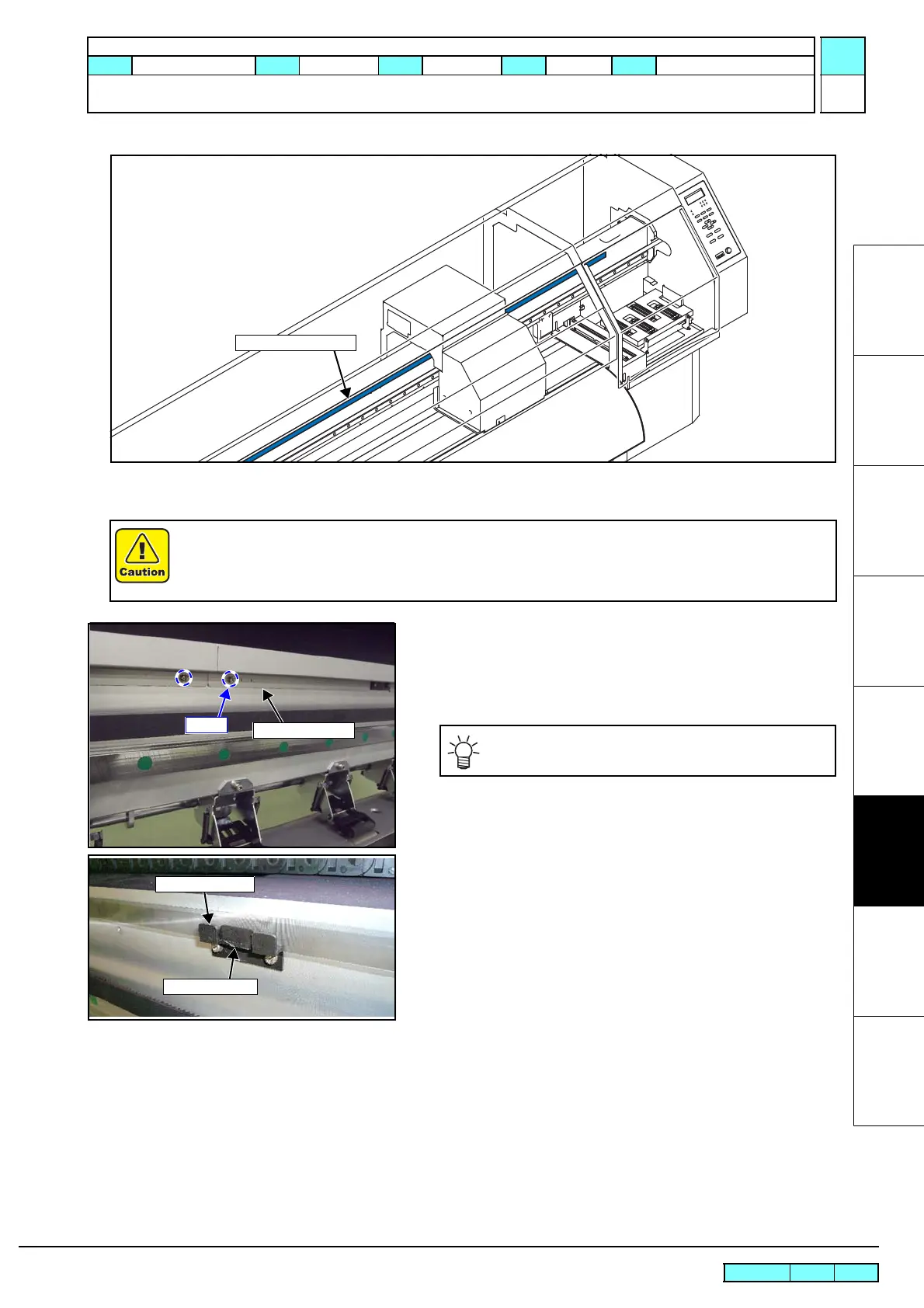

6.3.3 Linear Encoder Scale
 Work procedures
1. Open the following covers.
• Left mentenance cover
• Front cover
• Right mentenance cover
2. Remove the scale cover (x3).
3. Peel off a double sided tape of the scale holder.
Turn the main power OFF when turning the power OFF. It is very dangerous if sleep mode func-
tions mistakenly during the operation.
While at work, be sure not to attach fingerprints or oil to the linear encoder scale. Also, pay atten-
tion not to break or scratch it. (If contaminated, clean the scale with a neutral detergent.)
Linear Encoder Scale
Scale cover (x3)
Screw
If the inside of machine is dark, it is recommended to
turn on the drawing surface light switch.
Scale holder
Double sided tape
MAINTENANCE MANUAL > Disassembly and Reassembly > Drive System > Linear Encoder Scale
