Note for Media Setting
Note for setting roll media or leaf media on “Setting a media” in Operation Manual Chapter 2 is described below.
Read this note and fully understand, and then set media correctly.
(1) Set media so as not to tilt.
⇒ Roll media : Operation Manual Chapter 2
Pull a roll media out softly until the media is locked lightly.
On the locked position, pull some places of the media lightly and pull it out evenly.
When pulling the media, do not unlock.
After checking, push the clamp lever down.
(2) Check the position of media press.
⇒ Roll media : Operation Manual Chapter 2
Leaf media : Operation Manual Chapter 2

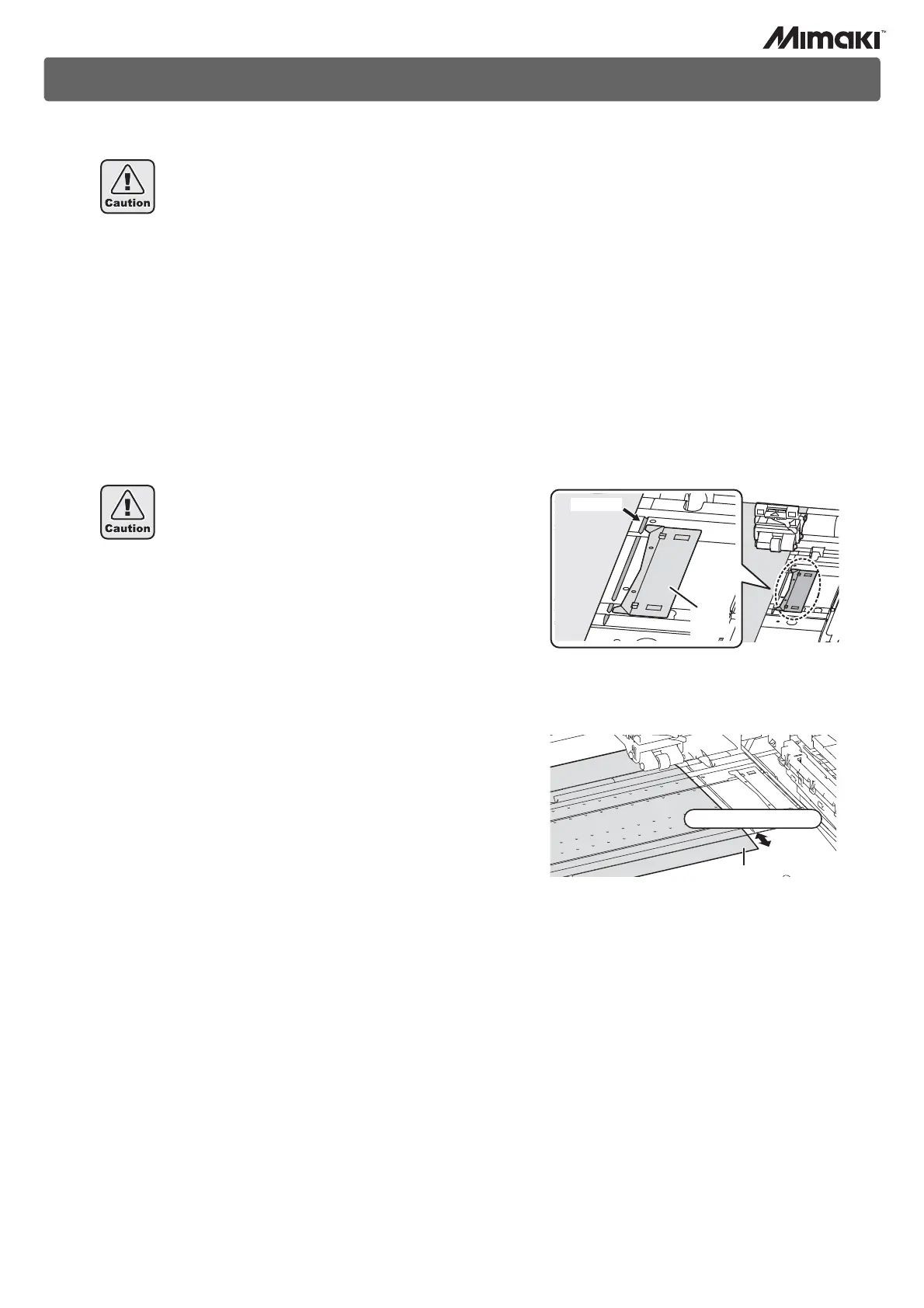

When the media is correctly set, the media press on the right is set as the figure below.
• Wrong setting of media could break the head.
• When installing the media, align the media’s right
edge with the groove in the platen. Placing the
media rightward of the groove will make it rise up
if it moves obliquely, and this could cause damage
to the head.
• If a media is misaligned to the right/left from the fixed position, an error message “MEDIA SET
POSITION R” is displayed. Set the media again.
• The media must lie on the black part of the "after
cover", with at least 40 mm of the media lying off
the edge of the black part. If it is shorter than that,
it may not be able to perform the media detection.
•
