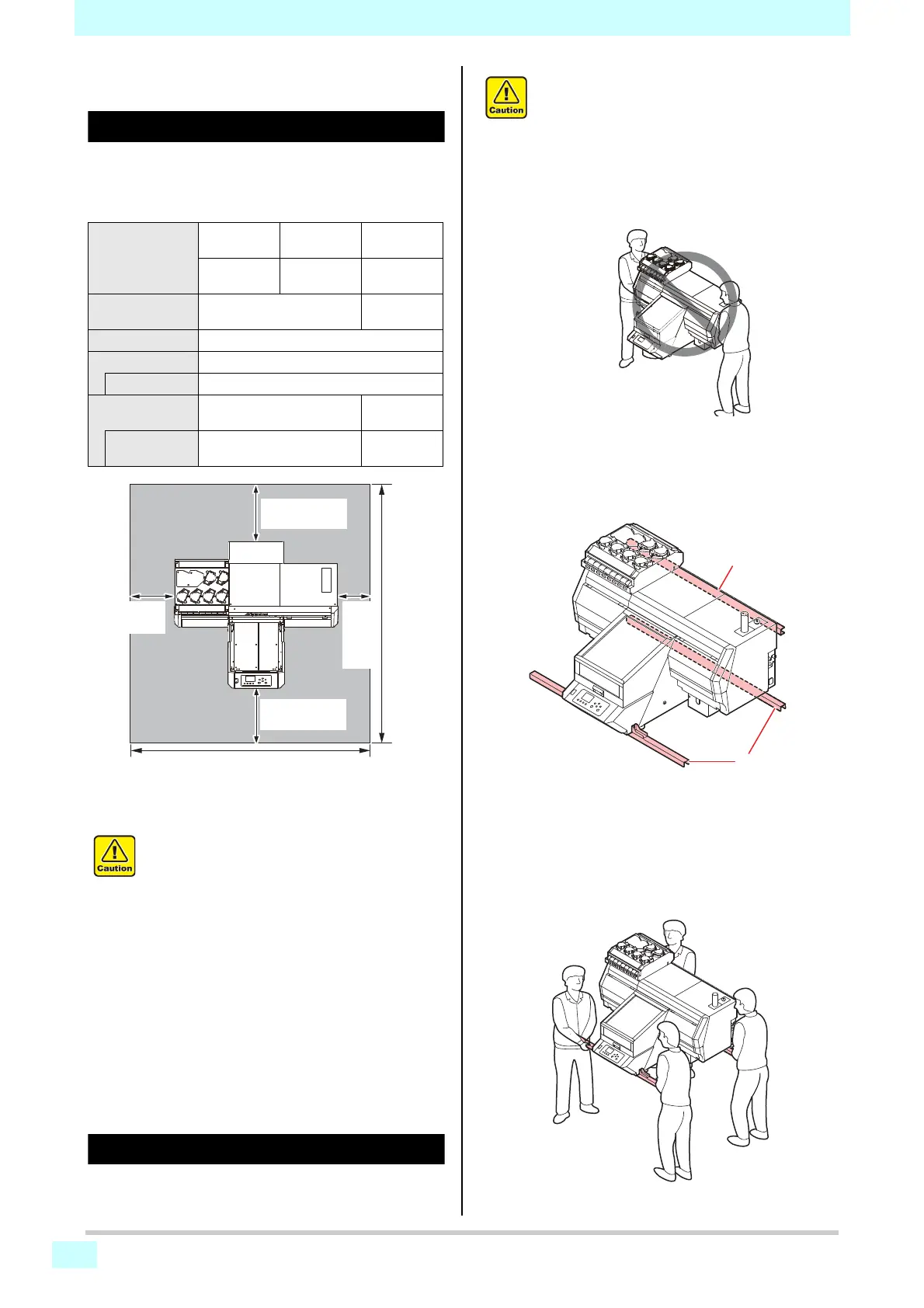

Chapter 1 Before Use
1-2
Installing the machine
Where to install the machine
Secure sufficient space for installation before assembling
this machine.
Decide the place considering the size of the machine and
a space required for printing.
Moving this machine
Move this machine as follows when this machine is
required to move on the step-free same floor.
Before moving this machine, install the
handles for transporting. (two places)
Insert the handles into this machine, and fix them
tightening screws.
For safety, be sure to work it with more than 4
people.
Do not push the cover to move this machine since the
cover may be deformed. Be sure to hold the handles
for transporting when moving the machine. Comply
with local regulations when moving the product.
Model
UJF-
3042MkII
UJF-
3042MkII EX
UJF-
6042MkII
UJF-
3042MkII e
UJF-
3042MkII EX e
UJF-
6042MkII e
Width 1,355
mm (53.3 in)
1,665mm
(65.6 in)
Depth 1,290mm
(50.8 in)
Height *
incl. bottles
936 mm
(36.9 in)
incl. dedicated stand
1,567 mm
(61.7 in)
Total Weight
150kg
(330.7lb)
165kg
(363.8lb)
incl. dedicated stand
185kg
(407.9lb)
200
kg
(440.9lb)
• When you usually use photographic fixer, do not
install this machine in a room filled with vapor of
photographic fixer. If you install this machine in
such a room, ink adhering to the head hardens
and it may cause image quality defect that cannot
be improved even if you perform head cleaning
many times and may cause nozzle clogging.
• Besides photographic fixer, if you leave this
machine in an environment where acidic vapor
(acetic acid, muriatic acid, etc.) is generated, the
same phenomenon occurs.
• Do not use this machine in environments where
cutting fluid or other volatile substances are
present in large quantities (e.g., amines, modified
amine alcohol).Additionally, keep this machine,
ink, and maintenance kit away from such
environments.Disregarding this precaution may
result in nozzle clogging.
200 mm
or more
(7.9 in or
more)
UJF-3042MkII/3042MkIIEX/3042MkII e/3042MkIIEX e:
1,955 mm or more( 77.0 in or more )
UJF-6042MkII/6042MkII e:
2,265 mm or more( 89.2 in or more )
2,090mm or more
(82.3 in or more)
400 mm or more
(15.7 in or more)
500 mm or more
(19.7 in or more)
500 mm or more
(19.7 in or more)
• When moving this machine, take care not to give a
significant impact on it.
• When moving this machine, keep it as flatly as
possible. Do not move it on its side. It may cause
machine failure.
• The dedicated stand of this machine includes
leveling feet to secure the machine.
Before turning the power ON, make sure that the
printer body is fixed with the leveling feet.
The printer body may start moving during
operation if it is not fixed with the leveling feet.
Handles for
transporting
Handles for
transporting
