4. Example Four: Comparison of Waveforms
Module E(REC_A/ REC_B/ REC_C/ REC_D) can be used to compare standard signal & unknown signal.
Please operate according to following steps:

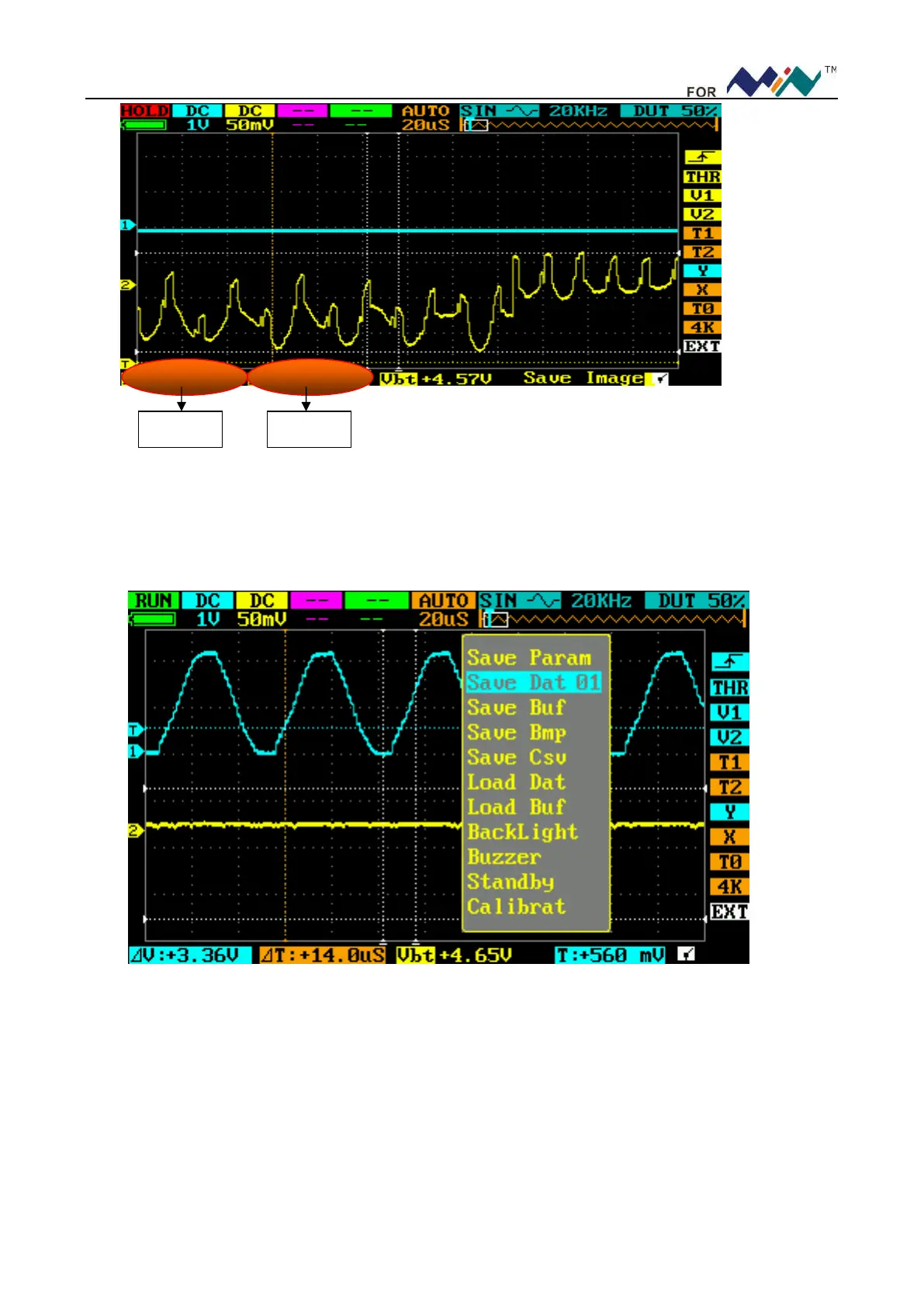

Input standard signal to CH_A, press (■), choose Save Dat 01 to save waveform, as in Figure 4.1:
Input unknown signal to CH_ A, in E position choose REC_A, press (■), choose Load Dat, as Figure 4.2:
Move P position Y to adjust horizontal level, to compare waveforms, as in Figure 4.3:
Figure 4.1
Vpp Cycle
