Min DS203 - Functions of Channel Area

7
FPS Frames Per Second
Vpp Peak-to-Peak Voltage
Vdc Direct Current Voltage
RMS Average Value of Voltage
Max Maximum Voltage
Min Minimum Voltage
FRQ Signal Frequency
CIR Signal Cycle
DUT Duty factor
TH Monocycle High Level Time
TL Monocycle Low Level Time
Vbt Battery Voltage

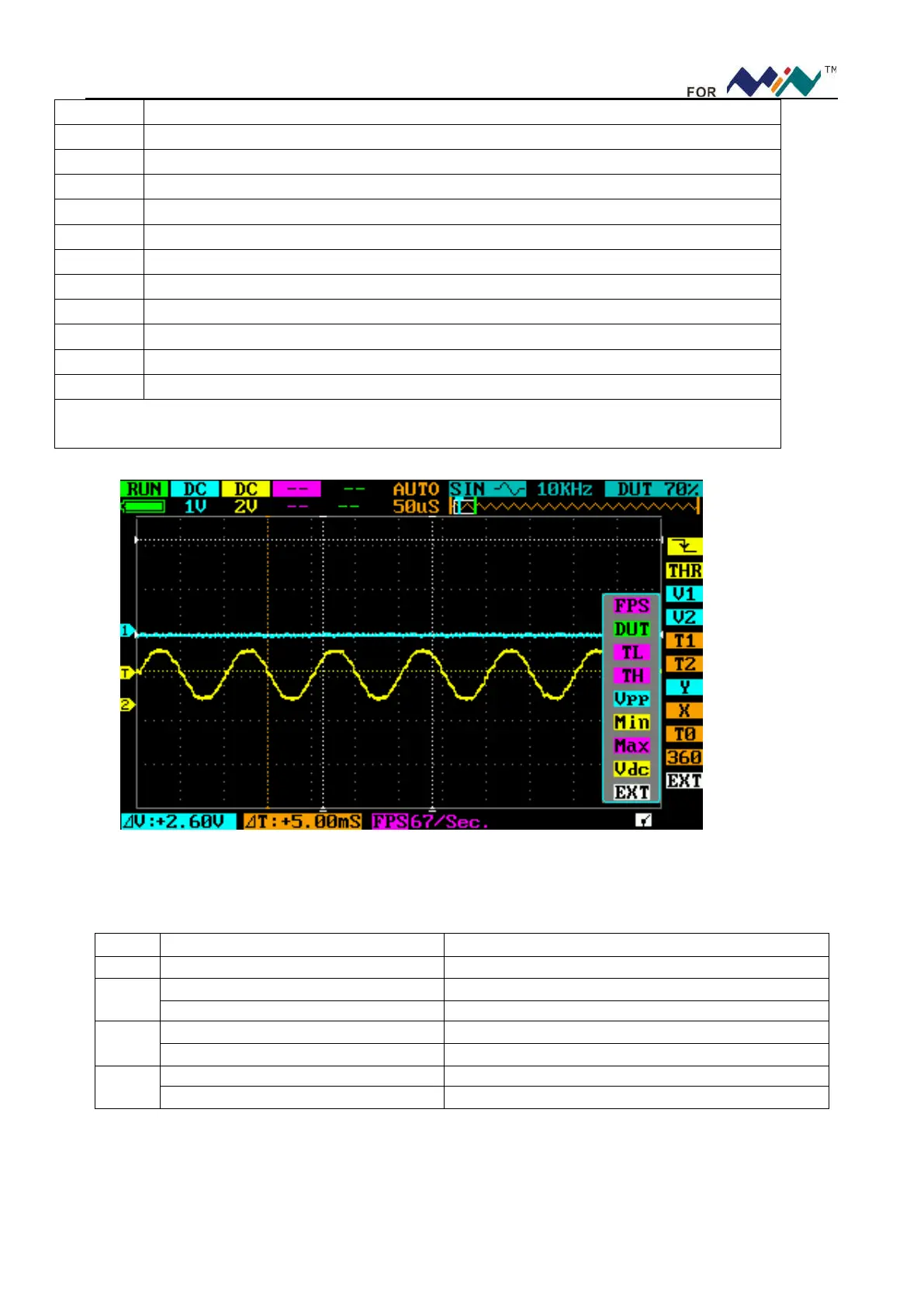

There are 12 parameters; Short press(●) shows only 8 parameters; Press(●)longer and scroll (―…＋)to
select parameter, press (―…＋) to choose color (channel), press (…)or choose EXT to exit; as below:
---------------------------------------------------------------------------------------------------------------------
2.2. Functions of Channel Area
The table below shows the detailed introduction of the functions of menus in channel area：
Menu Item
Function(Operate: Scroll（―…＋）)
A
RUN/HOLD
(Running Mode
）
RUN/HOLD, show voltage
B AC/DC/-- (Channel A)AC coupling/DC coupling/hide
50mV—10V (stepping in 1-2-5mode）
voltage per grid
C
AC/DC/--
(Channel B)AC coupling/DC coupling/hide
50mV—10V
（
stepping in 1-2-5mode
）
voltage per grid
D
DC/--
(Channel C) DC coupling/hide
--
----
