VIII Oscilloscope Familiarization
1. Interfaces & buttons.
 Front view, left→right: RUN/HOLD(||), CALIBRATE (■), PRESET (●), SAVE WAVE(▲)、
NAVIGATOR A(―…＋), NAVIGATOR B(…).
Left view, top→bottom:Wave output[WAVE OUT],analog channel B[CH_B], analog channel A[CH_A].
Right view, top→bottom: Digital channelC [CH_C], digital channelD [CH_D], USB port, power switch.
----------------------------------------------------------------------------------------------------------------------

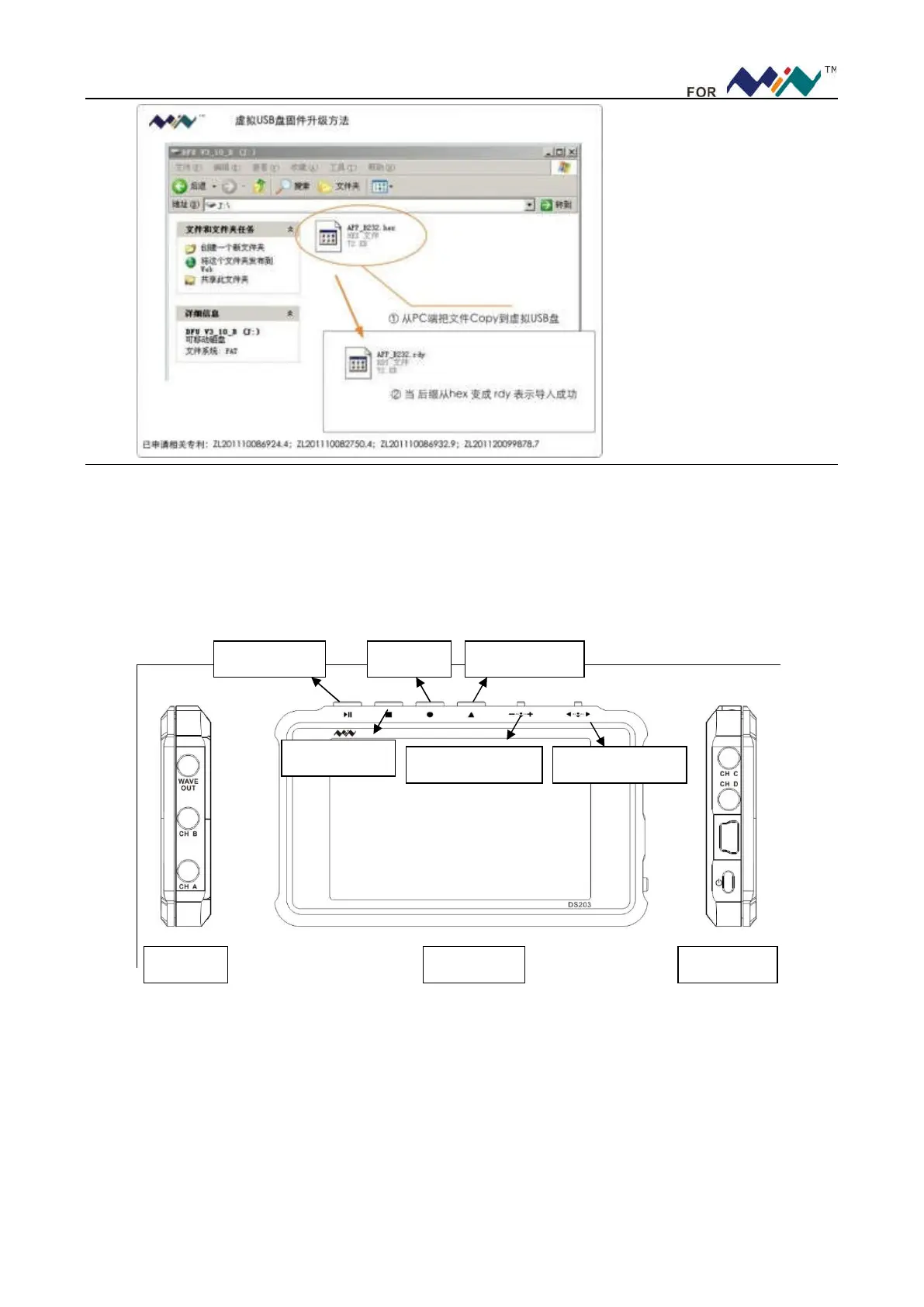

front view left view right view
RUN/HOLD PRESET SAVE WAVE
CALIBRATE
NAVIGATOR A NAVIGATOR B
