Mindeo ES4650 - 2-3 Typical Input;Output and Circuitries

8

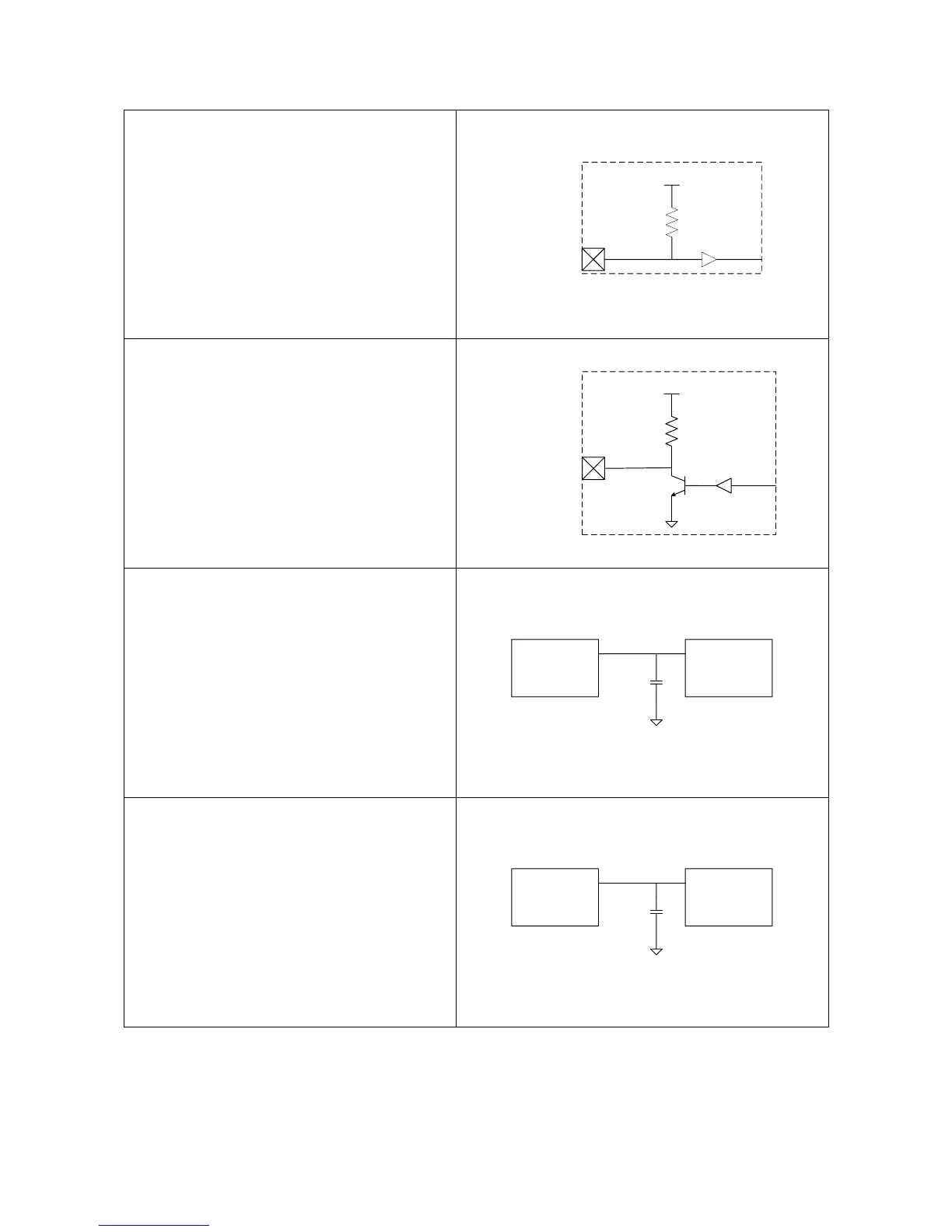

2-3 Typical input/output, LDO external, and DC/DC circuitries
Input: each input IO pin is internally pulled up
by a 100K Ohm resistor (VCC=3.3V).
Min.
Max.
V
inL
-0.3V
0.7V
V
inH
2.4V
3.6V
100K
VCC
Embedded
scanner
INPUT
Output: each output port is an open-drain pad
with a 100K Ohm pull-up resistor and the
maximum sink current is 100 mA (VCC=3.3V).
100K
VCC
Embedded
scanner
OUTPUT
External LDO circuitry: it is recommended to
apply low noise LDO (Low Dropout Voltage)
regulators.
LDO
Regulator
Embedded
scanner
22u
External switching regulator circuitry:
Min.
Max.
Switching Frequency
1 MHz
-
Ripple V
P-P
-
50 mV
Switching
Regulator
Embedded
scanner
22u
