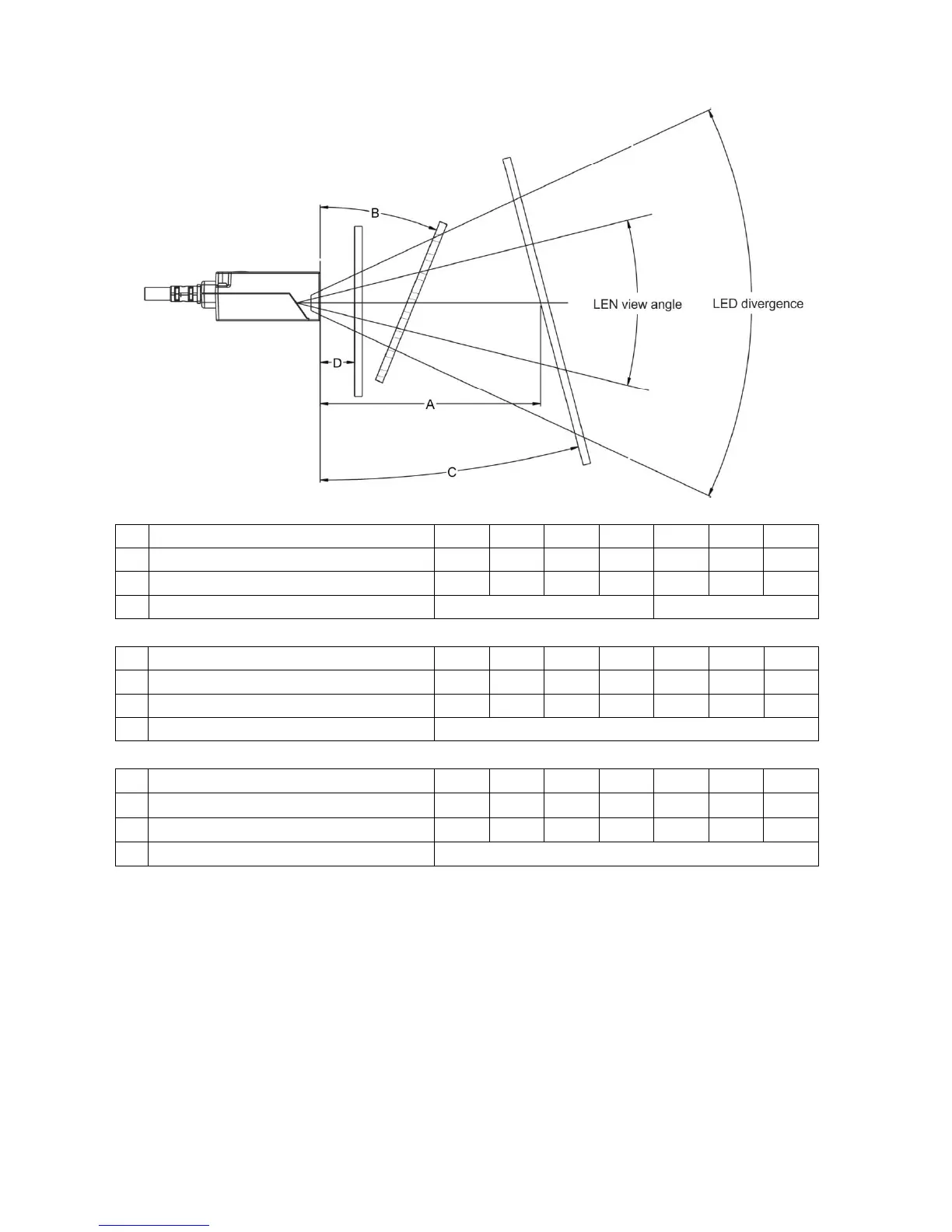

2-4-2 Scan window positioning
A
Scan Window Distance from Scanner (mm)
0
1
2
3
4
5
6
B
Max. Positive Angle
0°
0°
0°
0°
23°
23°
23°
C
Min. Negative Angle
0°
0°
0°
0°
23°
23°
23°
D
Placing the scan window vertically is feasible?
YES
NO
A
Scan Window Distance from Scanner (mm)
7
8
9
10
11
12
13
B
Max. Positive Angle
23°
24°
24°
24°
24°
25°
25°
C
Min. Negative Angle
23°
24°
24°
24°
24°
25°
25°
D
Placing the scan window vertically is feasible?
NO
A
Scan Window Distance from Scanner (mm)
14
15
16
17
18
19
20
B
Max. Positive Angle
25°
25°
24°
23°
23°
22°
21°
C
Min. Negative Angle
25°
25°
24°
23°
23°
22°
21°
D
Placing the scan window vertically is feasible?
NO
Note:
1) The scan window is transparent. (Recommended)
2) The scan window should be high transparent & non-colored glass.
3) If the thickness of the scan window is less than 3 mm, then different thickness of the scan window will not effect
the performance of the scanner.
