6.6 Disassembling the Exergen TemporalScanner Themometer
Module (Optional)

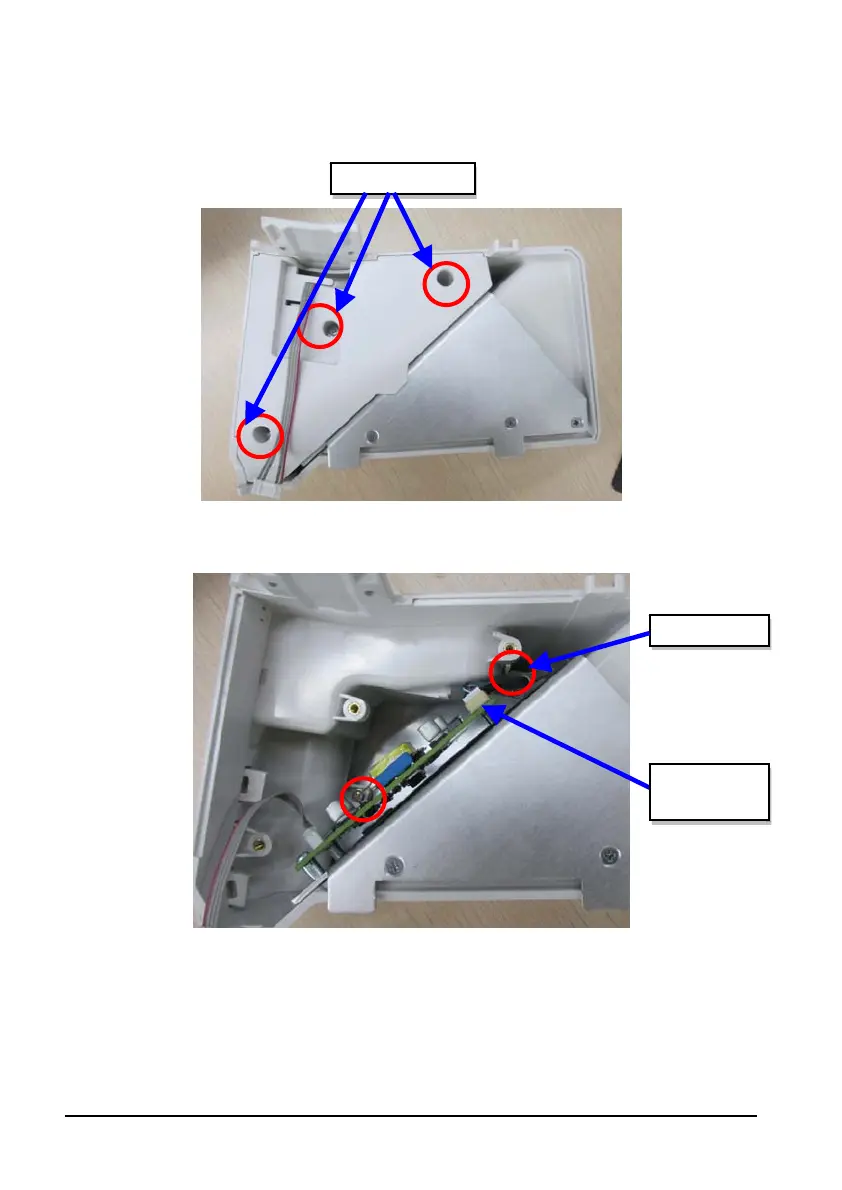

1. Unscrew three M3×6 screws, and then remove the panel.
2. Pull out the thermometer cable, unscrew two M3X6 screws, and then take out the
bottom panel.
M3×6 screws
M3×6 screws
Connection
cable
