BeneVision TD60 Quick Reference Guide
Connecting the Nonin SpO2 module
Initiate the SpO2 Measurement
1. Connect the sensor to the SpO2 module and the SpO2 module to the
TD60.
2. Select an appropriate sensor according to the patient size, and weight.
3. Prepare the SpO2 site in accordance with hospital policy.
3. Apply the sensor to the patient.
The SpO2 measurement will display when the SpO2 module acquires a
signal from the patient.

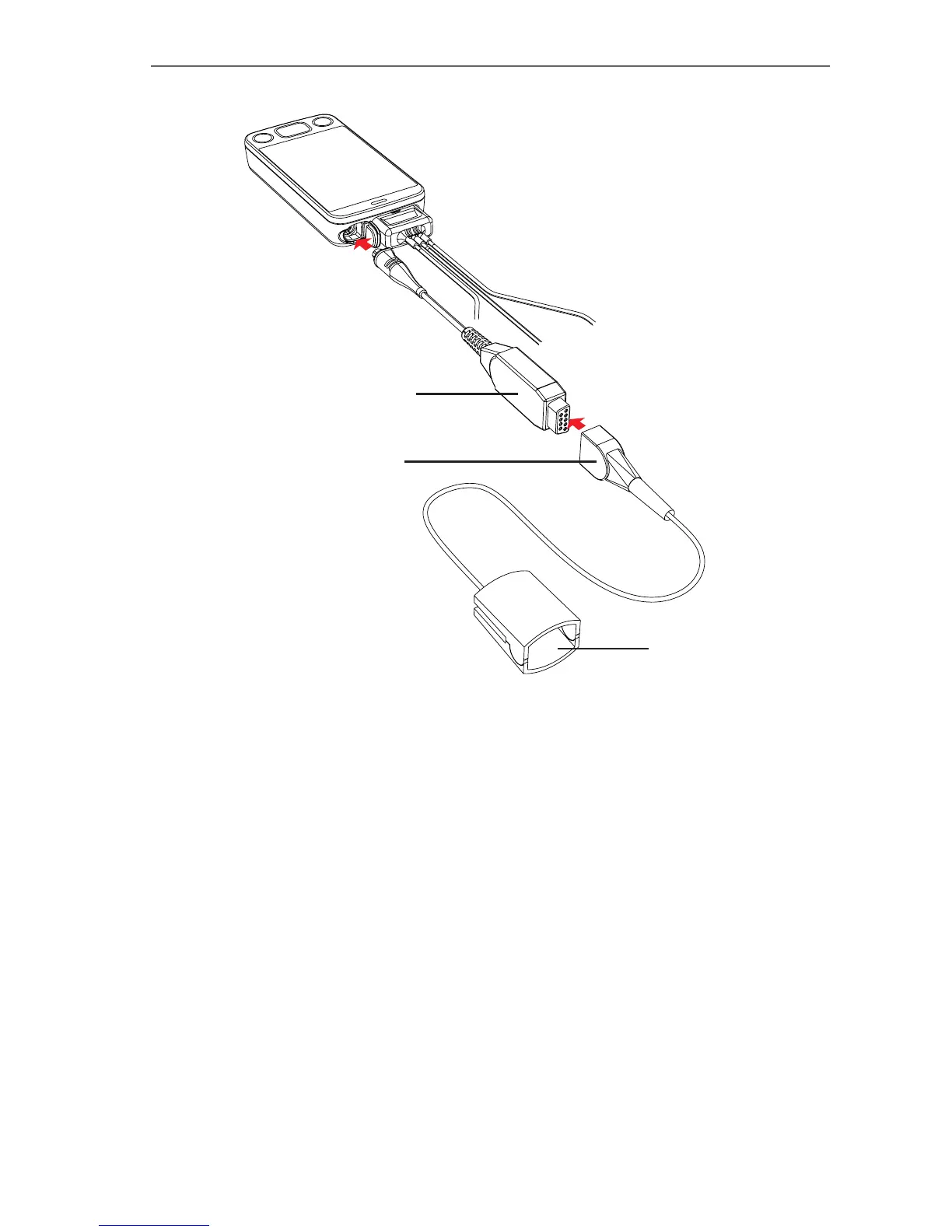

SpO2 module
SpO2 sensor connector
SpO2 sensor
