8.4.2 Front Housing Subassembly

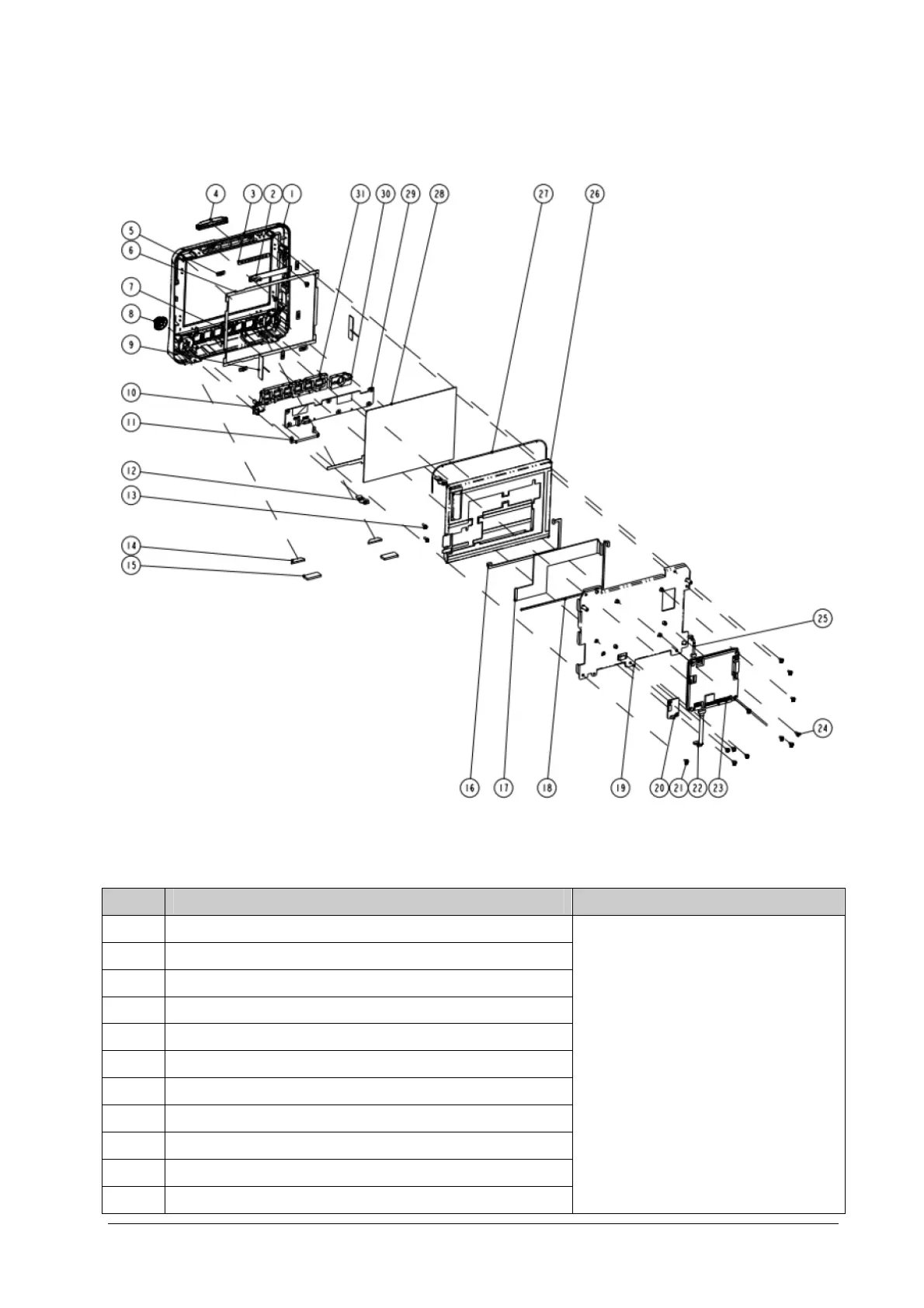

8.4.2.1 Exploded View
8.4.2.2 Parts List
SN Description FRU part number
1 cPM 8 Front cover(silk screen) 115-051592-00
3 Alarm lamp gasket
4 Alarm light of cPM 8
5 Touchscreen position pad (8")
6 Long gasket, cPM8, touchscreen
7 Short gasket, cPM8, touchscreen
12 Locking plate
14 Semicircle foot pad
15 Square foot pad
27 Tube, white, 1.6 mm OD × 0.8 mm
2 Alarm lamp board PCBA
