7-26 Structure and Assembly/Disassembly

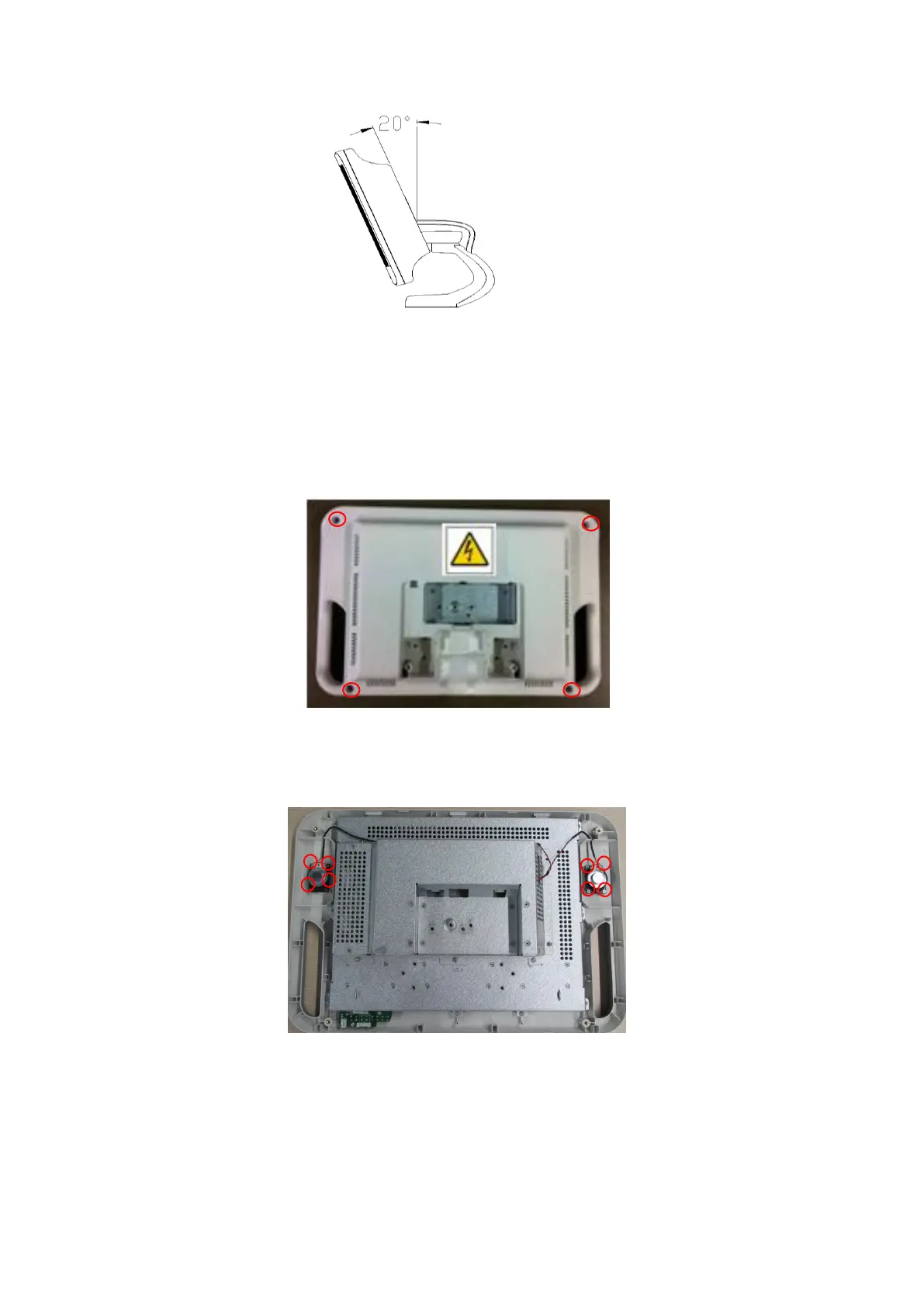

Fig 7-6 Disassemble the Monitor Module (4)
After removing the monitor assembly, you could do the steps as described in the
following.
7.4.1.1 Speaker
1. Remove the M4X12 screws (4 pcs) securing the rear cover of the monitor, and then
remove the rear cover.
Figure 7-7 Removing Monitor Rear Cover
2. Remove the screws M2.6 X 10 (8 pcs) and strapping. Unplug the cable to take down
the speaker.
Figure 7-8 Removing the speaker
7.4.1.2 OSD Key Board
1. Pull out the plugs by the right side of the LCD assembly, remove the M3X8
combination screws (8 pcs) securing the PCB shielding cover, and then remove the
