7-38 Structure and Assembly/Disassembly

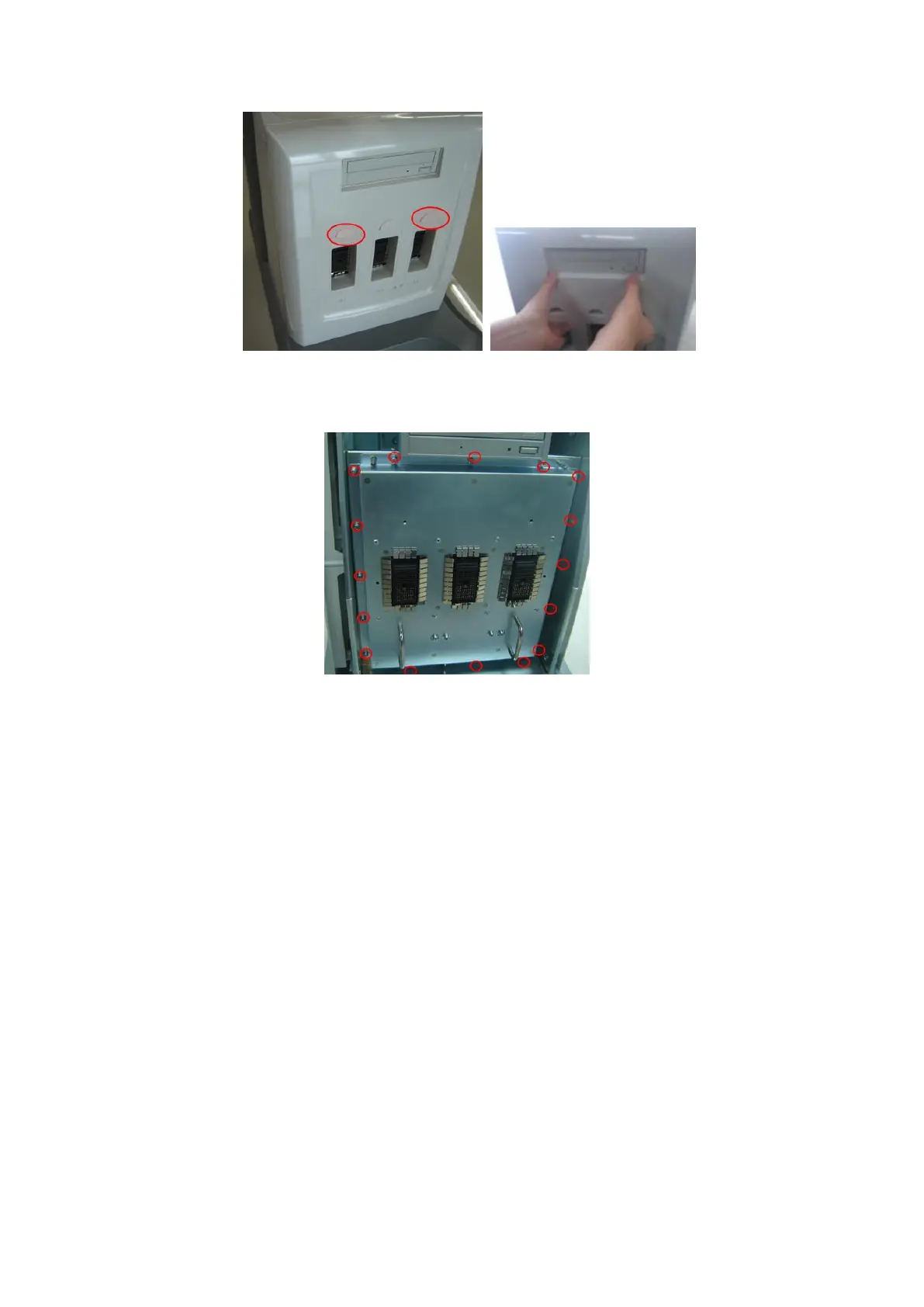

Fig 7-33 Disassemble the front cover
2. Remove the M4x8 screws (16 pcs) which are used to secure the probe board
module, hold the two handles and stably pull out the probe board module.
Fig 7-34 Disassemble the Probe Board Assembly
7.4.8 Left Side-Panel Assembly
Remove the cross panhead screws (M4X8 X 2) fixing the mounting bracket to the left
side-panel. Remove the cross panhead screws (M4X8 X 1) fixing the back mounting ear
to the left side-panel. Remove the cross panhead screw (M4X8 X 1) fixing the front
mounting ear to the left side-panel. Then you can take out the left side-panel.
