Structure and Assembly/Disassembly 7-41

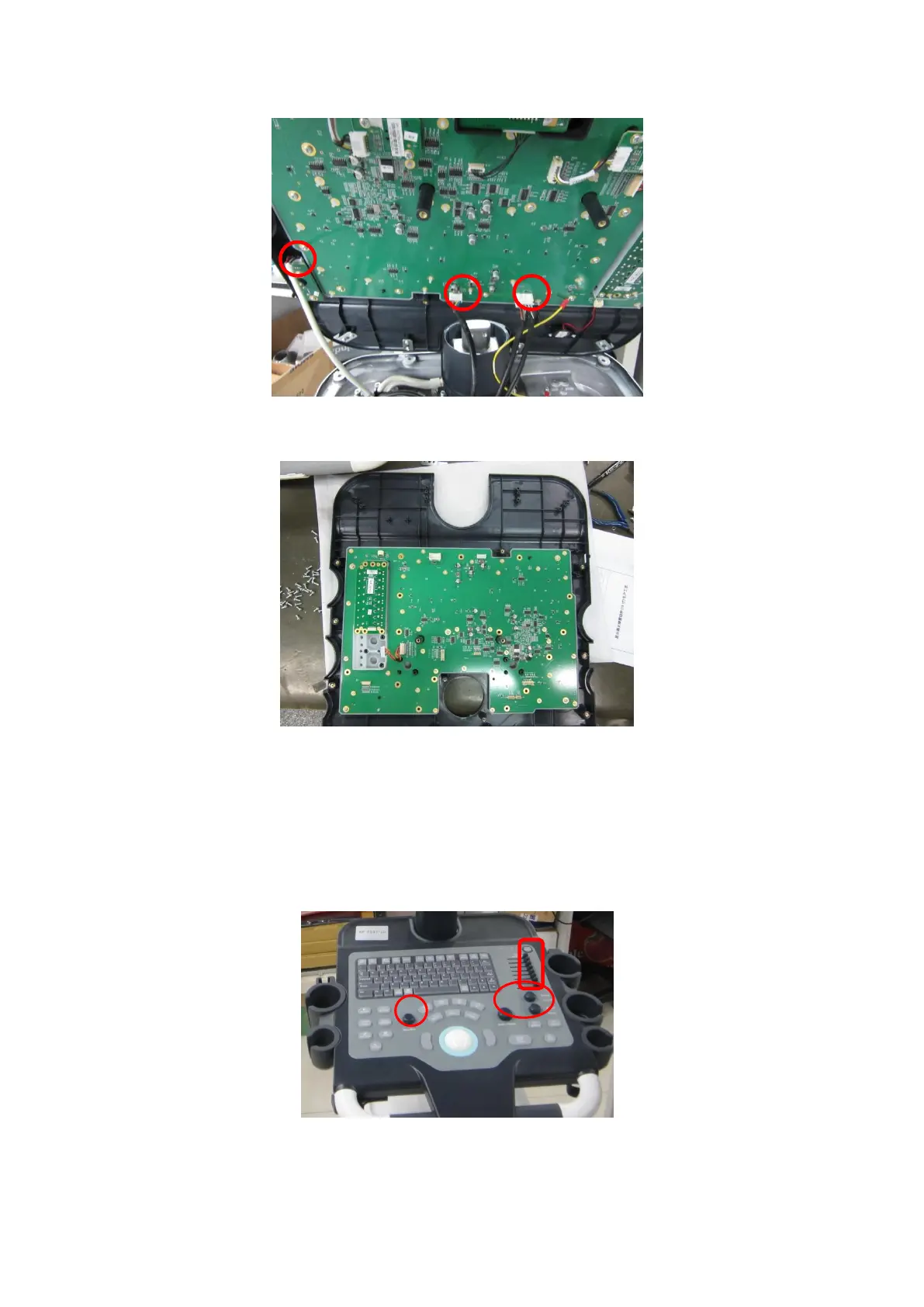

Fig 7-39 Disassemble the control panel assembly (3)
Fig 7-40 Control panel assembly view
After removing the control panel assembly, you could do the steps as described in
the following.
7.4.10.1 Single/dual-encoder Board
1. Remove the 4 knob caps and 8 TGC rod caps on the control panel.
