Specifications 2-3

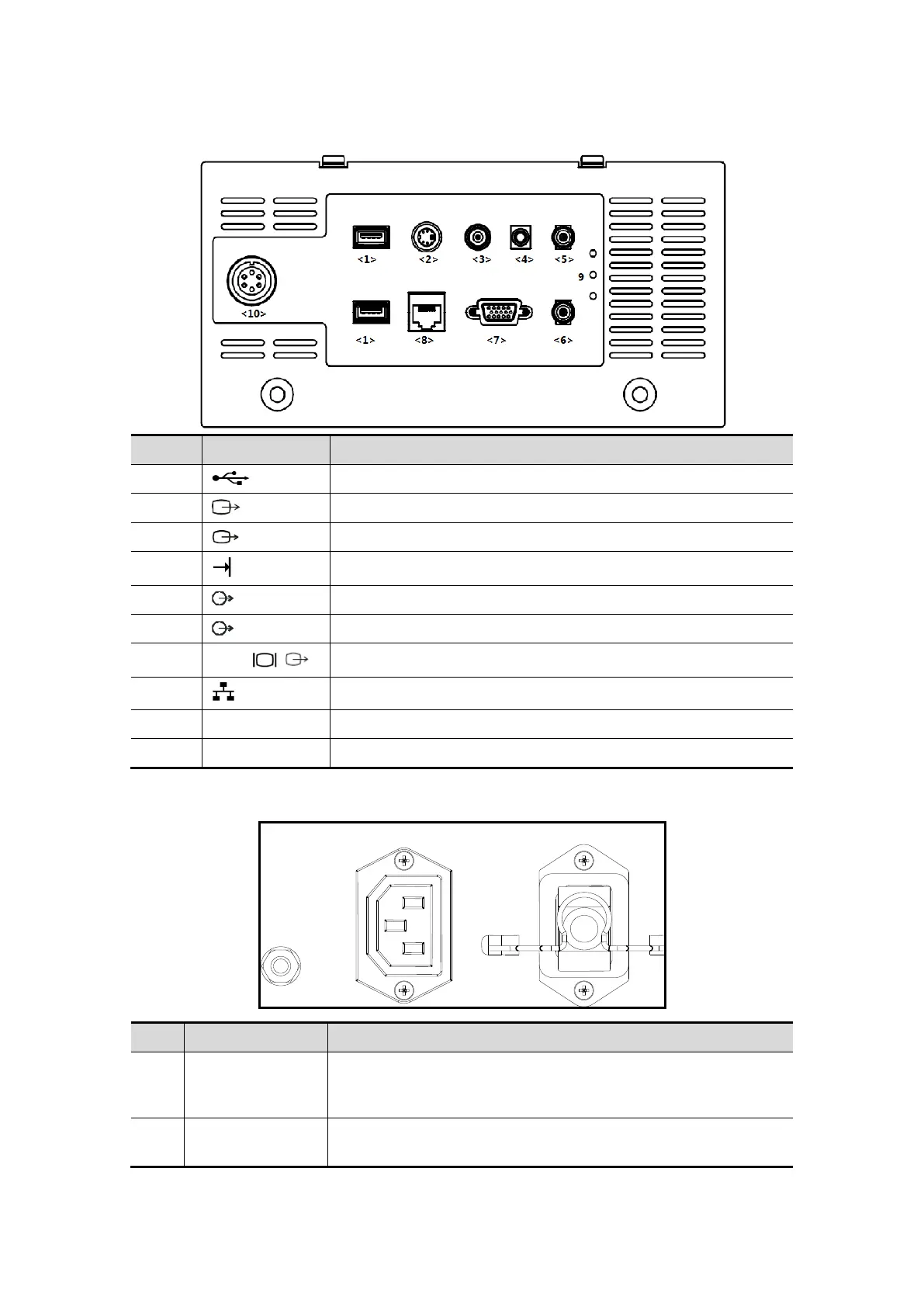

2.1.2.1 IO Panel
No.
Symbol
Function
<1>.
USB ports.
<2>.
Separate video output, connecting video printer.
<3>.
Composite video signal output, connecting video printer.
<4>.
Remote control port.
<5>.
Audio output (left channel).
<6>.
Audio output (right channel).
<7>.
VGA
VGA signal output.
<8>.
Network port.
<9>.
/
Power indicators for 12V, 5V and 3.3V.
<10>.
ECG
ECG port
2.1.2.2 Power Supply Panel
No.
Name
Function
1
Equipotential
terminal
Used for equipotential connection, that balances the protective
earth potentials between the system and other electrical
equipment.
1
Auxiliary Power
outlet
Supply power for optional peripheral devices
<2>
<3>
<1>
