Structure and Assembly/Disassembly 7-35

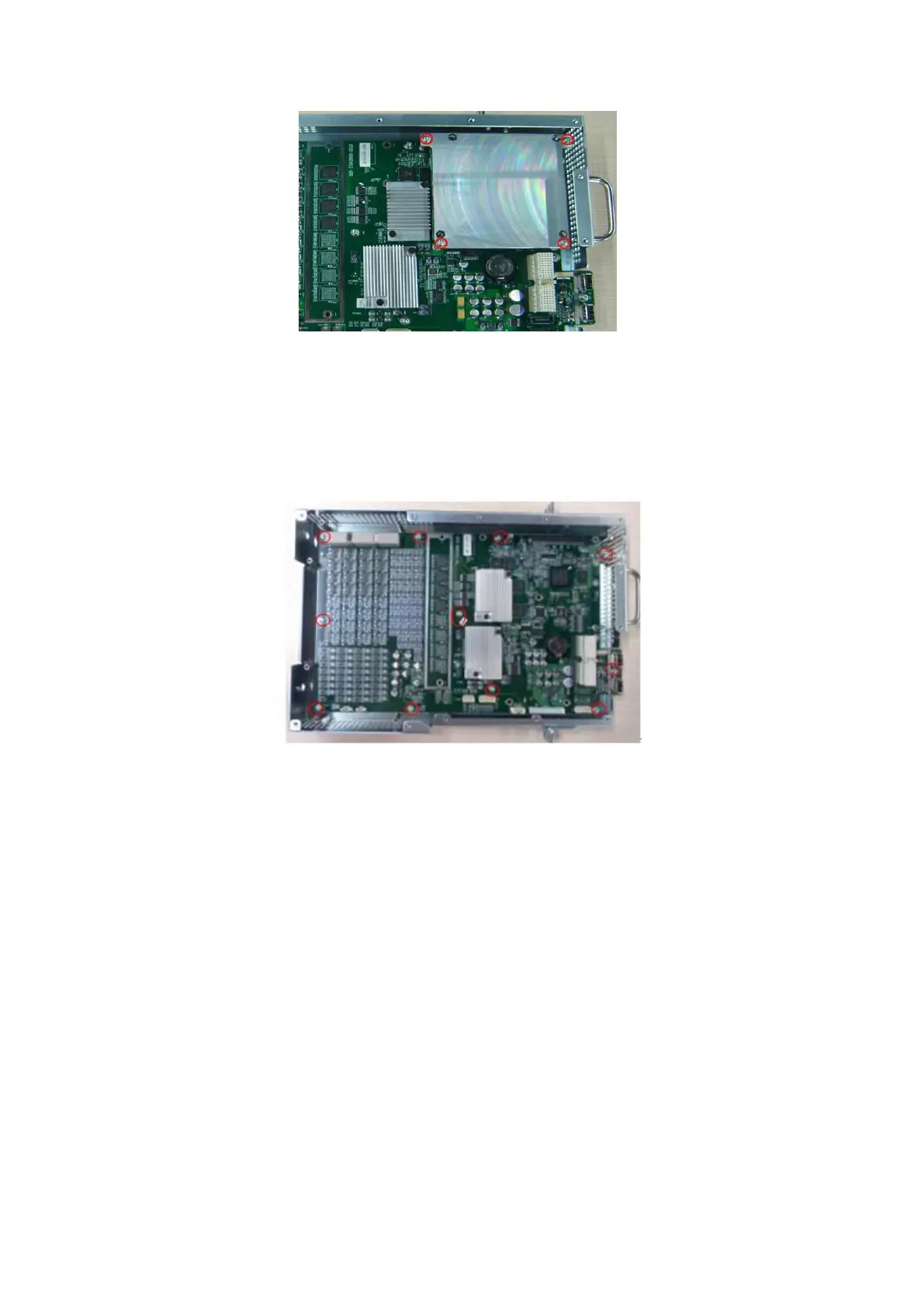

FIG 7-29 Removing the CPU Module
7.4.6.4 Main board assembly
1. Remove the IO interface board, probe connected assembly and CPU module
assembly (refer to 7.4.6.3 Probe Connected Assembly and CPU Module Assembly).
2. Remove the fixing screws (11 pcs) to remove the main unit assembly.
Fig 7-30 Disassemble the main Board Assembly
