9-36 Structure and Assembly/Disassembly

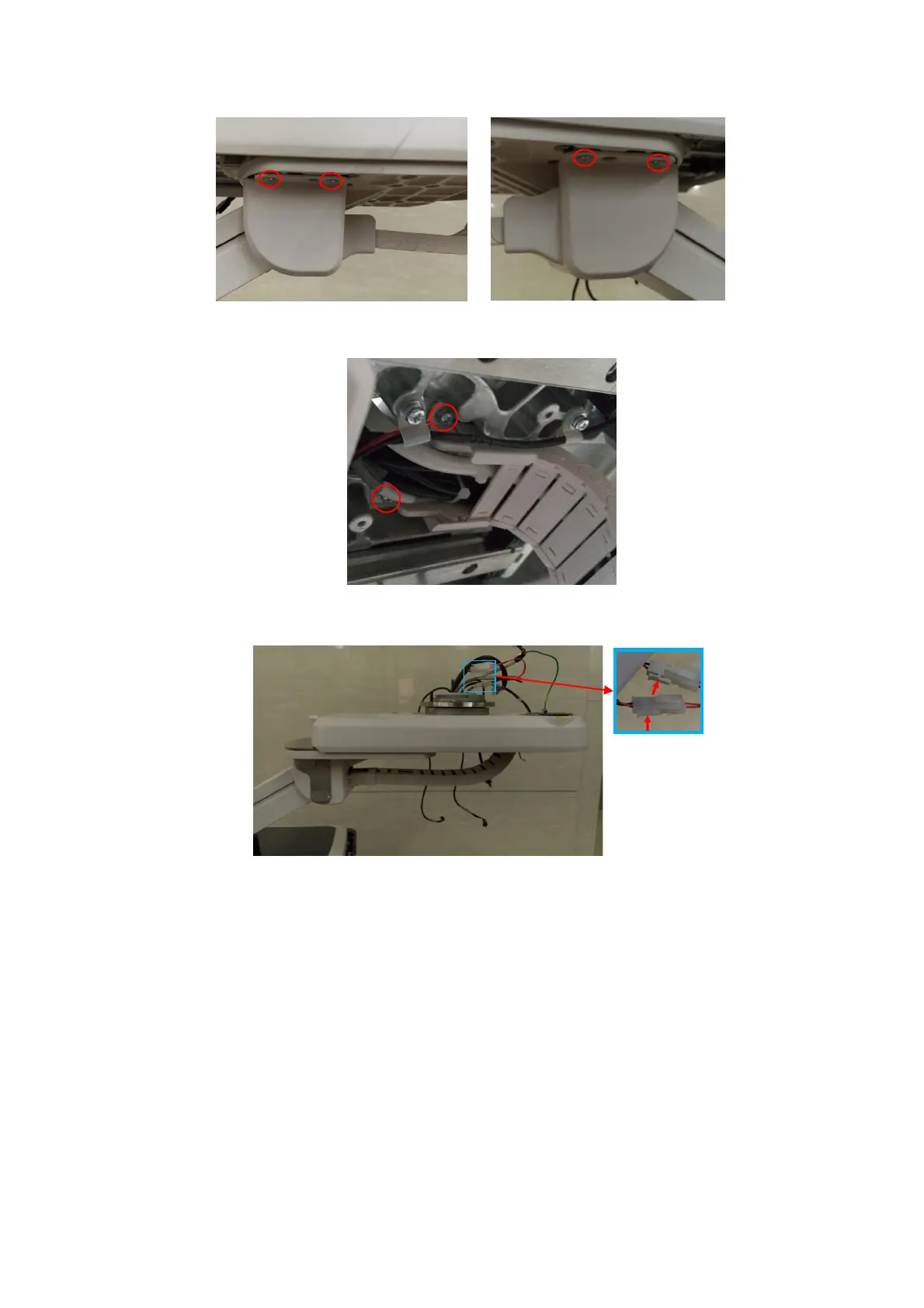

4. Unscrew 2 M4 X 12 cross panhead screws on drag chain holder-1 with screwdriver (M3, M4) to
pull the wires out.
5. Press the clip towards the arrow’s direction to disconnect the connectors of the
electromagnets.
6. Unscrew 12 M5 X 12 round inner head screw (with the pad) from the support arm’s cover with
M5 inner hexagon spanner to remove the moving assembly of the control panel.
