9-76 Structure and Assembly/Disassembly

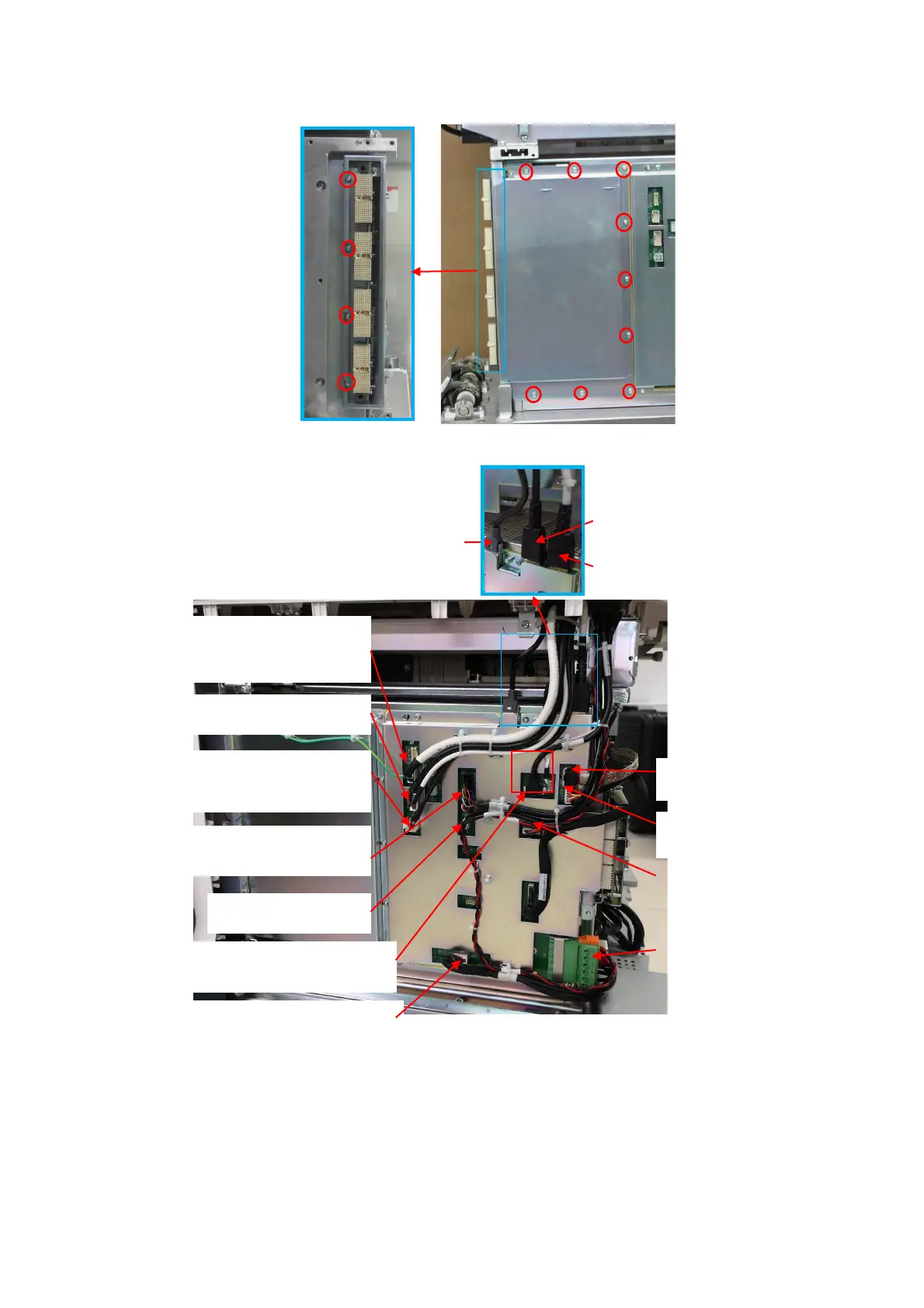

4. Unplug all cables on the mother board.
5. Unscrew 4 M4 X 12 cross panhead screws from the shield cover of the mother board with
cross-headed screwdriver (M3, M4) to remove the shield cover of the mother board.
nterrupt control
-HDMI cable
Signal cable of the touch
screen
igh speed USB cable
Power supply cable of the
monitor, touch screen and
Low speed signal cable
Signal cable of left/right
speaker
Signal cable of ECG
module
AC-DC 24V power control
Drive power and round
SATA cable
power output
HDD signal
To Next Page
