Mindray Eagus R9 User Manual

Structure and Assembly/Disassembly 9-77

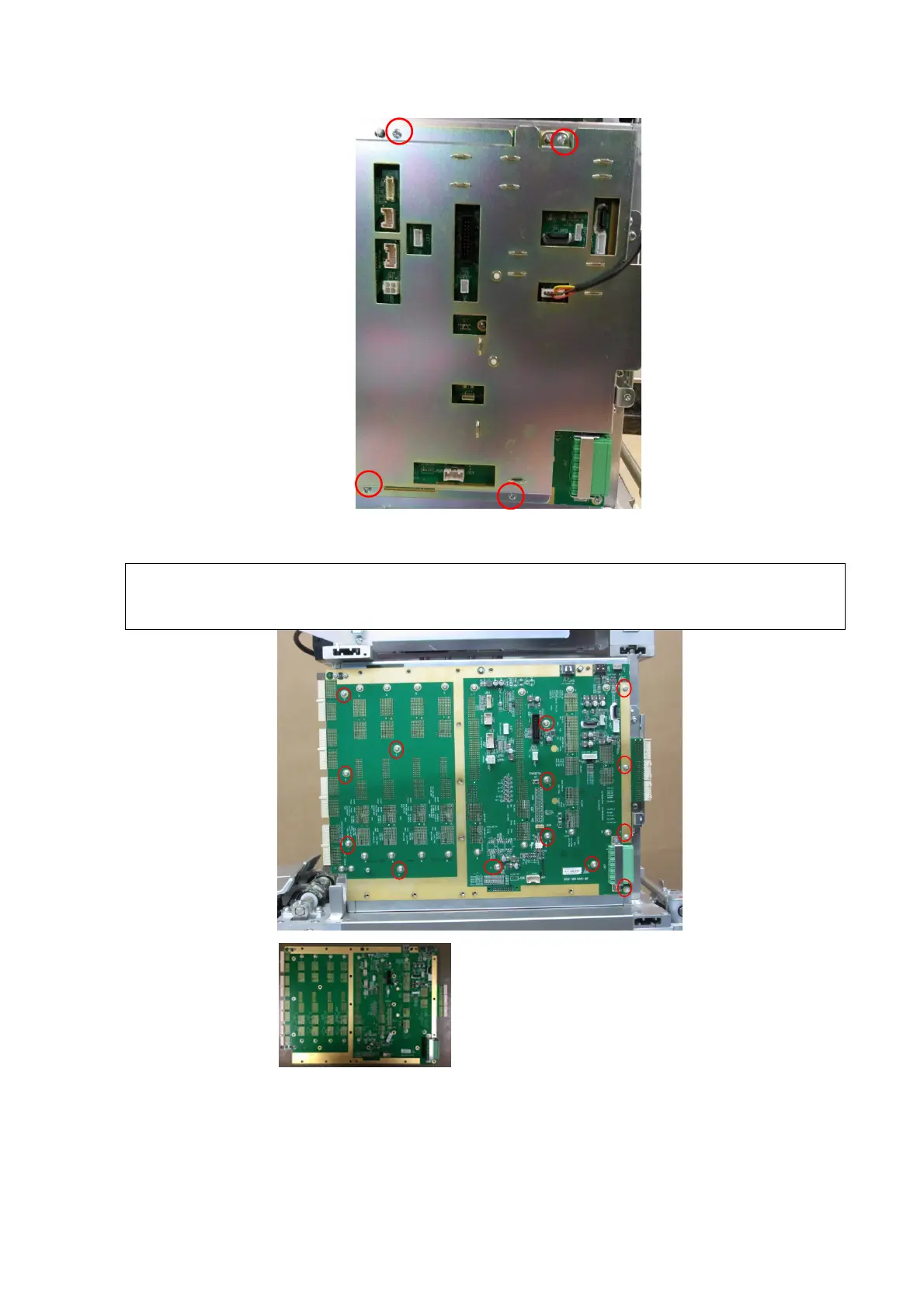

6. Unscrew 14 M3 X 8 screws (marked with Y) with cross-headed screwdriver (M3, M4) to
remove the mother board assembly (FRU).
NOTE
Disassemble PC/PHV/DC/TR assembly and TR64 board PCBA/engine PCBA first, and
then remove the mother board assembly. Otherwise, unplugging the mother board with
the force will lead to the damage to the socket of the mother board.
M
other board assembly (FRU)
