9-82 Structure and Assembly/Disassembly

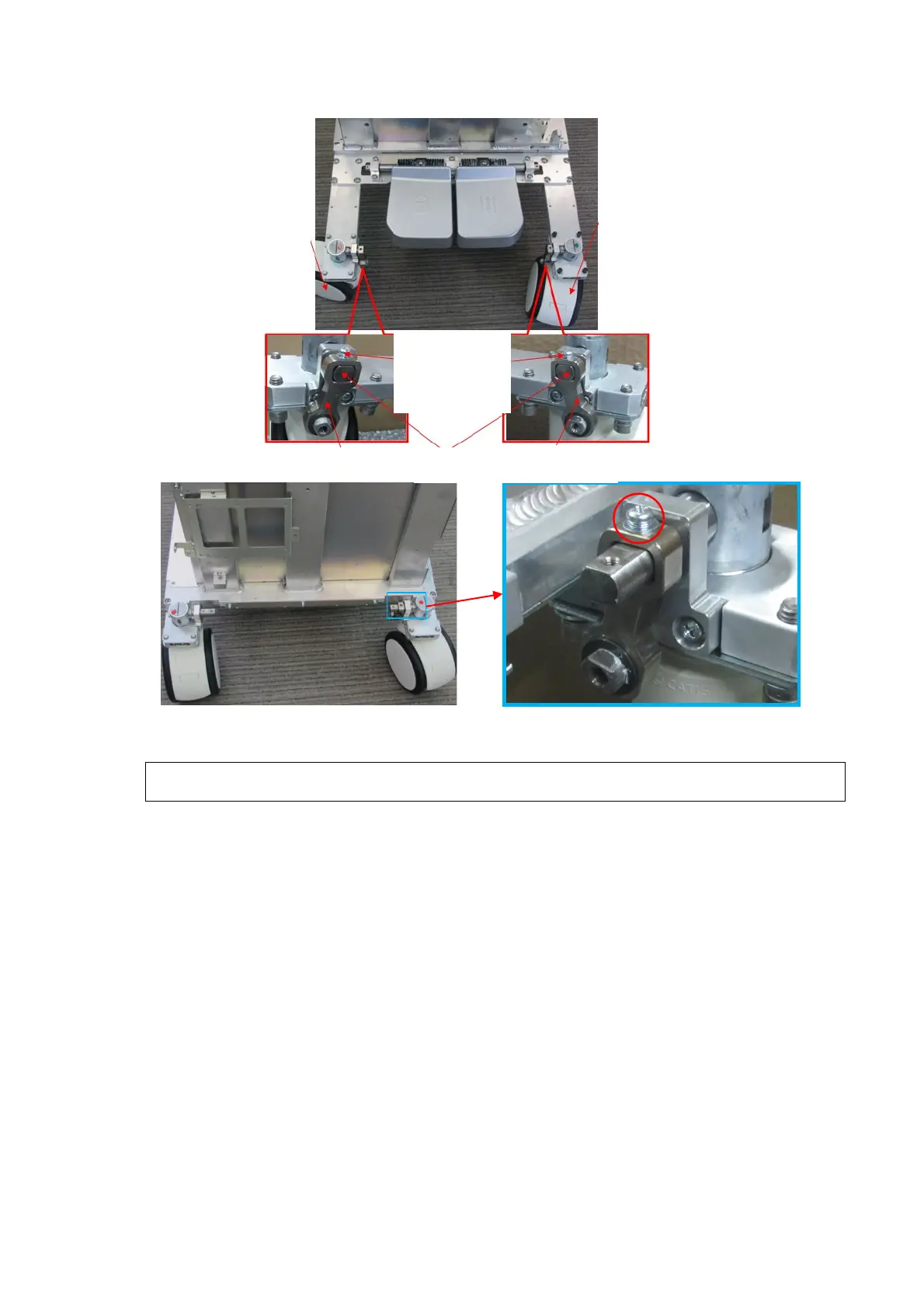

3. Step on two pedals. Unscrew 4 M4 X 12 screws (2 screws on each side) with the screwdriver

(M3, M4) to remove two caster bearings and two rotating bearings.

Note:

Place two back rotating bearings level when installing them.

Left rod

Right rod

Front rod

Central caster

(Full lock)

Central caster

(Straight line)

M4X12

combination

screw (2)
