9-84 Structure and Assembly/Disassembly

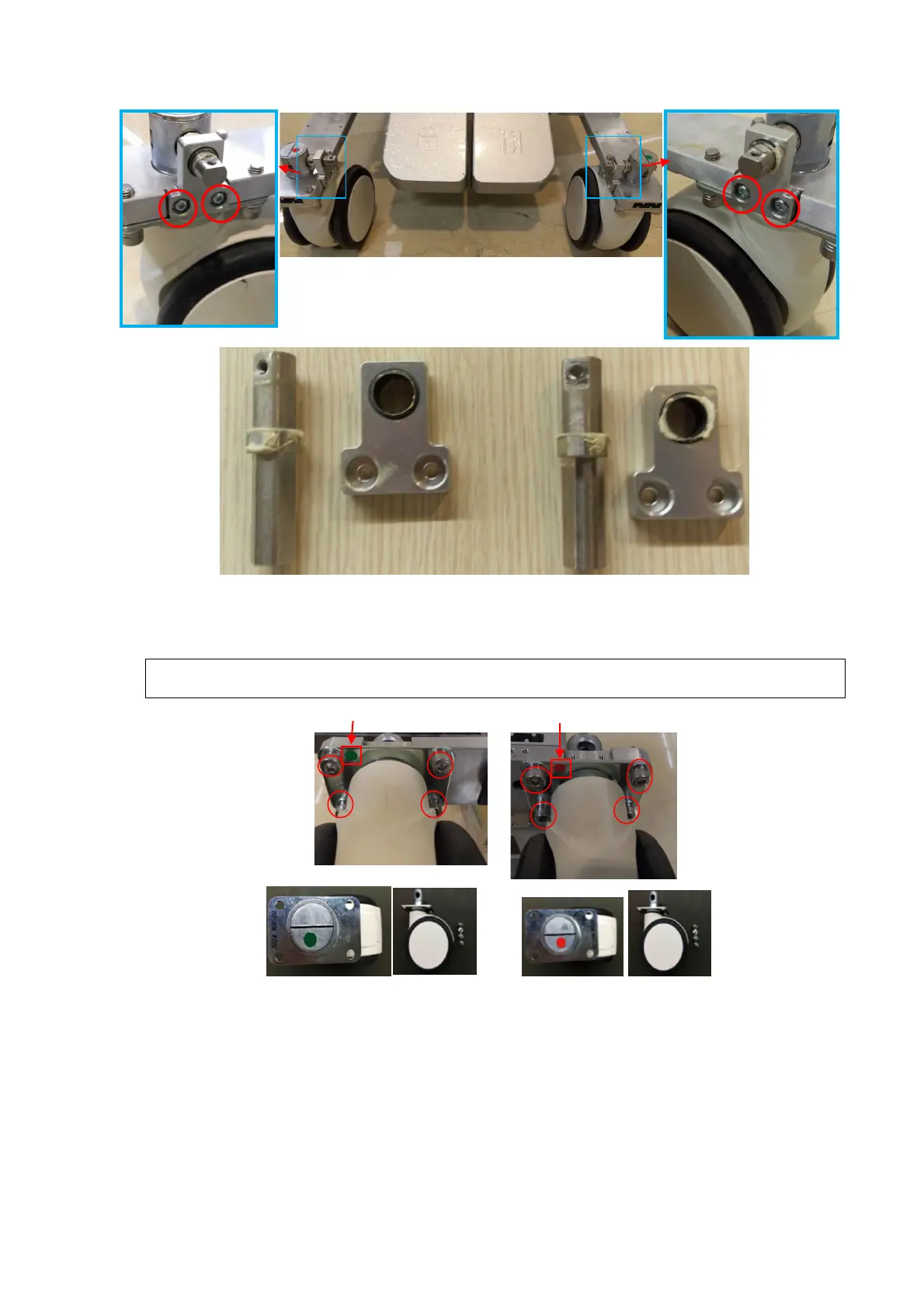

5. Lay the main unit bracket to the left side or the right side. Use M8 inner hexagon spanner to
unfasten 16 M8 X 25 round inner head screws (with the pad) on one straight line caster
(marked with the green spot) and 3 full lock casters (marked with the red spot) to remove the
casters.
Note:
In case of the fall of the parts, be careful of the operation.
9.3.38.6 Motor-driven Lift Mechanical Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), inner hex spanner (M5, M6).
1. The disassembly method to moving assembly type in first step is different to that of non-moving
assembly type.
 Moving assembly type
Full lock caster
Caster: 125mm Straight line caster
Ch
loroprene rubber wheel
Caster: 125mm Full lock caster
Ch
loroprene rubber wheel
Front transmitting bearing (2)
Caster bearing (2)
Straight line caster
