4-14 Product Principle
4.3.4.7 The Frame of System Monitor Function
Doppler
Driver
Operating System
CPU Module
MF FPGA
LPC
ATD7462
_A
ADD:0X58
ATD7462
_B
ADD:0X5C
Alert0
Alert1
Fan_OUT
GPU Fan
Fan_IN
Carrier
Board
Voltage
Carrier
Board
Temprature
SMBus0
ATD7462
ADD:0X5C
DC_DC
Board
Temprature
DC_DC
Board
Voltage
SMBus2
LPC1113
LiftCtr
Board 24V
Error Event
Alert2
Alert3
SMBus3
CPU Fan
DSP FPGA
Temperature
Core Voltage
RX1 FPGA
Temprature
Core Voltage
RX2 FPGA
Temprature
Core Voltage
RX3 FPGA
Temprature
Core Voltage
PCIE
Psoc3
Control
Pane l
Key Stuck
GPU Temperature
USB
PHV Board
Voltage
Error Event
ADUC
7024
UART
4D FPGA
Error Event
CPU Temperature

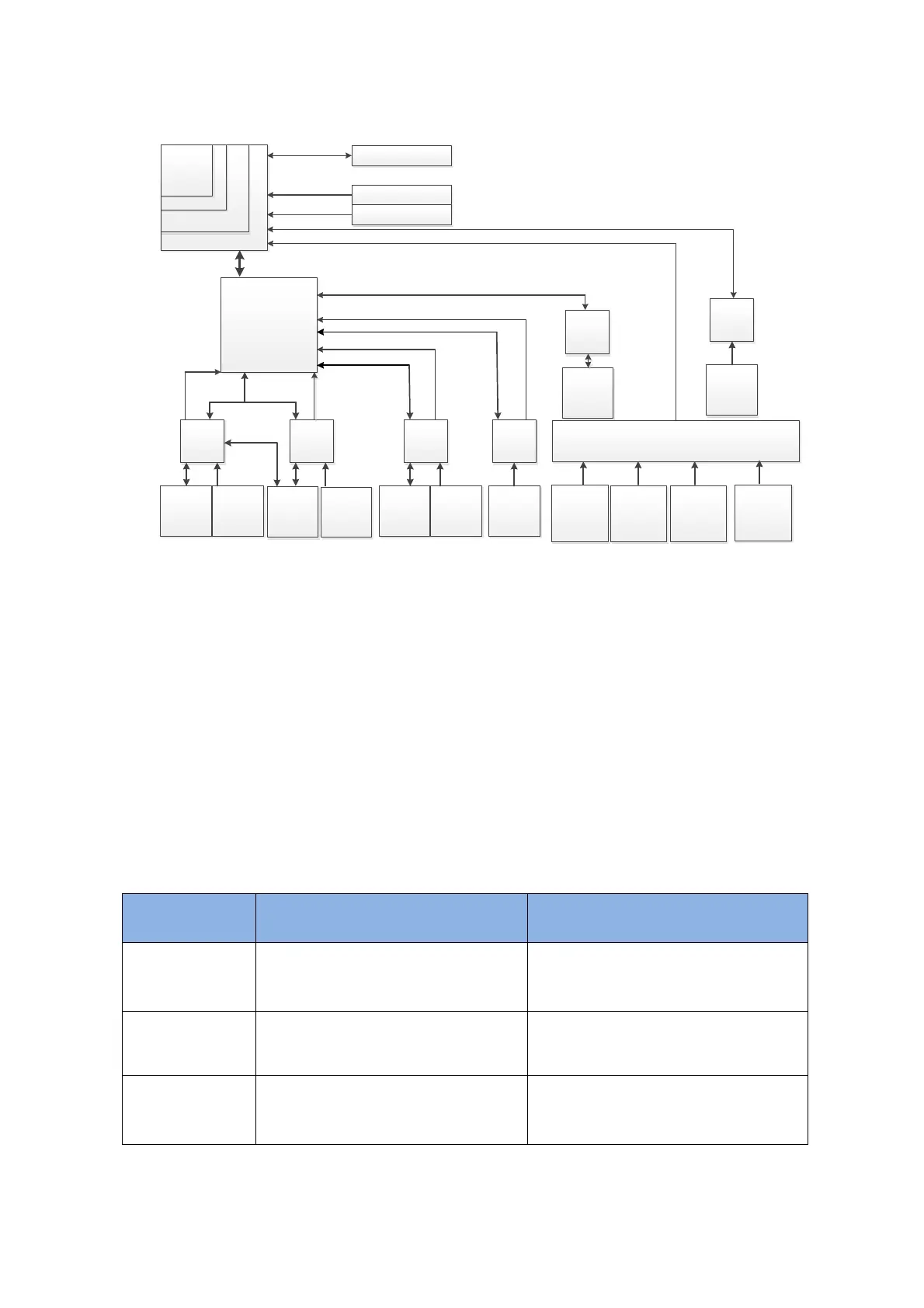

Fig 12 Principle Diagram of System Monitor Function
Main monitoring content:
 CPU/GPU temperature
 GPU/GPU fan
 The voltage and temperature of PC carrier board, voltage and temperature of DCDC board
which are captured by 7462.
 The cooling fan captured by 7462
 PHV related voltage
 Electrical ascending/descending voltage, communication and key block monitor
 The key block of control panel
 DSP/RX1/RX2/RX3/4D FPGA voltage, temperature monitoring
Related monitor description:
Monitoring
items
Function description
Interface Description
CPU Fan
Monitor the rotation speed of
CPU fan and control the rotation
speed of CPU speed
Doppler software read the speed
via the port, and controls the
speed
GPU/CPU
Temperature
Monitor the temperature of
CPU/GPU
Doppler reads it directly by
interface.
Psoc3
Control panel, key block of
control panel
USB connects with main unit,
Doppler communicates with Psoc
by USB interface
