Mindray Nuewa I9 User Manual

13-2 Probes and Biopsy
SP5-1s ELC13-4s
SD8-1s SC8-2s
CW5s L13-3Ns
CW2s P7-3TU/P7-
3Ts /P7-3TE

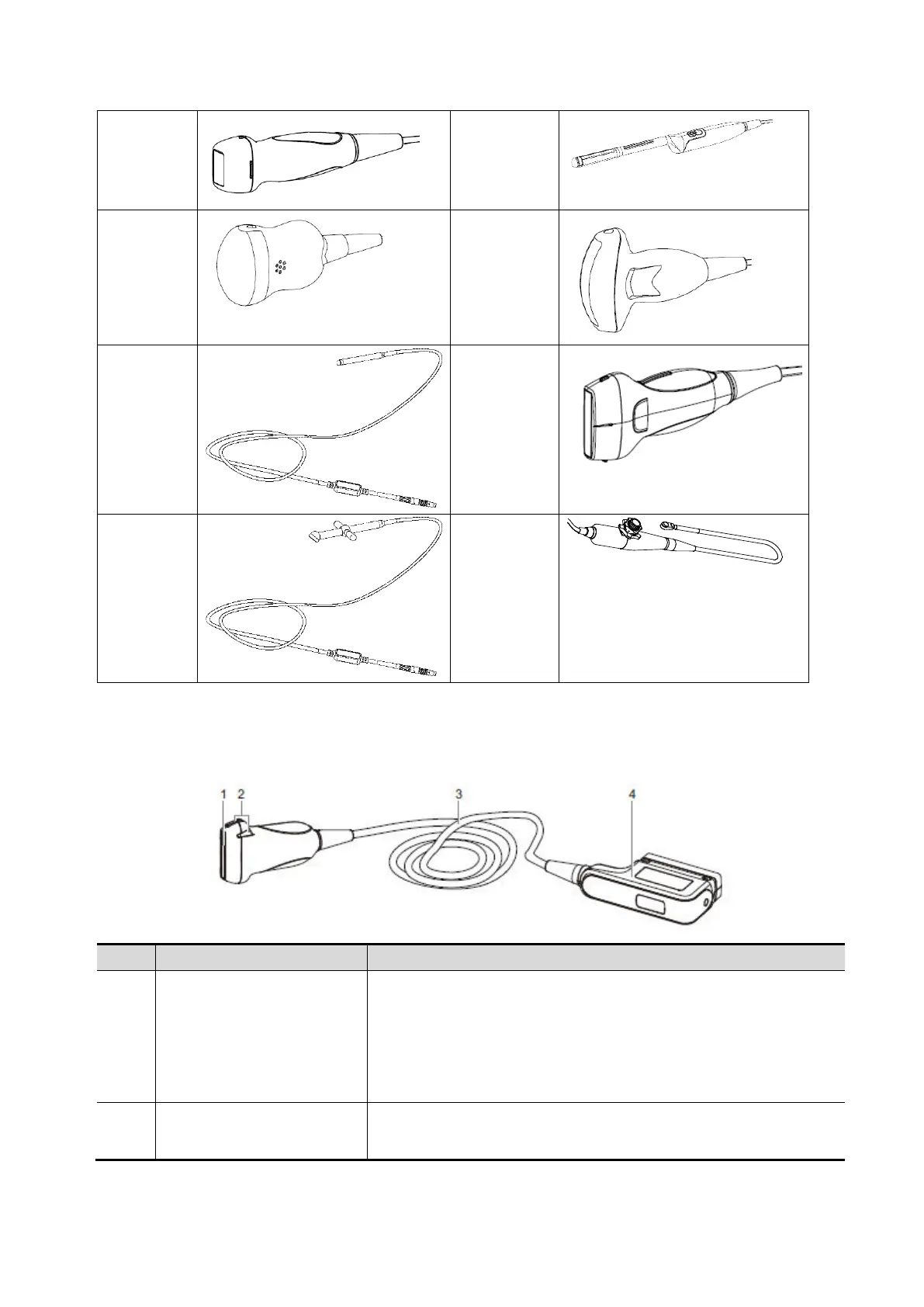

13.1.1 Probe Functions by Part
The basic structures and corresponding functions of probes are basically the same; take the following
probe as an example.
No.
Name
Function
<1> Probe head Converts the electrical signal into an ultrasonic signal, focusing
the sound beams in a given direction; meanwhile, it receives
the reflected ultrasonic signal and converts it into an electrical
signal for transmission over the cable. The lens on the surface
is the acoustic lens. Apply ultrasound gel on the acoustic lens
for correct operation.
<2> Needle-guided bracket fix
tabs and grooves
Provides mounting support of the needle-guided bracket.
