Probes and Biopsy 13-3
No. Name Function
<3> Probe cable Transmits electrical signals between the probe body and
connector.
<4> Probe connector Connects the probe and cable to the ultrasonic diagnostic
system.
Tips:
The probes’ structure marked <2> in the figure above may vary with the matched needle-guided
brackets.
13.1.2 Orientation of the Ultrasound Image and the Probe
Head

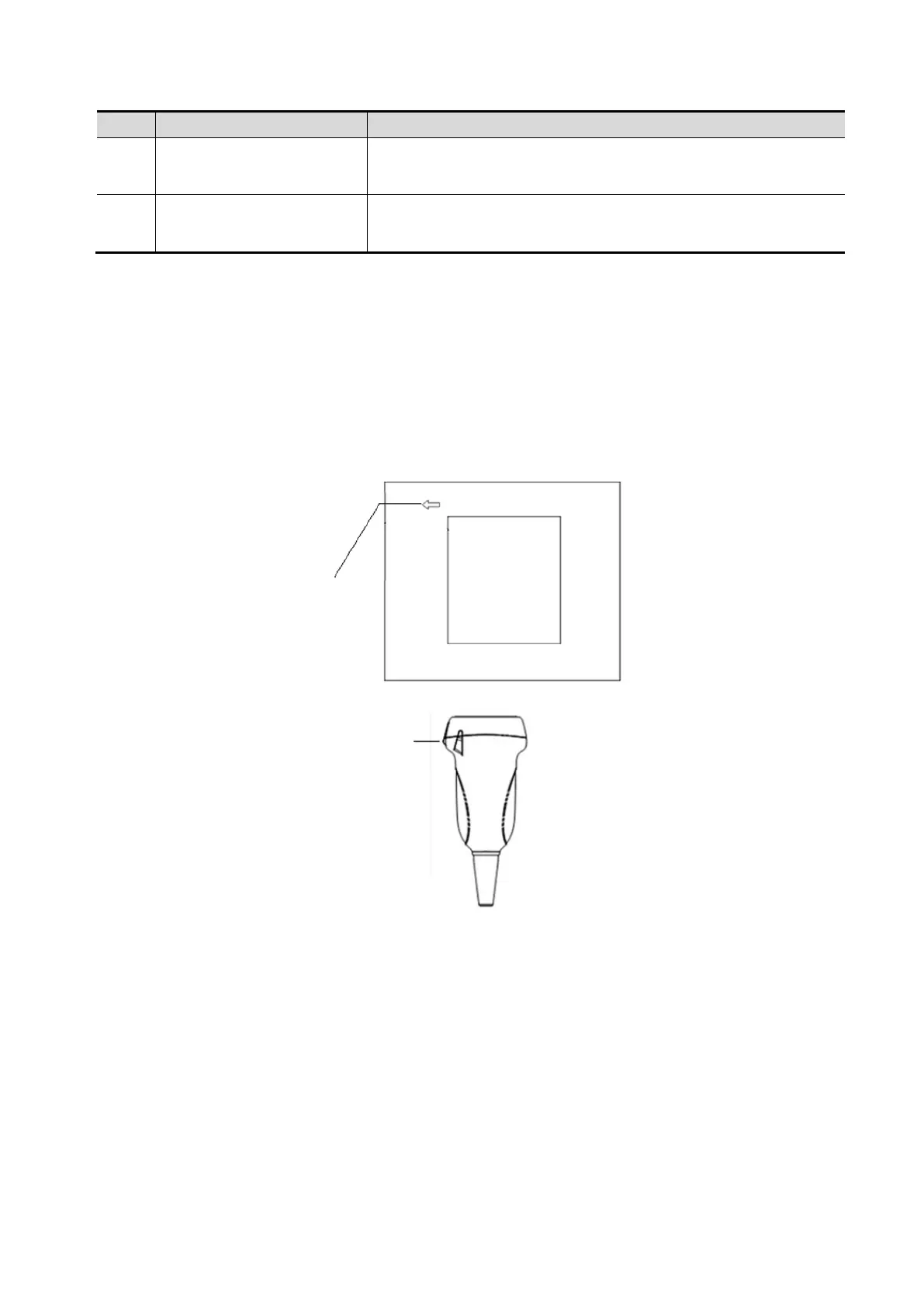

The orientation of the ultrasound image and the probe are shown as below. The “Mark” side of the
ultrasound image on the monitor corresponds to the mark side of the probe. Check the orientation
before the examination (Using a linear probe as an example).
13.1.3 Procedures for Operating
This section describes general procedures for operating the probe. The proper clinical technique to be
used for operating the probe should be selected on the basis of specialized training and clinical
experience.
Procedures for operating (with biopsy function):
