5-2 Image Optimization
3. Parameter adjusting area: displays the parameters in the current imaging mode or function.
Parameter magnitude setting: Click or to increase/ decrease the value.
ON/OFF setting: some of the parameters only can be set at ON or OFF, ON is to activate the
function, and when the function is activated, the key is highlighted in blue.
Page selection: if the parameters cover more than one pages, tap the Main tab or Sub tab to
find more.
Parameter submenu: for the parameter with icon, tap to display the submenu to select the
desired value.
Functional item: touch to go to the corresponding function.
4. Knob-adjusting area: displays the knob-controlled parameters.
There are six knobs at the bottom of the touch screen; their functions vary with the current menu.
Press or rotate the knobs to adjust the corresponding parameters.
Touch screen adjustment (image mapping mode)
Enter the mapping mode to open the mapping menu. See Chapter 3.7.4 The Display of Touch
Screen and Its Operation for details.
Tap the menus to operate:
Menu title: displays the current image mode. Click the expand button to show the image
modes. Select the image mode if necessary.
Other application mode entrance: displays the available application modes related, click to
enter the corresponding mode. Such as, iWorks, physio.
Parameter adjusting area: displays the parameters in the current imaging mode or function.
Value adjustment: click the parameter item. The value increases as swiping from left to right;
the value decreases as swiping from right to left.
ON/OFF setting: some of the parameters only can be set at ON or OFF, ON is to activate the
function, and when the function is activated; the key is highlighted in blue.
Parameter submenu: for the parameter with icon, tap to display the submenu to select the
desired value.
Functional item: touch to go to the corresponding function.
Scrollbar operation: scroll to view all items.

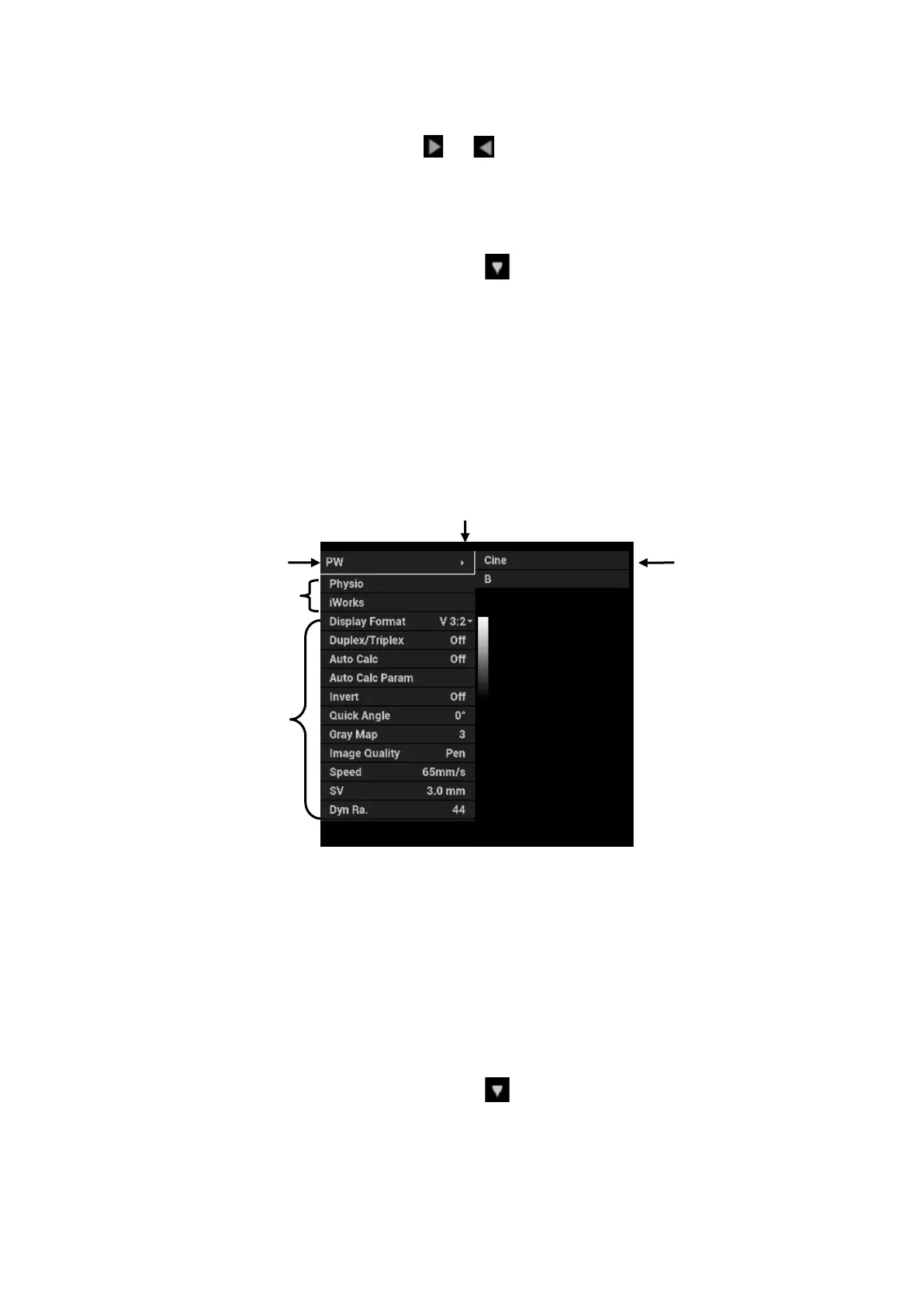

-menu
Menu title
Other application
mode entrance
To Next Page
