Mindray uMEC10 Service Manual

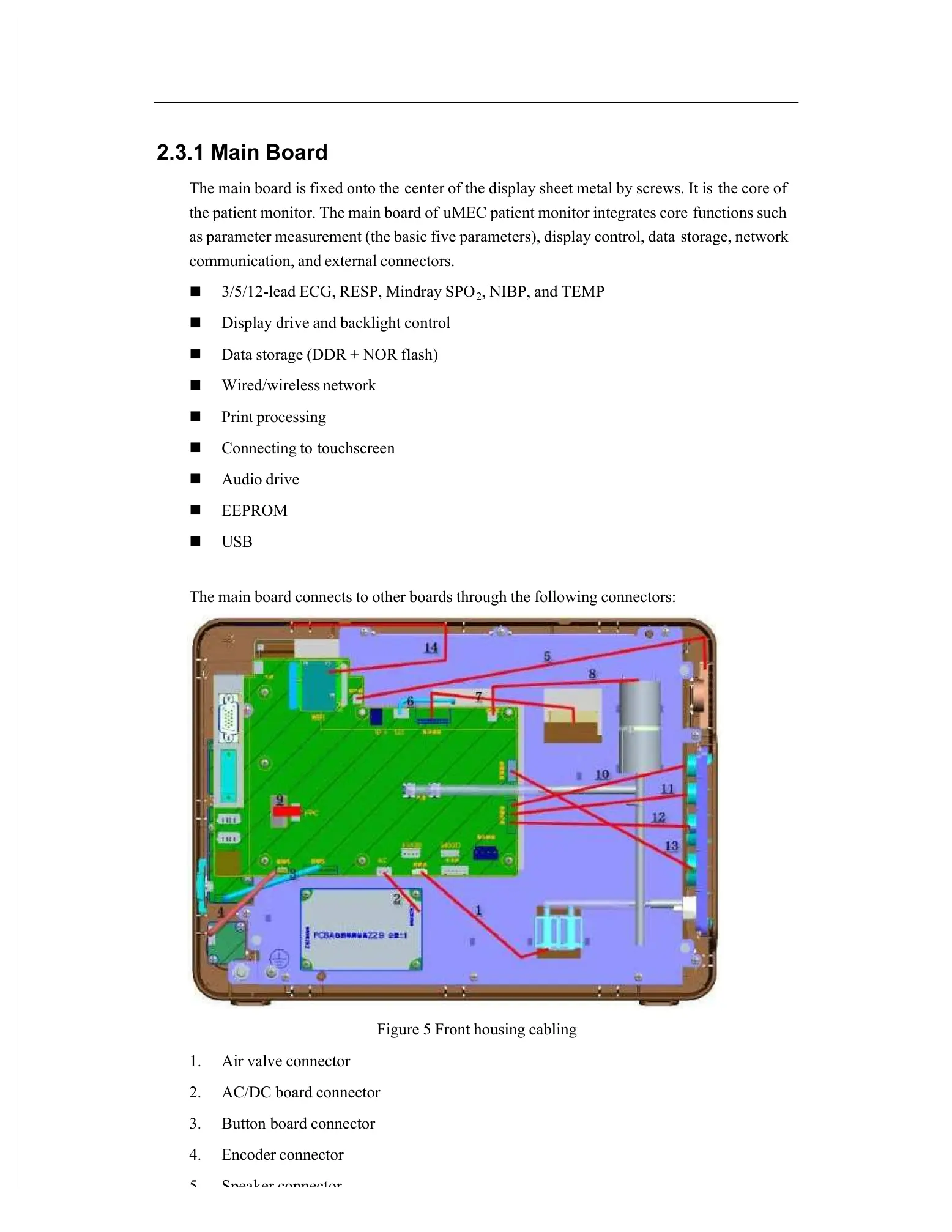

2.3.1 Main Board
The main board is fixed onto the
center of the display sheet metal by screws. It is
the core of
the patient monitor. The main board of
uMEC patient monitor integrates core
functions such
as parameter measurement (the basic five parameters), display control, data
storage, network
communication, and external connectors.

3/5/12-lead ECG, RESP, Mindray SPO
2
, NIBP, and TEMP

Display drive and backlight control

Data storage (DDR + NOR flash)

Wired/wireless network

Print processing

Connecting to
touchscreen

Audio drive

EEPROM

USB
The main board connects to other boards through the following connectors:
Figure 5 Front housing cabling
1.
Air
valve
connector
2.
AC/DC
board
connector
3.
Button
board
connector
4.
Encoder
connector
5.
Speaker
connector

Mindray uMEC10 Specifications

General

Resolution	800 x 600
ECG	3/5-lead ECG
EtCO2	Optional
Battery	Rechargeable lithium-ion
Battery Life	4 hours
Dimensions	110 mm
Alarm	Audible and visual alarms
Power Supply	AC 100-240V, 50/60Hz
Agent	No
O2	No
