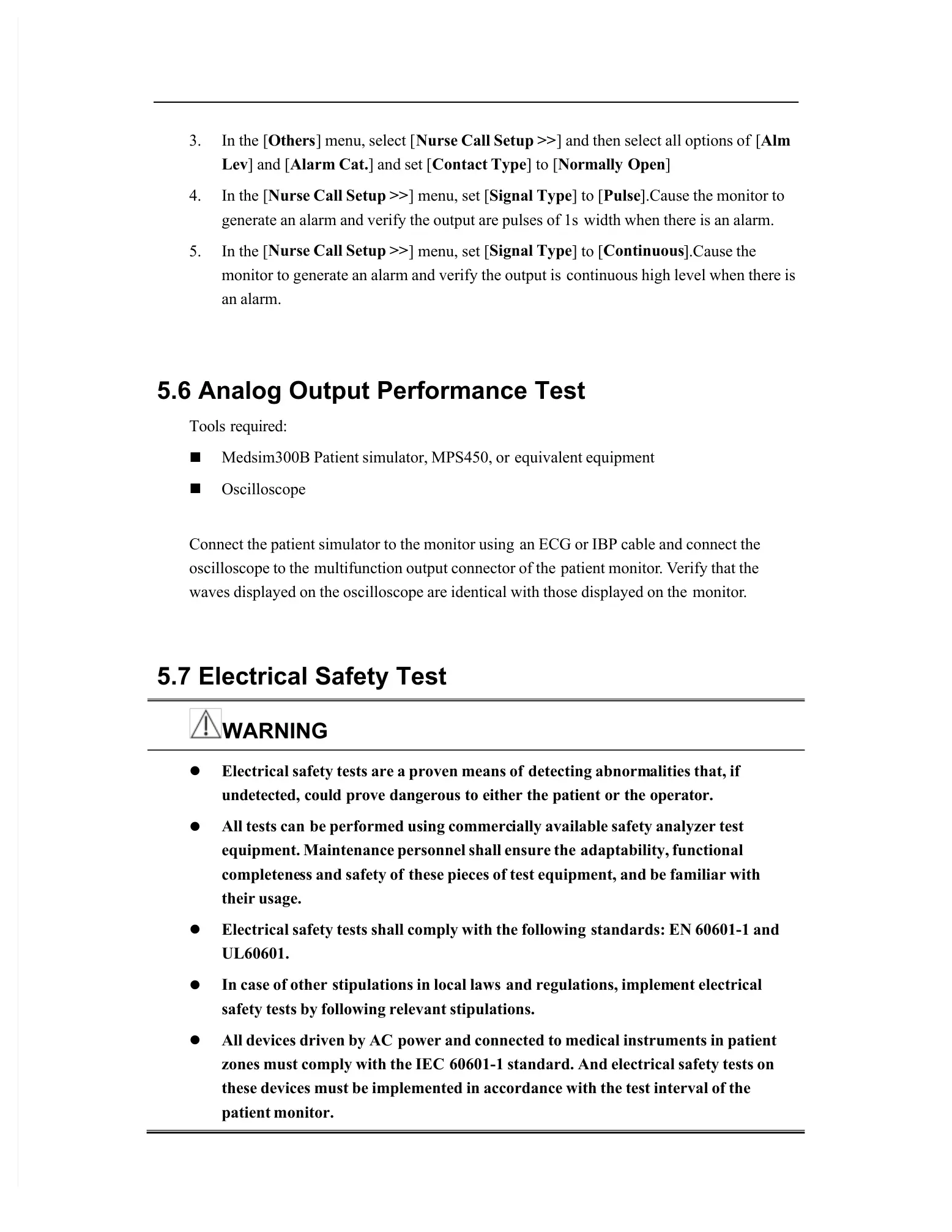

3.
In
the
[
Others
] menu, select [
Nurse Call Setup >>
] and then select all options of
[
Alm
Lev
] and [
Alarm Cat.
] and set [
Contact Type
] to [
Normally Open
]
4.
In
the
[
Nurse Call Setup >>
] menu, set [
Signal Type
] to [
Pulse
].Cause the monitor to
generate an alarm and verify the output are pulses of 1s
width when there is an alarm.
5.
In
the
[
Nurse Call Setup >>
] menu, set [
Signal Type
] to [
Continuous
].Cause the
monitor to generate an alarm and verify the output is
continuous high level when there is
an alarm.
5.6 Analog Output Performance Test
Tools required:

Medsim300B Patient simulator, MPS450, or
equivalent equipment

Oscilloscope
Connect the patient simulator to the monitor using
an ECG or IBP cable and connect the
oscilloscope to the
multifunction output connector of the
patient monitor
. V
erify that the
waves displayed on the oscilloscope are identical with those displayed on the
monitor
.
5.7 Electrical Safety Test
WARNING

Electrical safety tests are a proven means of
detecting abnorm
alities that, if
undetected, could prove dangerous to either the patient or the operator.

All tests can
be performed using commerc
ially available safety analyzer test
equipment. Maintenance personnel shall ensure the
adaptability, functional
completene
ss and safety of
these pieces of test equipment, and be familiar with
their usage.

Electrical safety tests shall comply with the following
standards: EN 60601-1 and
UL60601.

In case of other
stipulations in local laws
and regulations, implem
ent electrical
safety tests by following relevant stipulations.

All devices driven by AC
power and connected to medical instruments in patient
zones must comply with the IEC
60601-1 standard. And electrical safety tests on
these devices must be implemented in accordance with the test interval of the
patient monitor.

Mindray uMEC10 Specifications

General

Resolution	800 x 600
ECG	3/5-lead ECG
EtCO2	Optional
Battery	Rechargeable lithium-ion
Battery Life	4 hours
Dimensions	110 mm
Alarm	Audible and visual alarms
Power Supply	AC 100-240V, 50/60Hz
Agent	No
O2	No
