Mindray uMEC10 Service Manual

6

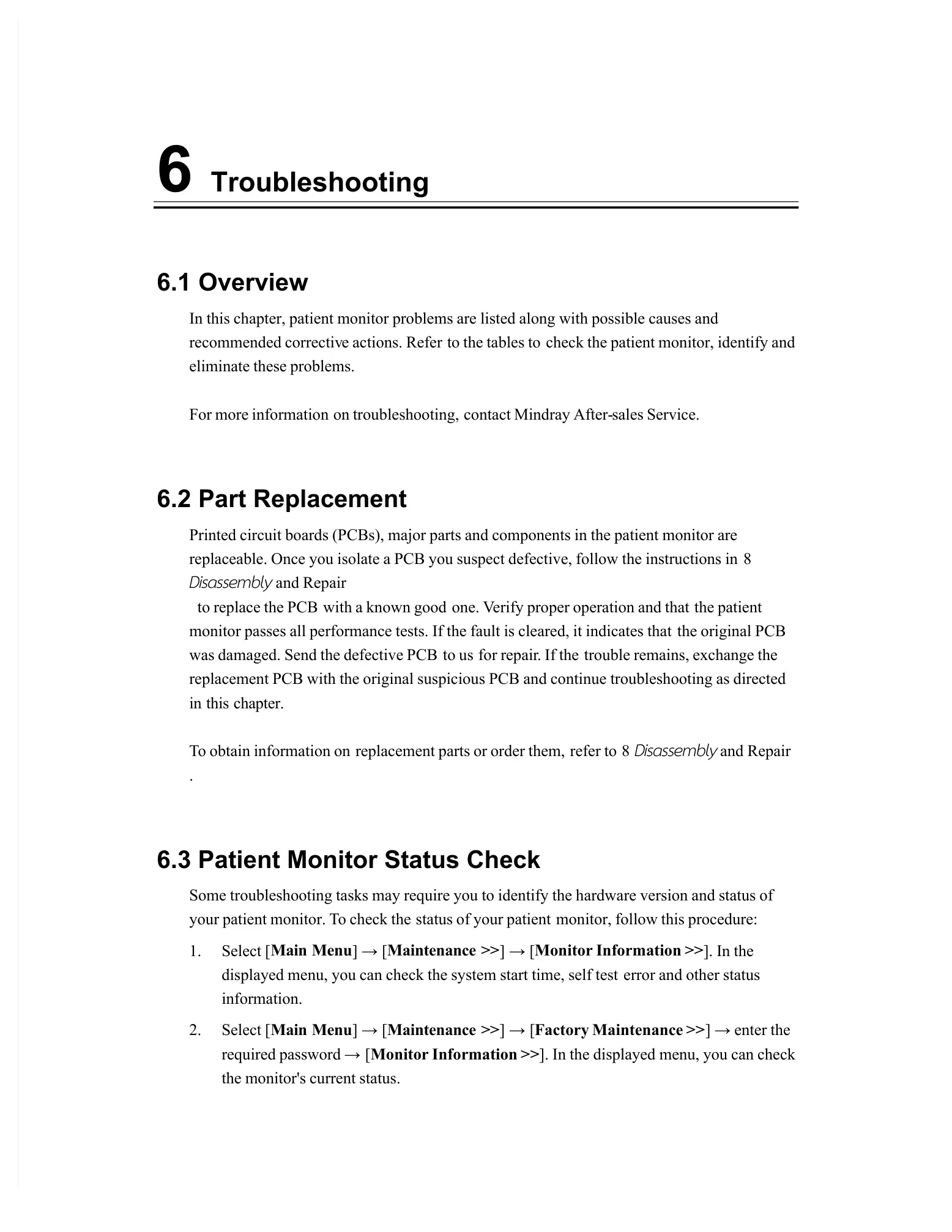

Troubleshooting
6.1 Overview
In this chapter, patient monitor problems are listed along with possible causes and
recommended correctiv
e actions. Refer
to the tables to
check the patient monitor, identify and
eliminate these problems.
For more information
on troubleshooting,
contact Mindray After-
sales Service.
6.2 Part Replacement
Printed circuit boards (PCBs), major parts and components in the patient monitor are
replaceable. Once you isolate a PCB you suspect defective, follow the instructions in
8
Disassembly
and Repair
to replace the PCB
with a known good
one. V
erify proper operation and that
the patient
monitor passes all performance tests. If the fault is cleared, it indicates that
the original PCB
was damaged. Send the defective PCB
to us
for repair
. If the
trouble remains, exchange the
replacement PCB with the original suspicious PCB and continue troubleshooting as directed
in this chapter.
T
o obtain information on
replacement parts or order them,
refer to
8
Disassembly
and Repair
.
6.3 Patient Monitor Status Check
Some troubleshooting tasks may require you to identify the hardware version and status of
your patient monitor. T
o check the
status of your patient
monitor, follow this procedure:
1.
Select
[
Main Menu
]
→ [
Maintenance >>
]
→
[
Monitor Information >>
]. In the
displayed menu, you can check the system start time, self test
error and other status
information.
2.
Select
[
Main Menu
]
→ [
Maintenance >>
]
→ [
Factory Maintenance >>
] → enter the
required password →
[
Monitor Information >>
]. In the displayed menu, you can check
the monitor's current status.

Mindray uMEC10 Specifications

General

Resolution	800 x 600
ECG	3/5-lead ECG
EtCO2	Optional
Battery	Rechargeable lithium-ion
Battery Life	4 hours
Dimensions	110 mm
Alarm	Audible and visual alarms
Power Supply	AC 100-240V, 50/60Hz
Agent	No
O2	No
