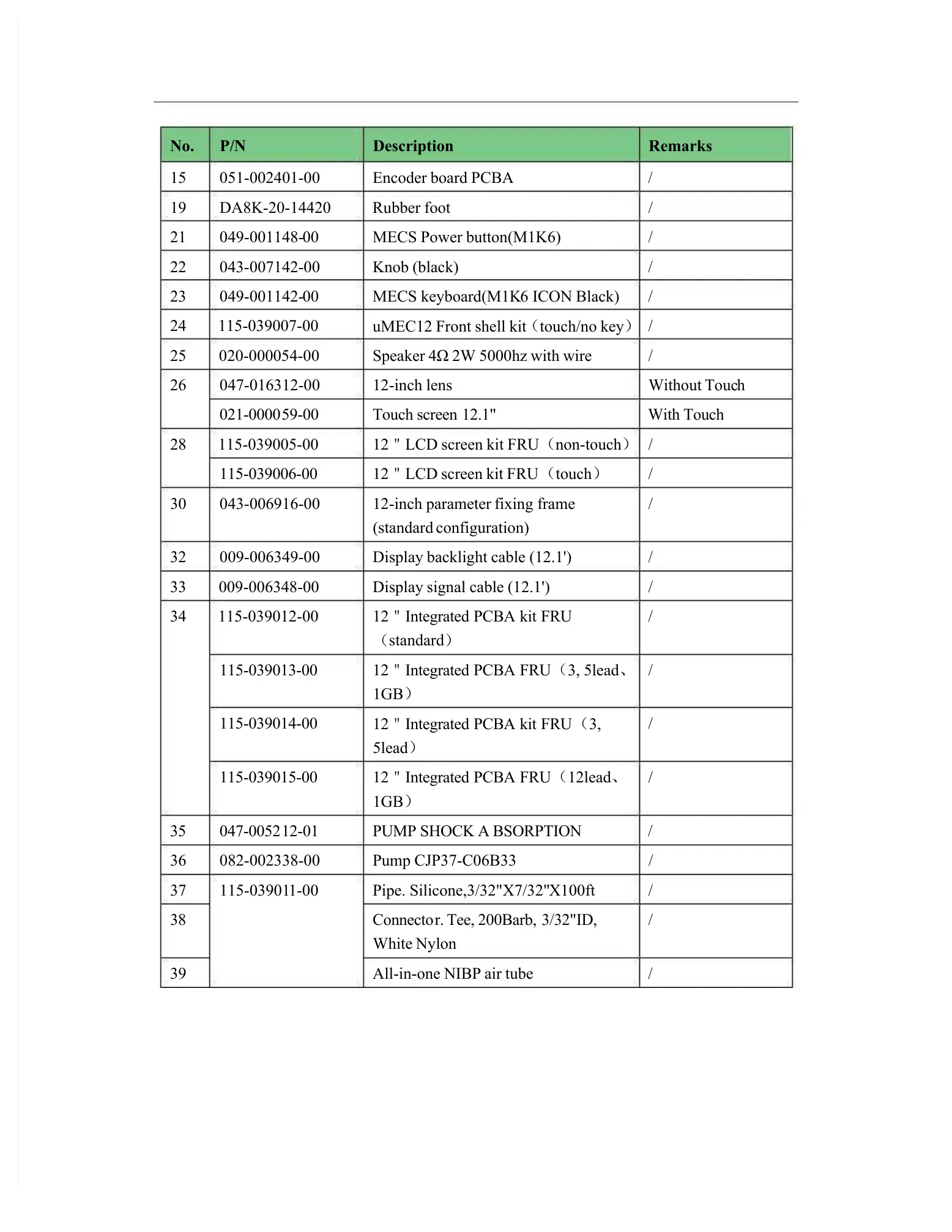

Mindray uMEC12 Service Manual

No.
P/N
Description
Remarks
15
051-002401-00
Encoder
board
PCBA
/
19
DA8K-20-14420
Rubber
foot
/
21
049-001148-
00
MECS
Power
button(M1K6)
/
22
043-007142-00
Knob
(black)
/
23
049-001142-
00
MECS
keyboard(M1K
6
ICON
Black)
/
24 115-039007-00
uMEC12 Front shell kit
（
touch/no key
）
/
25 020-000054-00
Speaker 4Ω 2W 5000hz with wire
/
26
047-016312-00
12-inch
lens
Without
Touc
h
021-0000
59-00
Touch
screen
12.1"
With
Touch
28 115-039005-00
12
＂
LCD screen kit FRU
（
non-touch
）
/
115-039006-00
12
＂
LCD screen kit FRU
（
touch
）
/
30
043-006916-00
12-inch
parameter
fixing
frame
(standard configuration)
/
32
009-006349-00
Display
backlight
cable
(12.1')
/
33 009-006348-00
Display
signal
cable
(12.1')
/
34 115-039012-00
12
＂
Integrated PCBA kit FRU
（
standard
）
/
115-039013-00
12
＂
Integrated PCBA FRU
（
3, 5lead
、
1GB
）
/
115-039014-00
12
＂
Integrated PCBA kit FRU
（
3,
5lead
）
/
115-039015-00
12
＂
Integrated PCBA FRU
（
12lead
、
1GB
）
/
35
047-0052
12-01
PUMP
SHOCK
A
BSORPTION
/
36
082-002338-00
Pump
CJP37-C06B33
/
37
115-03901
1-00
Pipe.
Silicone,3/32"X7/32"
X100ft
/
38
Connecto
r.
Tee,
200Barb,
3/32"ID,
White Nylon
/
39
All-in-one
NIBP
air
tube
/

Mindray uMEC12 Specifications

General

Type	Patient Monitor
Display	12.1-inch color TFT
ECG	3-lead
SpO2	Yes
NIBP	Yes
Respiration	Yes
Temperature	Yes
Battery	Rechargeable lithium-ion
Networking	Ethernet
Parameters	ECG, SpO2, NIBP, Respiration, Temperature
Connectivity	Ethernet
Battery Life	Up to 4 hours
Power Supply	100-240 VAC, 50/60 Hz
