System Overview 2-7
No.
Name
Function
1
Probe holder
Used to place the probe
2
Display
Displays the image and parameters during scanning
3
Control Panel
Refer to 2.6.3 Control Panel
4
USB ports
Used to connect USB devices
5
Handle
Used to carry the machine
6
I/O Panel
Interface panel used for inputting and outputting signals, refer
to 2.6.1 I/O Panel.
7
Power supply panel
Electrical port panel, refer to 2.6.2 Power Supply Panel.
8
Probe ports
Used to connect the probe
9
Battery cover
Used to hold the battery

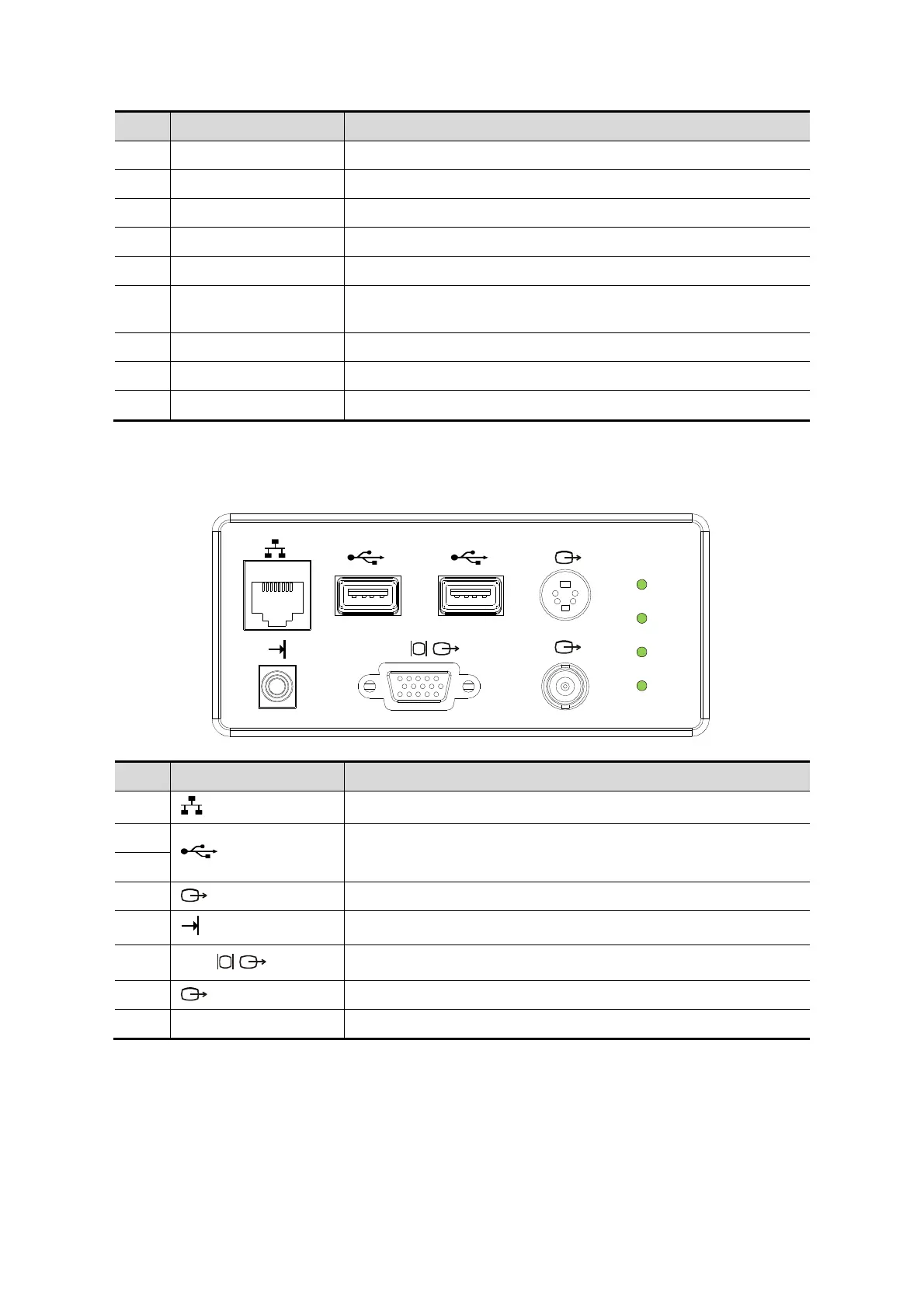

2.6.1 I/O Panel
<2> <3> <4>
<1>
<5> <6> <7>
VGA
12V
5V
3.3V
A
<8>
No.
Symbol
Function
1
Network port
2
USB ports
3
4
Separate video output, connecting video printer or LCD
5
Remote control port
6
VGA
VGA signal output
7
Composite video output
8
/
Power indicator
