7-32 Structure and Assembly/Disassembly

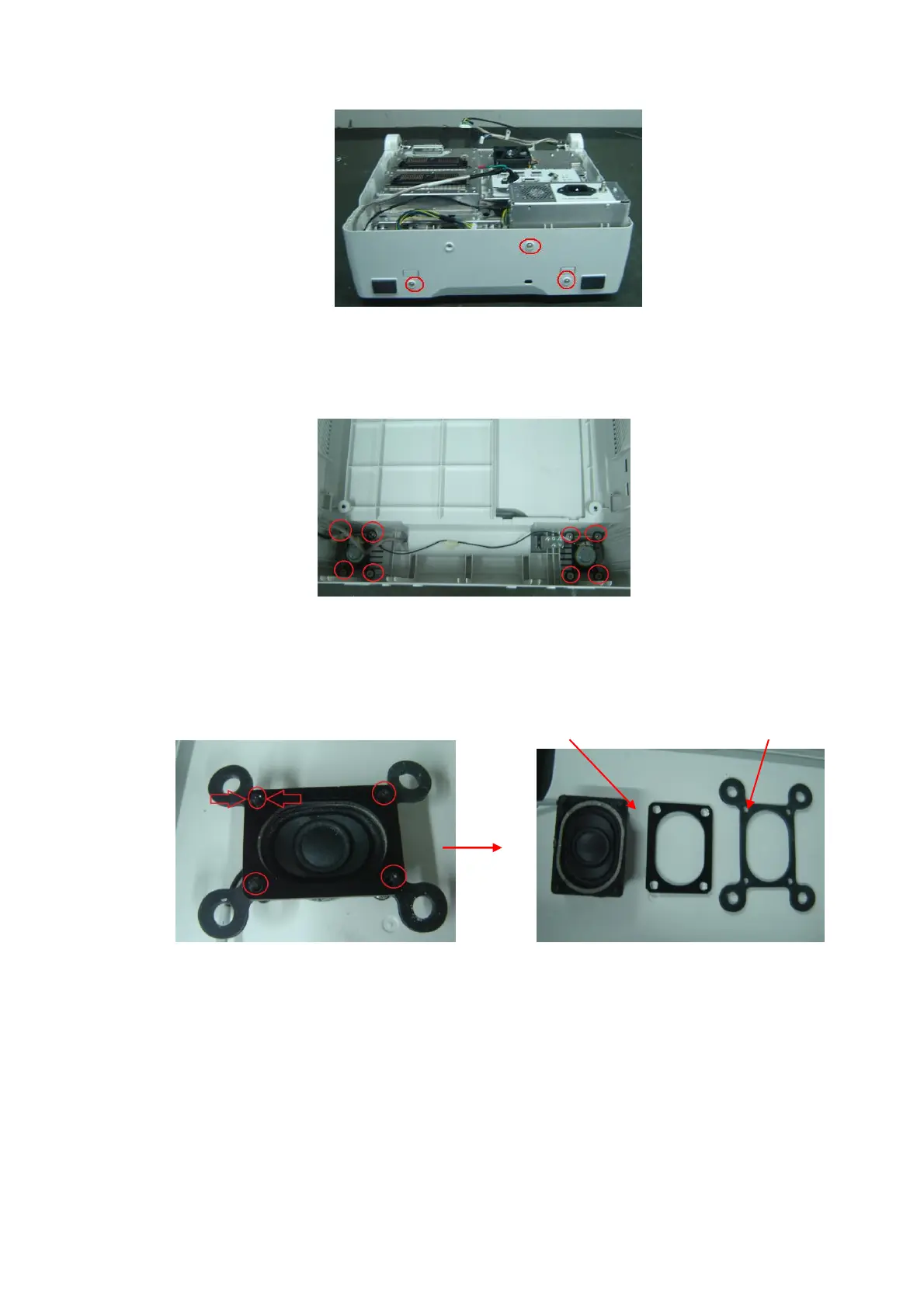

Figure 7-56 Disassembly of Speaker (5)
7. Remove 4 ST2.6X10 screws used to fix the speaker, and then take out the speaker.
8. As shown in the figure, remove 8 PT2.6X6 cross countersunk head self-tapping screws used
to fix the speaker and then take out the speaker assembly.
图 7-57 Disassembly of Speaker (6)
9. As shown by arrow in the figure, extrude the buckle of spring screw (as shown in red circle)
inward, take the pressing board of speaker first, then you can remove the reducing libration
mat.
图 7-58 Disassembly of Speaker (7)
10. As shown by arrow in the figure, extrude the buckle of spring screw (as shown in red circle)
inward, remove 4 spring screws, the left is speaker.
