Minelab F3Ci Service Manual

F3Ci Service Manual
_______________________________________________________________________________________________________________________
27
•

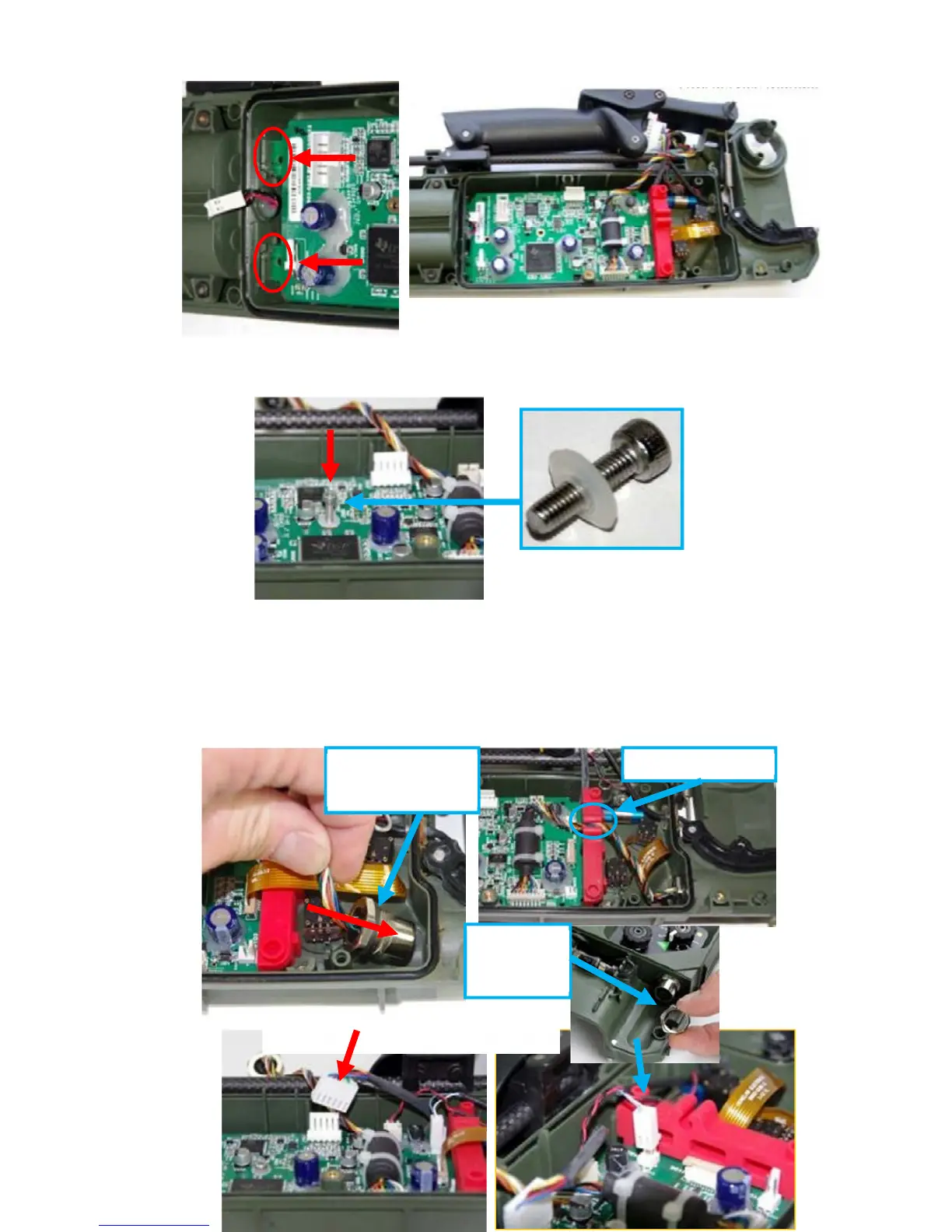

Fit the PCB screw as shown in Figure 38.
• Position the coil connector ensuring the connector has a clean and correctly
positioned O-ring as shown in Figure 39.
• Fit coil cable into cable router. Turn the detector over and fit the nut (18mm) to the
Coil Socket.
Figure 37: Fitting Main PCB
Figure 39: Coil Connector
Figure 38: PCB Screw
O-Ring in place on
C
oil Connector
Coi
l Cable Router
Coil Socket
N
ut
