Fit the hinge cover making sure the protrusion on the underside of the hinge cover
engages into the slot on the detector body near the hinge. Fit the two screws
(45mm) into the hinge cover and tighten.
•
•
•
•
•
•
•
•
c.
The coil has now been fitted to the detector. Check the assembly and all moving parts.
Insert batteries and then carry out mechanical & functional testing as described in Section 2 -
Mechanical & Functional Testing.

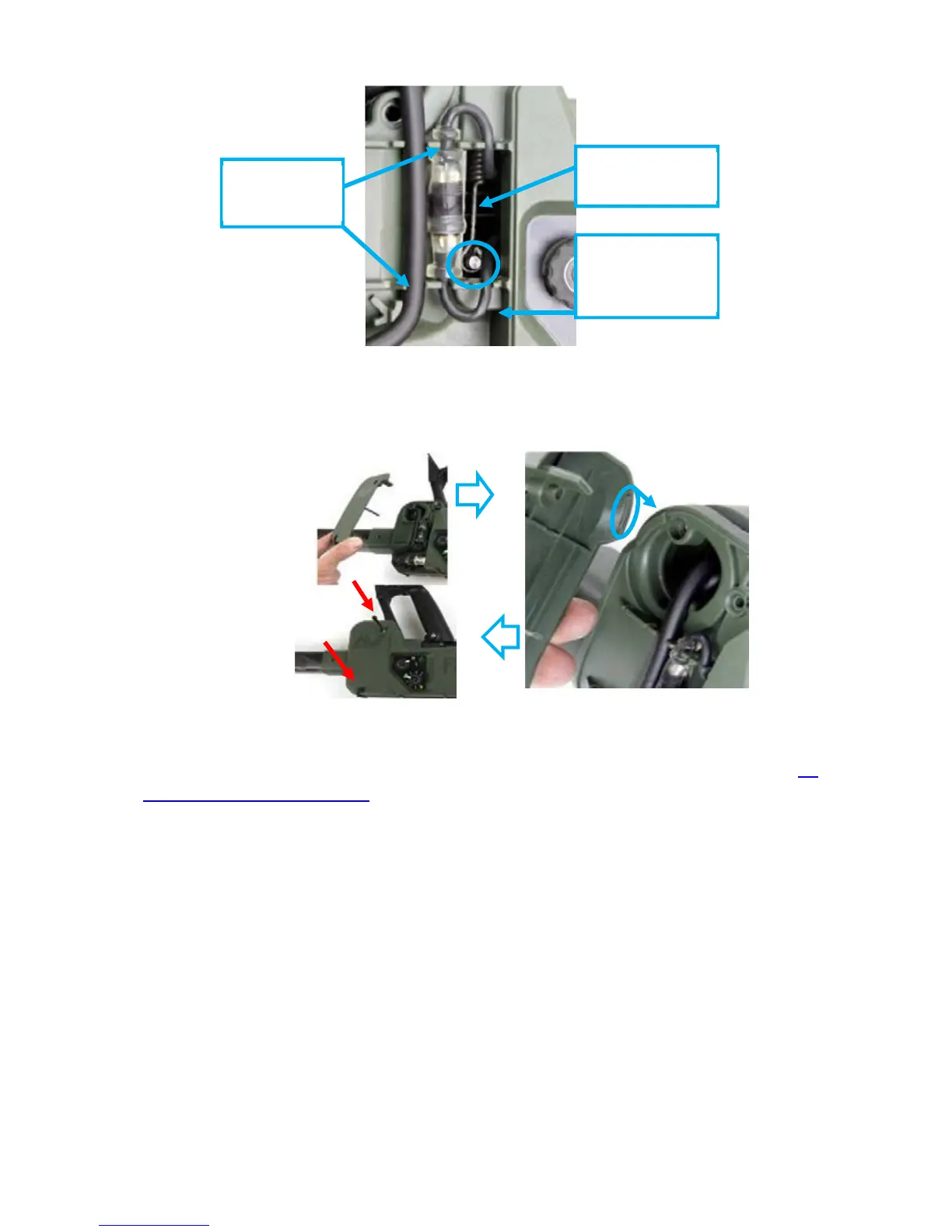

Figure 68: Fitting Hinge Cover
