10 11Assembly

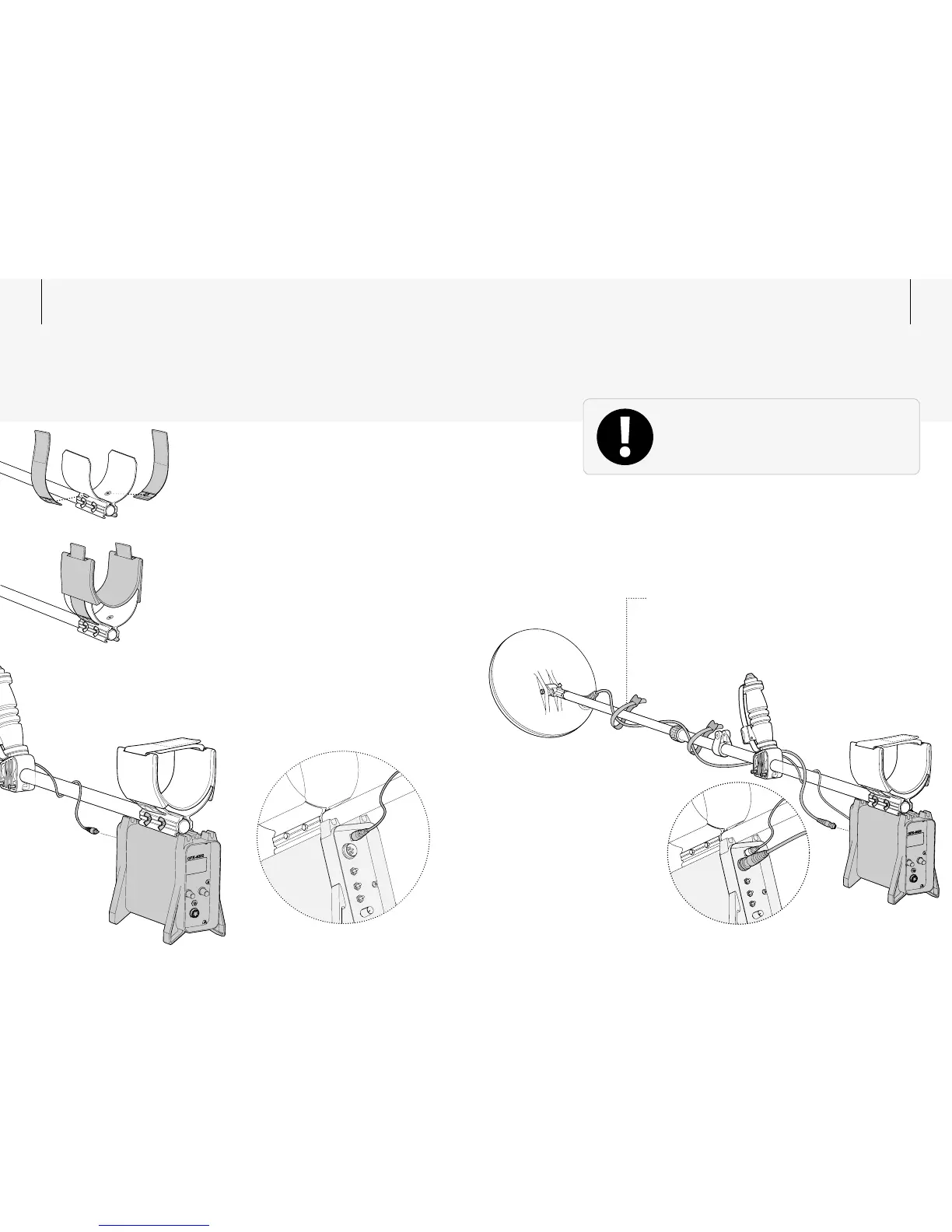

Connecting the Coil Cable:
1 Wind the coil cable around the lower and upper
shafts enough times to take up the slack. Leave
enough slack at the bottom of the cable near the
coil to allow the angle of the coil to be adjusted
while detecting.
2 Use the Velcro straps to keep the coil cable in
place against the shaft.
3 Plug the coil connector into the coil socket on the
control box, firmly tightening the retaining ring to
hold it in place.
Attaching the Armrest Strap to the Armrest:
1 Press both strap studs onto the armrest studs.
2 Push the armrest straps through the slots in the
armrest cover and then push the cover over the
armrest.
Connecting the Control Box to the Upper Shaft:
1 Place the detector on a flat surface, with the
handle facing upwards.
2 Position the armrest on top of the control box.
3 Clip the control box onto the armrest, ensuring
that the battery plug faces the rear.
4 Fasten with the wing-nuts.
5 Wind the Quick-Trak button cable around the
upper shaft and plug it into the Smart Point
socket in the control box. Ensure that the cable is
wrapped firmly, but avoid strain on the connector.
If the Quick-Trak cable
becomes loose, try securing
it onto the shaft with
electrical tape.
Always ensure that the control box is turned
off before connecting or disconnecting the coil
to avoid damage to the detector's electronics.
