ARMREST ASSEMBLY
Place the armrest onto the top of the upper
shaft, lining up the central hole in the
armrest with a hole in the aluminium shaft.
Position the armrest to suit your arm length.
(Holding the Detector, p. 16)
Insert the screw up through the stand,
upper shaft and armrest. Tighten the
screw, being careful not to overtighten and
damage the thread.
With the velcro side facing upwards, thread
the armrest strap through both slots in the
armrest. Ensure the end of the strap will be
fastened outwards from your arm.
The X‑TERRA is designed to be used in
both the left and right hand.

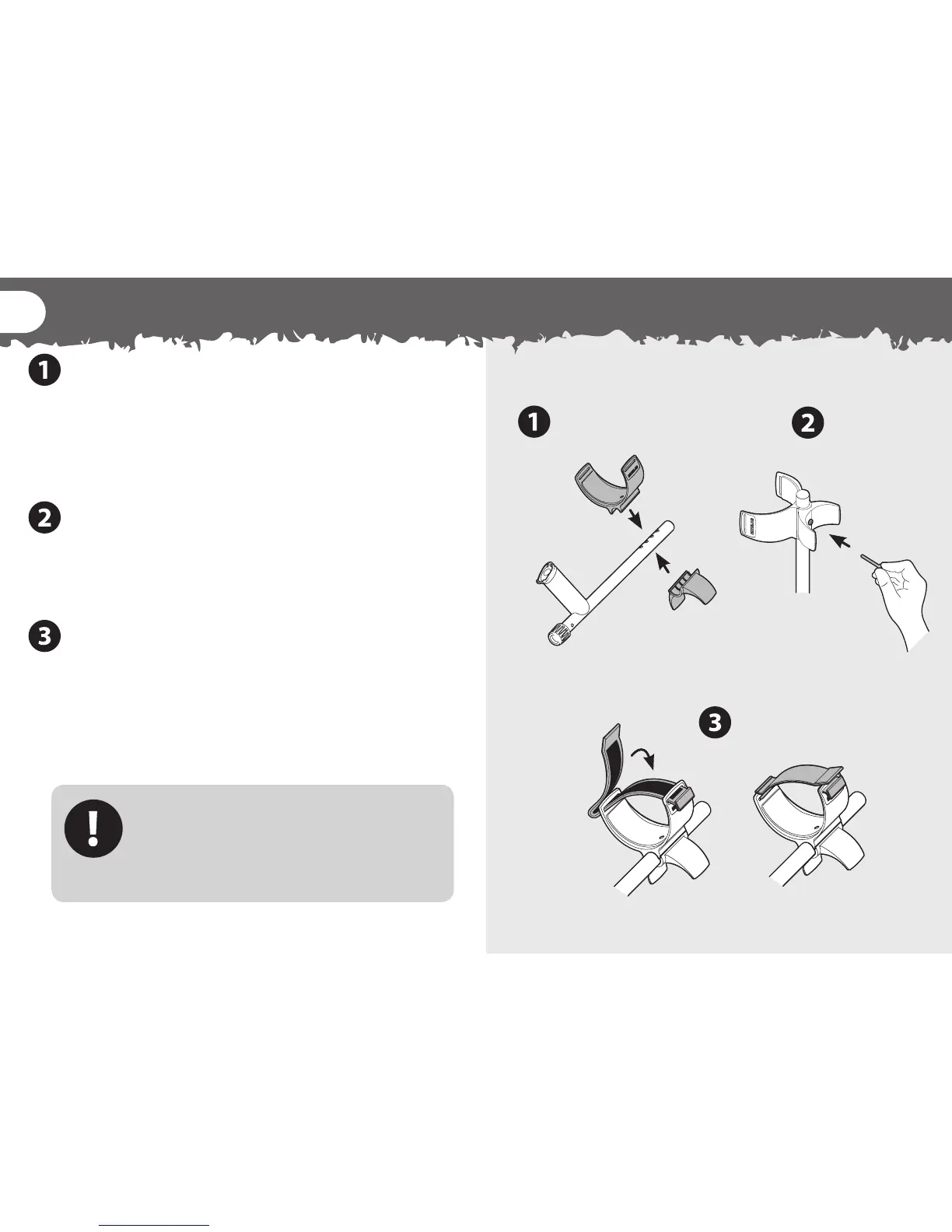

This diagram shows the velcro strap
threaded outwards for the left arm.
