Minelab X-Terra 505 User Manual

13

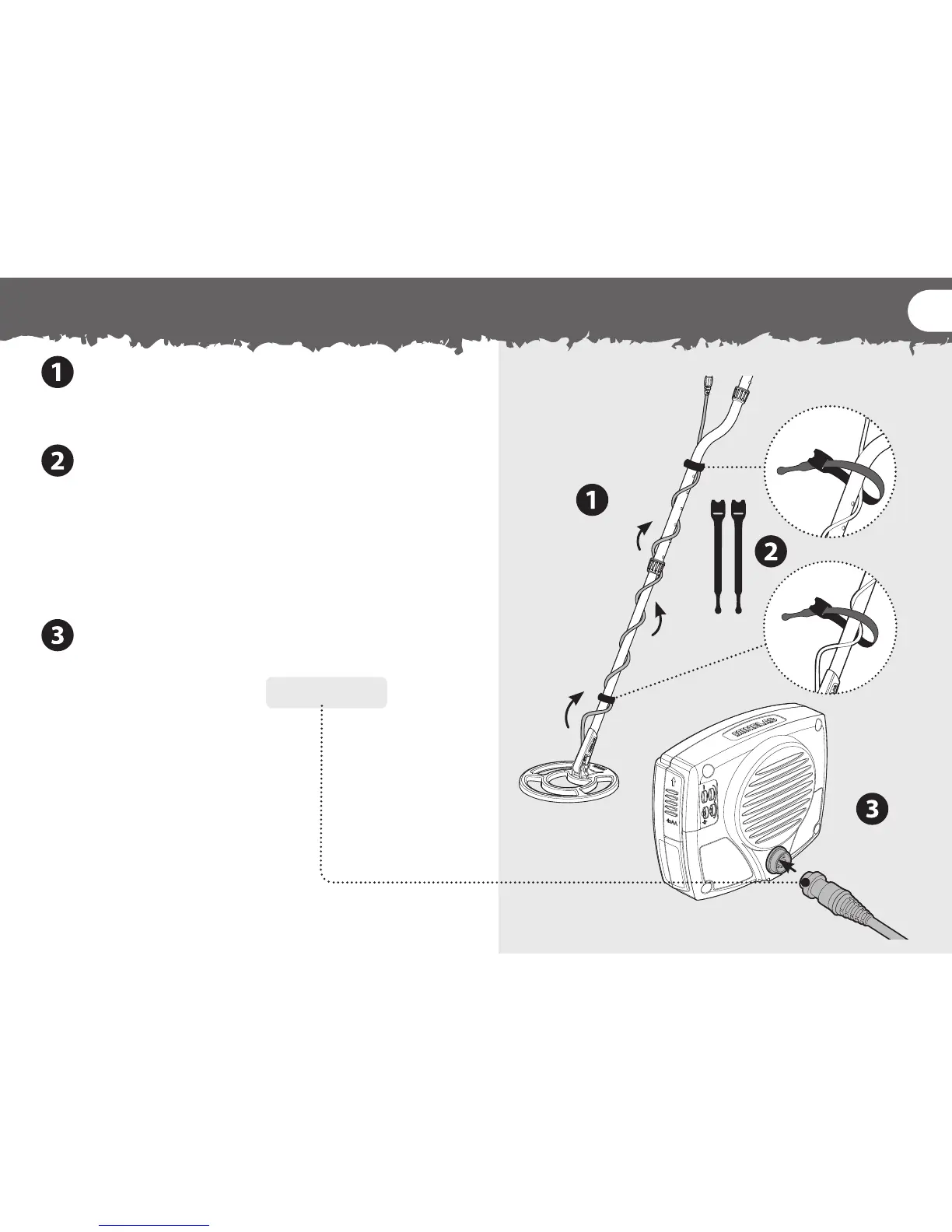

Wind the coil cable around the lower
and middle shaft enough times to take
up the slack.
Use the velcro tabs to keep the coil cable in
place against the shaft. It is recommended
that one tab is used on the lower shaft close
to the coil and the other tab on the middle
shaft before the cable reaches across to the
control box.
Align the coil plug and connect into the
socket in the back of the control box,
lightly tightening the retaining ring to
hold it in place.
COIL CABLE ASSEMBLY
