MINN KOTA FORTREX Installation Instructions

14 | minnkotamotors.com
©2018 Johnson Outdoors Marine Electronics, Inc.

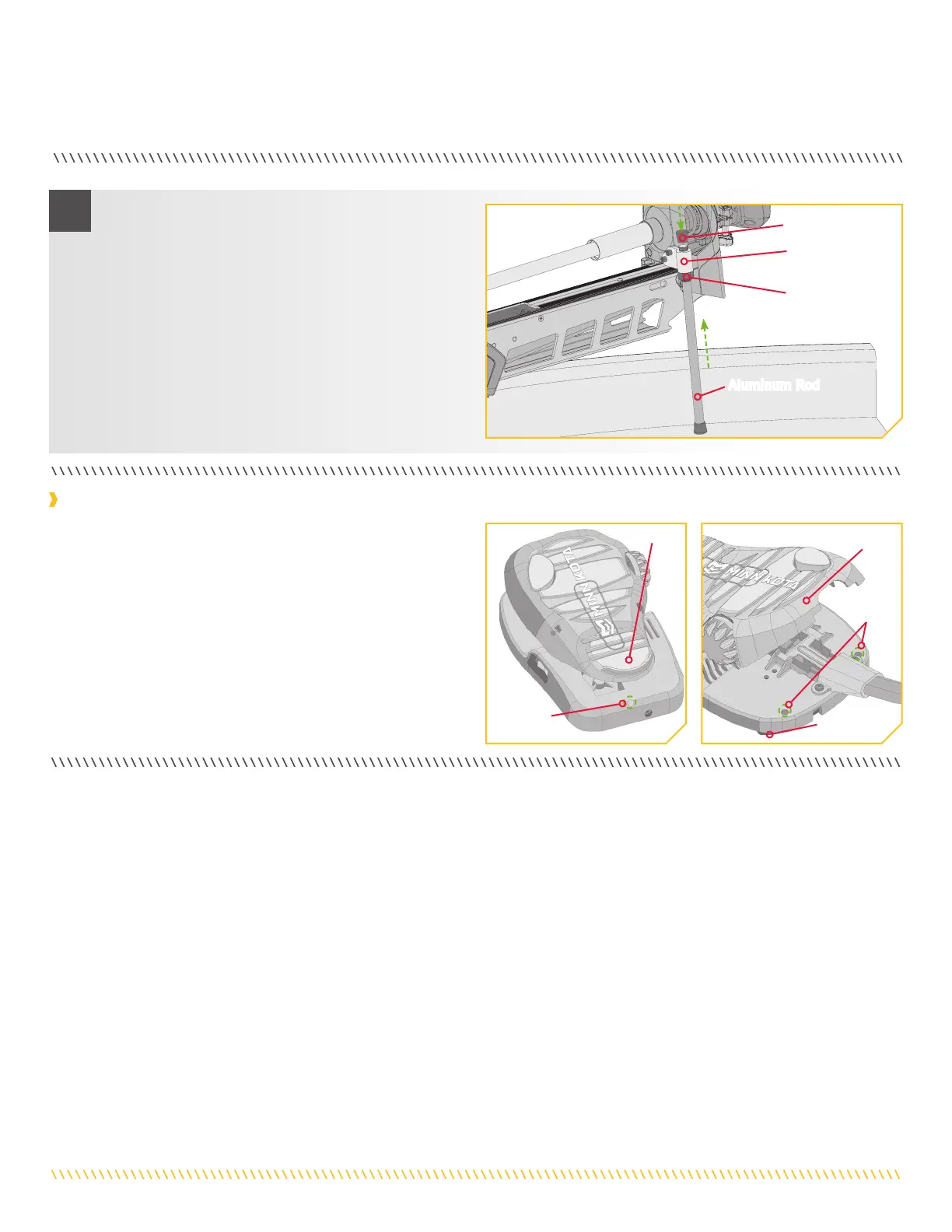

MOUNTING THE FOOT PEDAL
k. Once in the correct position, tighten the Jam Nut
upwards against the Stabilizer Bracket. This will
prevent the Aluminum Rod from turning.
l. Install the Top Bumper if there are threads exposed
on the Aluminum Rod above the Stabilizer Bracket.
5
Stabilizer
Bracket
Jam Nut
Top Bumper
Aluminum Rod
We recommend securing the Foot Pedal to the boat deck to
prevent it from being damaged during transport and to make
motor operation more efficient. It is recommended to use the
Mounting Holes on the Foot Pedal for a secure mount. The Foot
Pedal has three Mounting Holes. One Mounting Hole is located
under the Heel End of the Foot Pedal. The other two are located
under the Toe End of the Foot Pedal. We recommend using a
1/8" or 3/16" diameter screw and only tighten enough to slightly
compress the Bumper Pads underneath the Foot Pedal.
Toe End
Heel End
Mounting
Holes
Bumper Pad
Mounting
Hole
Mounting the Foot Pedal

MINN KOTA FORTREX Specifications

General

Thrust	80 lbs
Shaft Length	45 inches
Max Amp Draw	56 Amps
Speed Control	Variable
Blade Material	Composite
Motor Technology	Digital Maximizer
Voltage	24V
Control Type	Cable Steer Foot Pedal
Mount Type	Bow
Type	Trolling Motor
Battery Requirement	2 or 3 deep-cycle batteries
Warranty	2 years
