MINN KOTA FORTREX Installation Instructions

minnkotamotors.com | 21
©2018 Johnson Outdoors Marine Electronics, Inc.

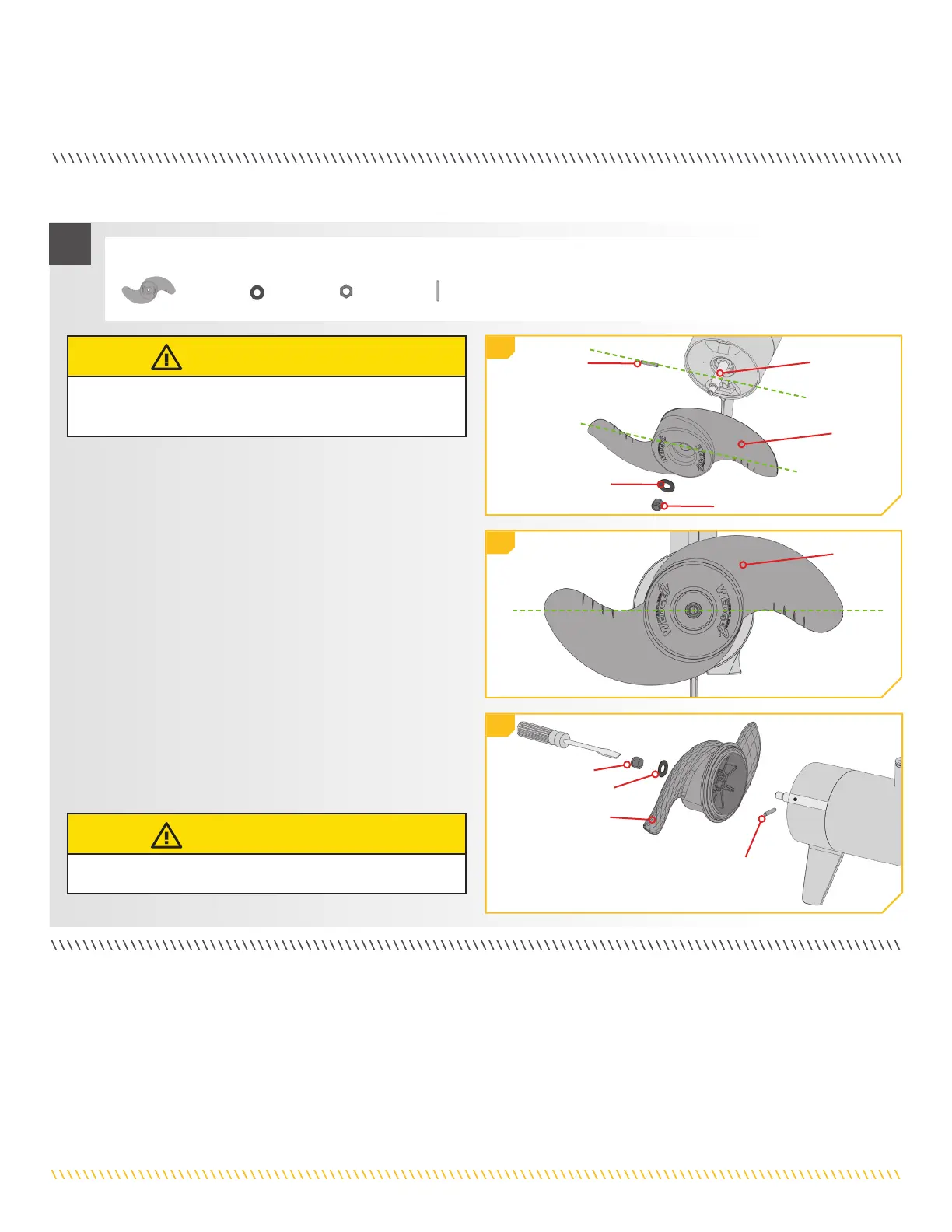

INSTALLING THE PROP
a. Take the Drive Pin (Item #10) and slide it through
the Hole in the Armature Shaft. Position the Drive
Pin horizontal by grasping the Armature Shaft and
rotating it with the Drive Pin in place.
b. Align the Propeller (Item #7) so it is also horizontal
and parallel with the Drive Pin. Slide the Propeller
onto the Armature Shaft and Drive Pin until it is
seated against the lower unit.
c. Install the Prop Washer (Item #8) and the Prop Nut
(Item #9) onto the end of the Armature Shaft.
d. Holding the end of the Armature Shaft with a Flat
Blade Screwdriver, tighten the Prop Nut with a
9/16" Open End Wrench.
e. Tighten the Prop Nut 1/4 turn past snug to
25-35 in-lbs.
Propeller
Propeller
Prop Nut
Prop Washer
Drive Pin
Propeller
Prop Nut
Prop Washer
Drive Pin
Armature
Shaft
1
CAUTION
Disconnect the motor from the battery before beginning any
prop work.
CAUTION
Do not over tighten as this can damage the prop.
ITEM(S) NEEDED
1a
1b
1d
INSTALLING THE PROP
#10 x 1#9 x 1
#8 x 1
#7 x 1

MINN KOTA FORTREX Specifications

General

Thrust	80 lbs
Shaft Length	45 inches
Max Amp Draw	56 Amps
Speed Control	Variable
Blade Material	Composite
Motor Technology	Digital Maximizer
Voltage	24V
Control Type	Cable Steer Foot Pedal
Mount Type	Bow
Type	Trolling Motor
Battery Requirement	2 or 3 deep-cycle batteries
Warranty	2 years
