6 | minnkotamotors.com
©2018 Johnson Outdoors Marine Electronics, Inc.
ASSEMBLY OF MOTOR TO MOUNT
• #2 Phillips Screwdriver
• (2) #3 Phillips Screwdriver
• 1/4" Allen Wrench
• Drill
• 9/32" Drill Bit
• 7/16" Box End Wrench
• A person to help with
installation
• Torque Wrench
• File or Sandpaper
• Hack Saw
• Marker or Pencil
• 1/8" Flat Screwdriver
• 1/8" Allen Wrench
• Loctite

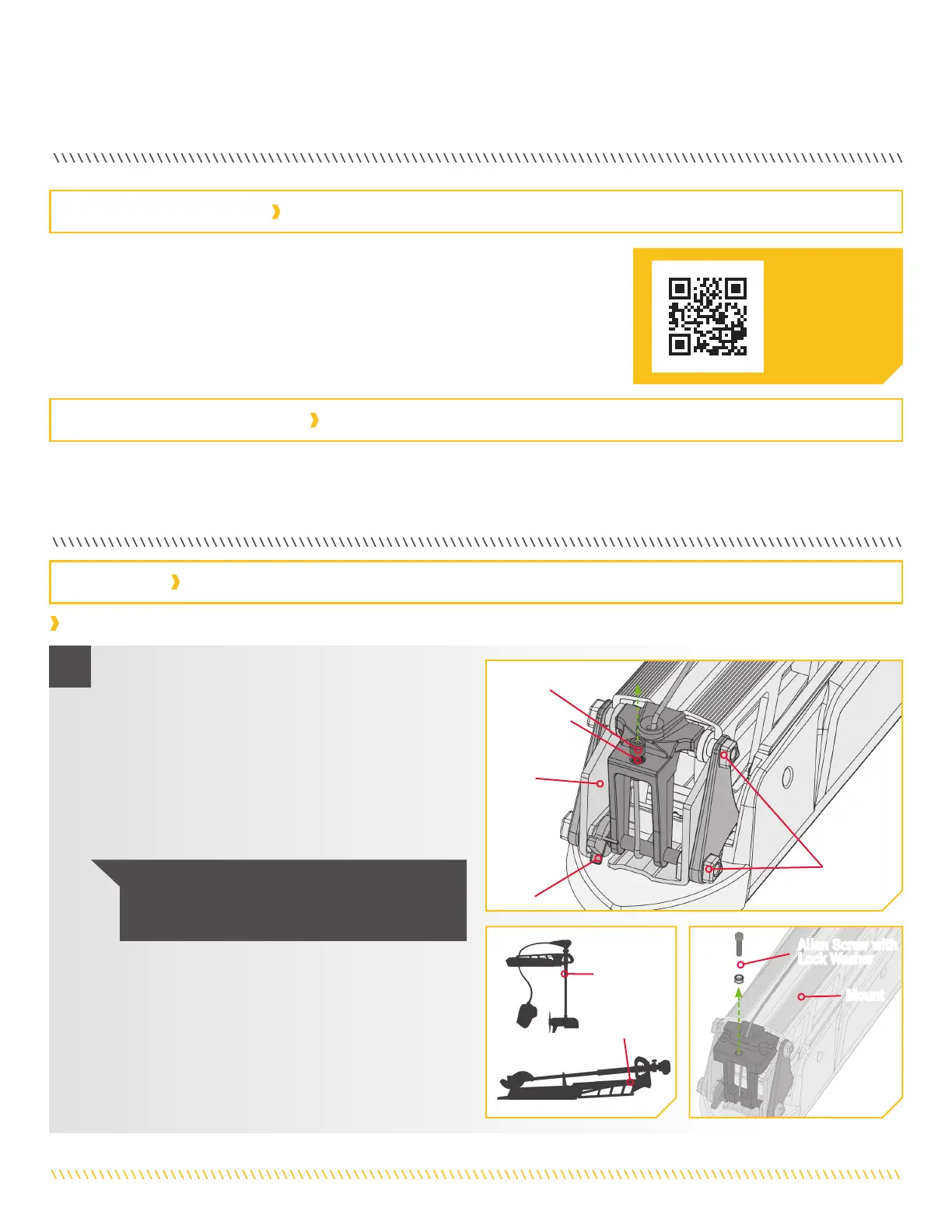

a. Place the Mount on an elevated, level surface such
as a workbench or the tailgate of a pickup. The
Mount, as removed from the box, should be in the
deployed position.
b. Remove the 5/16" Allen Screw and Lock Washer
from the Mount using the 1/4" Allen Wrench. The
5/16" Allen Screw is located on the opposite end
of the mount from the hinge that opens and closes
when the mount is stowed and deployed.
It is recommended that the motor be mounted as close to the keel or centerline of the boat
as possible. Make sure the area under the mounting location is clear to drill holes and install
nuts and washers. Make sure the motor rest is positioned far enough beyond the edge of the
boat. The motor must not encounter any obstructions as it is lowered into the water or raised
into the boat when stowed and deployed. Consider a quick release or adapter bracket with the
installation of your motor. To view a list of accessories, please visit minnkotamotors.com.
Assembly of Motor to Mount
Allen Screw with
Lock Washer
Mount
Deployed
Stowed
View accessories
available for your
trolling motor at
minnkotamotors.com.
MOUNTING CONSIDERATIONS
TOOLS AND RESOURCES REQUIRED
INSTALLATION
1
NOTICE: This motor weighs approximately 55 lbs.
We recommend having a second person help with
the installation.
End Links
Allen Screw
Safety
Latch
Lock Washer
Mount
To Next Page
