MINN KOTA FORTREX Installation Instructions

16 | minnkotamotors.com
©2018 Johnson Outdoors Marine Electronics, Inc.

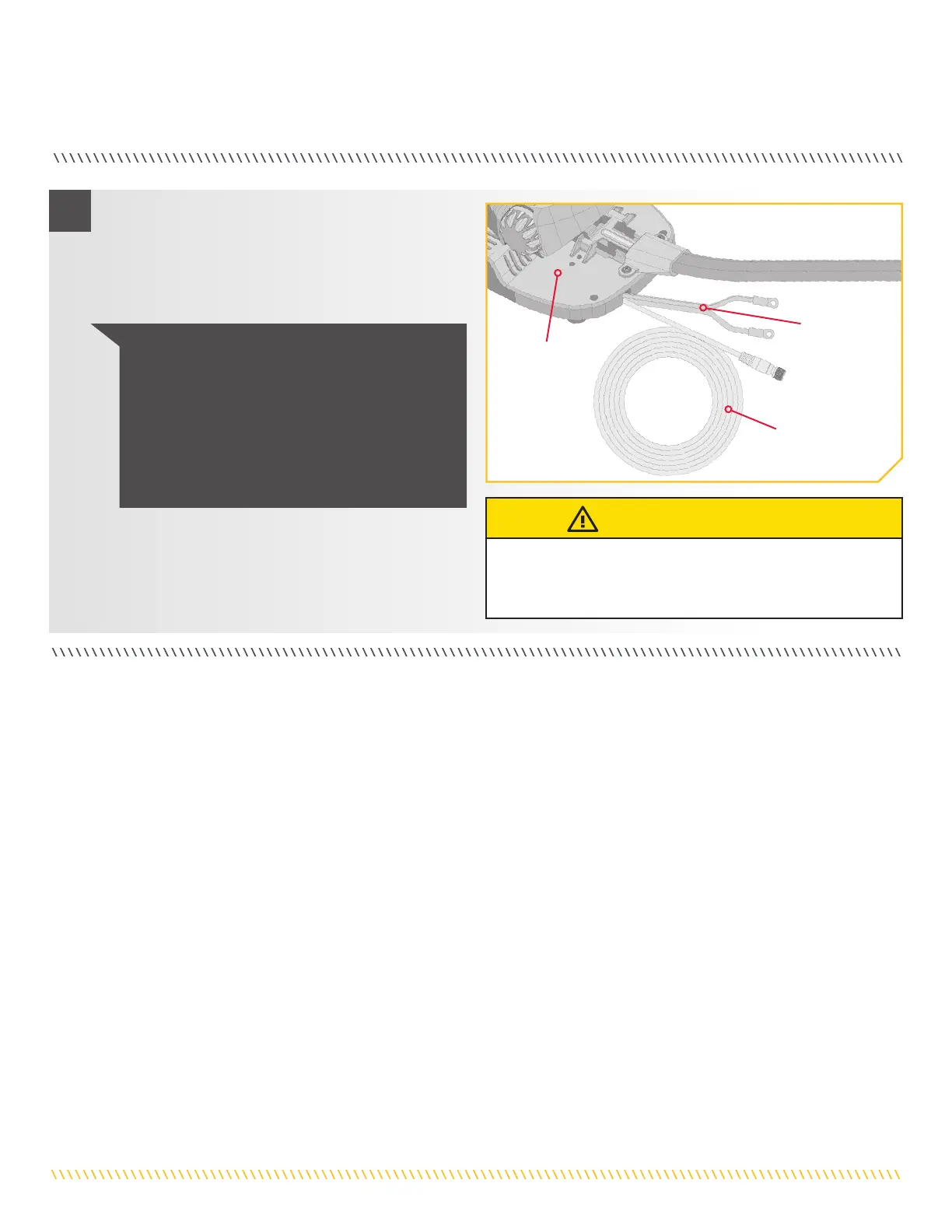

ROUTING CONNECTION CABLES
b. Identify where the Built-in MEGA Down Imaging or
Universal Sonar Cable needs to be connected and
route along an established routing system in your
boat.
c. Use cable ties to loosely secure cables if needed.
2
CAUTION
Improperly securing the Connection Cables may cause damage
to the product and void your product warranty. Do not over
tighten the cable ties as it may damage the wires.
NOTICE: After the cable(s) exit(s) the Foot
Pedal, it should be routed through an established
routing system on the boat, in an area with minimal
interference. Power cables or other elements that may
produce interference for the sonar signals. Inspect
the selected route carefully to ensure that there are
no sharp edges, obstacles, or obstructions that may
damage the cables.
Power Cables
Foot Pedal
Built-in MEGA
Down Imaging or
Universal Sonar

MINN KOTA FORTREX Specifications

General

Thrust	80 lbs
Shaft Length	45 inches
Max Amp Draw	56 Amps
Speed Control	Variable
Blade Material	Composite
Motor Technology	Digital Maximizer
Voltage	24V
Control Type	Cable Steer Foot Pedal
Mount Type	Bow
Type	Trolling Motor
Battery Requirement	2 or 3 deep-cycle batteries
Warranty	2 years
