13

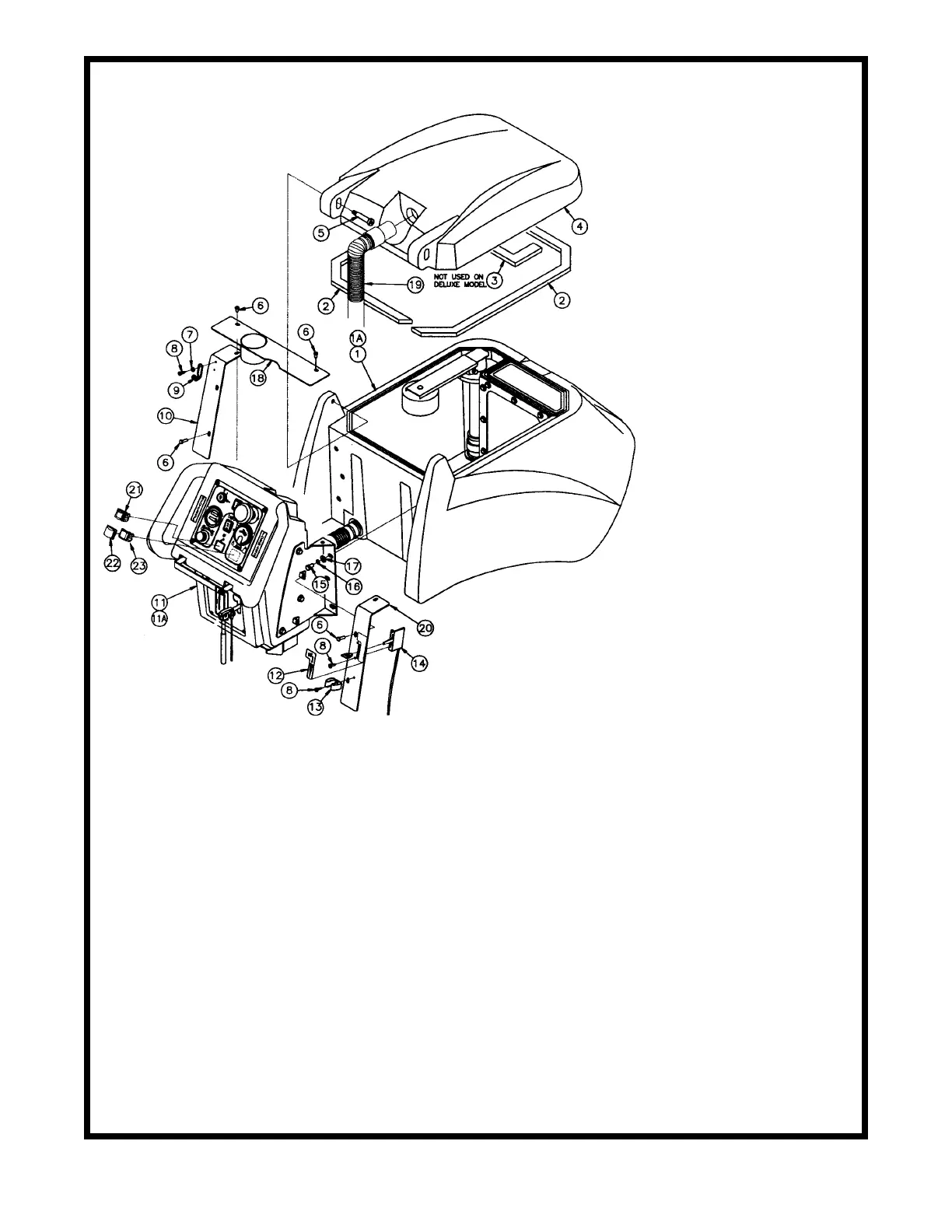

UPPER ASSEMBLY
Parts List
Item Part No. Qty. Description
1 200160 1 Tank Assembly
1A 200275 1 Tank Assy. - Deluxe
2 200178 2 Gasket, Lid
3 200136 1 Gasket, Solution Lid
4 200103 1 Tank Lid
5 712120 2 Shoulder Bolt 1/2 x 2
6 710178 6 SCR-MC 1/4-20 x 1/2
7 711503 2 WSR-Flat #10
8 711125 5 SCR-ST-B #10 x 1/2
9 760286 1 Wire Formed Hook
10 200176 1 Dump Hose Bracket
11 200180 1 Console Assy. TD/Deluxe
11A 200170 1 Console Assy. - Brush Drive
12 715284 1 Decal, Solution Control
13 383367 1 Spring Clip
14 430053 1 Solution Control Cable
15 711228 6 Bolt-HH 5/16-18 x 3/4
16 711545 6 WSR-Helical 5/16
17 711575 6 WSR-Flat 5/16
18 200032 1 Console Back Cover Weldment
19 450054 1 Vacuum Recovery Hose
20 200152 1 Solution Control Bracket
Deluxe Model Only
21 740711CE 1 Switch Dreefs w/Splashguards
22 740811 1 Switch Boot
23 740800CE 1 Switch Momentary
